GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

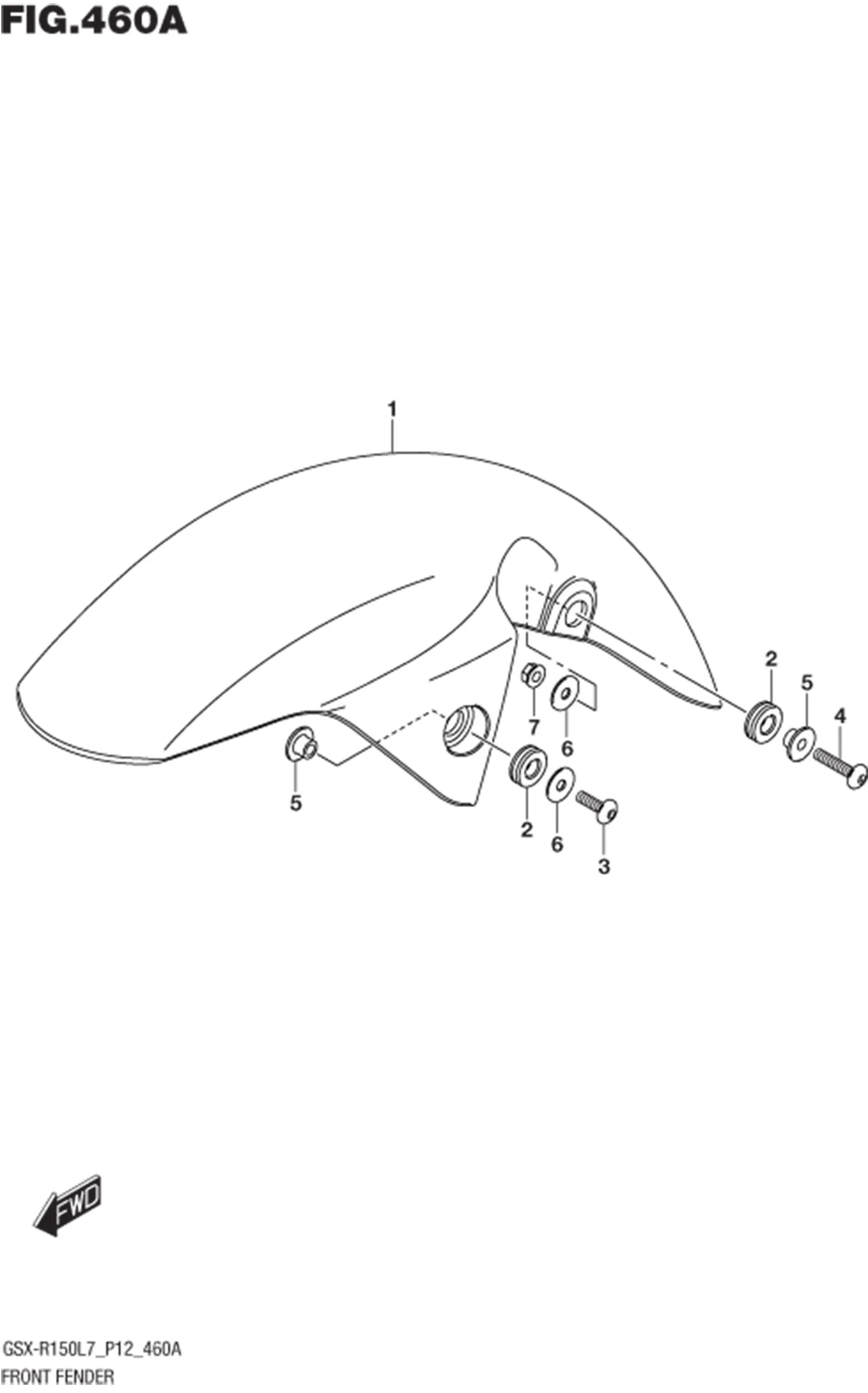

FIG.460A (1-F-5) FRONT FENDER

FIG.460A (1-F-5) FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	53111-23K00-YVU	FENDER, FRONT (BLACK)	1	Rp152.000
	47161-23J00-000	CHUSION, FRONT FENDER	4	Rp4.000
	53121-23K00-000	SCREW, FRONT FENDER FR	2	Rp7.000
	53122-23K00-000	SCREW, FRONT FENDER RR	2	Rp7.000
	53275-34J00-000	SPACER, FRONT FENDER	4	Rp5.500
	09160-06027-000 SUB: 09160-06060-000	WASHER	4	Rp6.500
	09159-10060-000		6	Rp14.000
	01551-0816C-000 SUB: 01551-08163-000		4	Rp13.500
4	08316-1006A-000	NUT	3	Rp2.000
10	09409-10302-5PK	CLIP	2	Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
