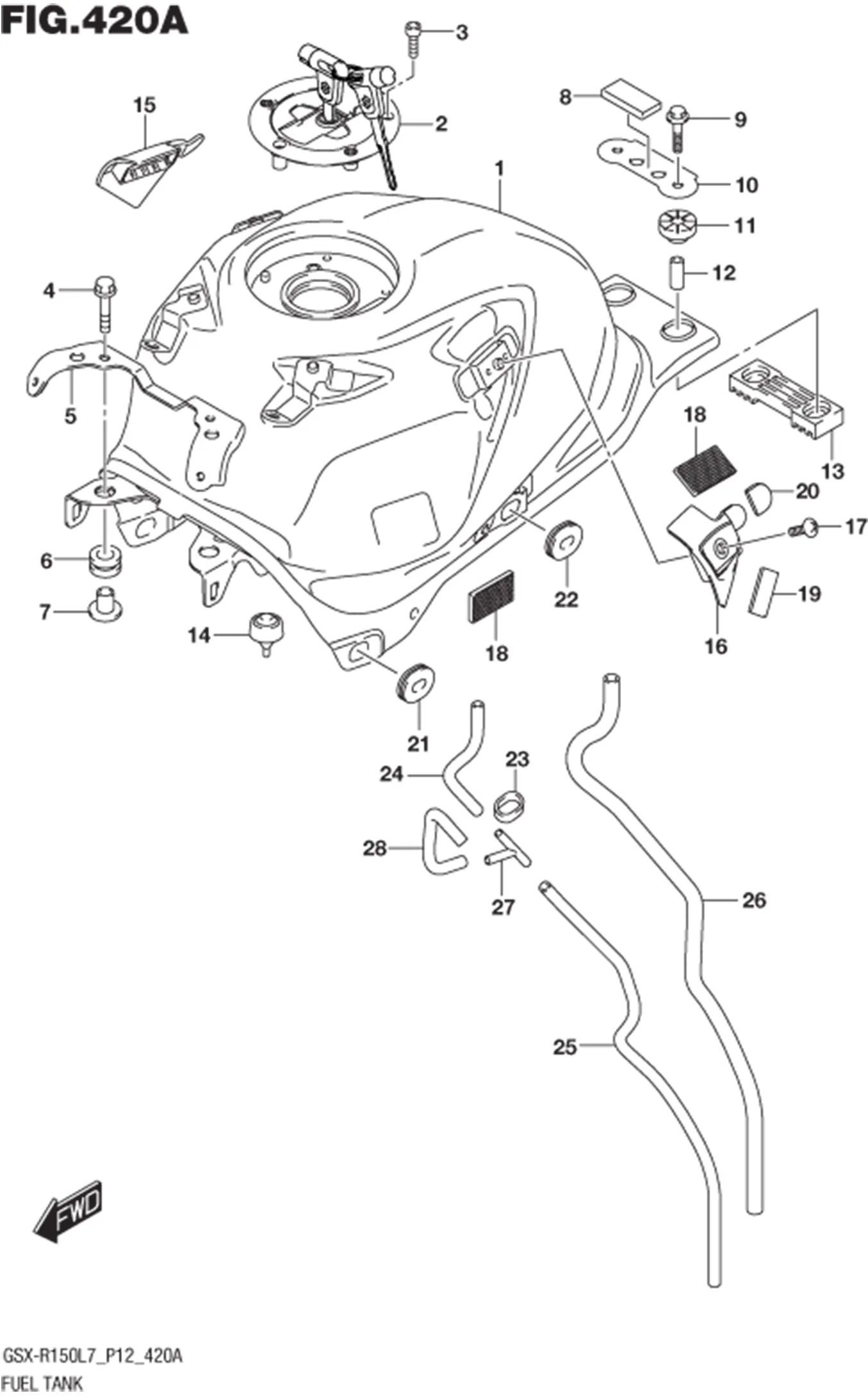

FIG.420A (1-D-6) FUEL TANK

FIG.420A (1-D-6) FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
44200-23870-000 CAP SET, FUEL TANK 1 Rp426.000
44424-23K50-000
SUB: 44424-23K10-000		 HOSE, FUEL TANK BRTHR NO.3 1 Rp7.000
09367-06007-000 3WAY 1 Rp30.500
09352-70L05-650 HOSE (7X11X650) 1 Rp15.000
09352-50823-480 HOSE (5X8.2X480) 1 Rp8.000
09352-50823-160 HOSE (5X8.2X160) 1 Rp4.500
09352-12163-010 HOSE, BRTHR CLAMP 1 Rp4.500
94478-14J00-000 CUSHION, FUEL TANK LOWER RR 2 Rp4.000
94478-14J00-000 CUSHION, FUEL TANK LOWER FR 2 Rp4.000
44294-23K00-000 CUSHION, FUEL TANK COVER REAR 2 Rp4.500
44183-23K00-000 CUSHION, FUEL TANK SIDE COVER 2 Rp6.500
44572-13G00-000 FASTENER, FUEL TANK 4 Rp64.500
02142-0610A-000 SCREW 2 Rp3.500
44189-23KA0-000 BRACKET, FUEL TANK COVER LH 1 Rp22.500
44179-23KA0-000 BRACKET, FUEL TANK COVER RH 1 Rp22.500
44542-23K00-000 CUSHION, FUEL TANK SIDE 2 Rp4.500
44542-23K10-000 CUSHION, FUEL TANK REAR LOWER 2 Rp9.500
44544-05J00-000 SPACER, FUEL TANK REAR 2 Rp7.000
44541-23K00-000 CUSHION, FUEL TANK RR UPPER 2 Rp9.500
44146-23K00-000 WASHER, FUEL TANK REAR BRKT 1 Rp4.500
44542-48H01-000
SUB: 44542-48H00-000		 CUSHION, FUEL TANK REAR BRKT 1 Rp7.500
44512-16G00-000 SPACER, FUEL TANK FRONT 2 Rp52.000
44511-16G01-000
SUB: 44511-16G00-000		 CUSHION, FUEL TANK FRONT 2 Rp7.500
47130-23KA0-000 BRACKET, FRM FR INR COVER 1 Rp15.000
09106-05017-000 BOLT (5X20) 3 Rp18.000
44110-23K00-YZE TANK ASSY, FUEL (RED) 1 Rp1.912.500
15 09383M13004-000
SUB: 09383-13003-000		 E RING 6 Rp7.000
30 01550-0635A-000
SUB: 01550B0635AN000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
