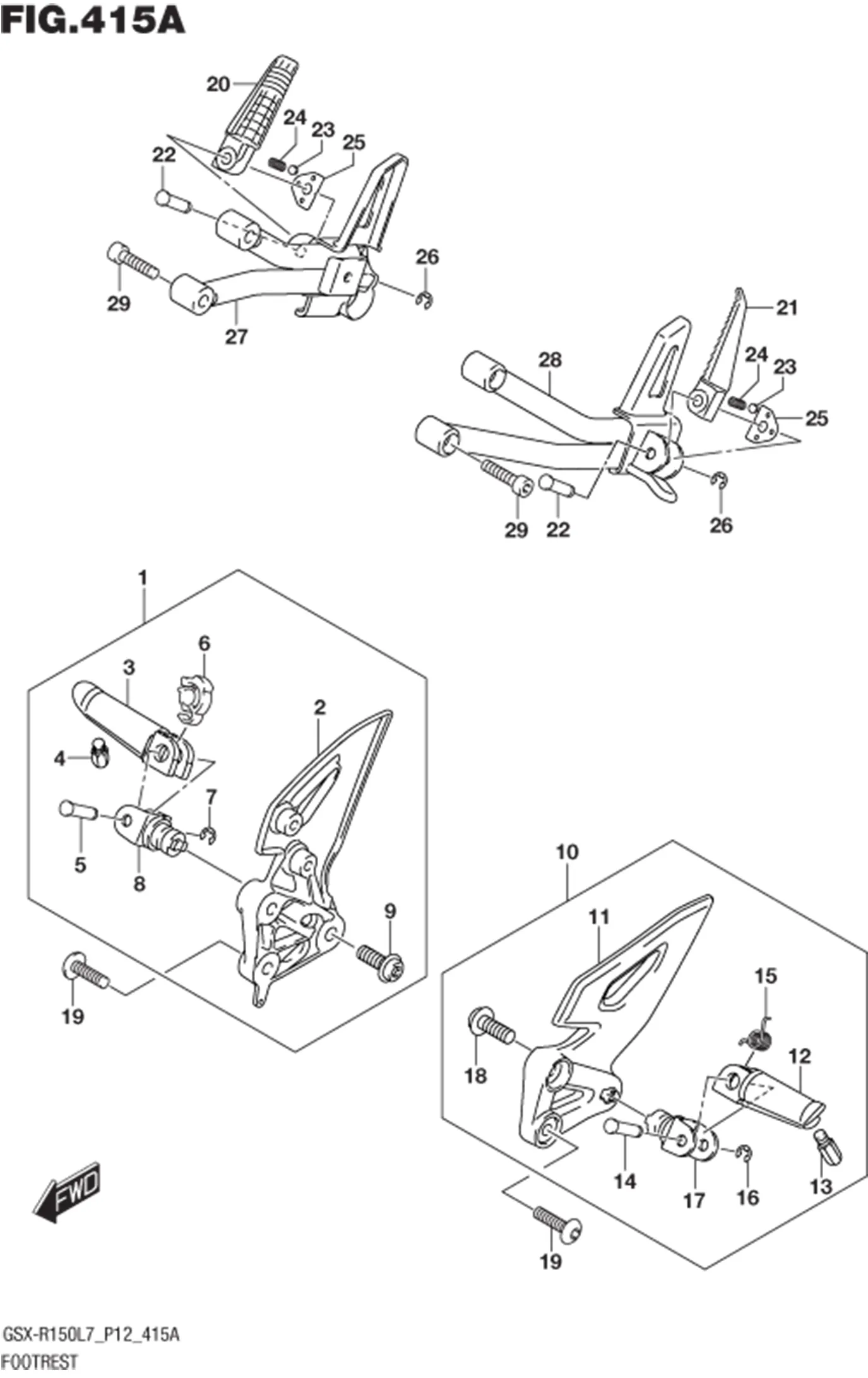

FIG.415A (1-E-9) FOOTREST

No. Part	Description	Qty	Price Per Pcs
08332-1106A-000 SUB: 08332B1106AN000	E RING	2	Rp8.500
09106-10064-000	BOLT (10X28)	1	Rp8.000
09106-08196-000 SUB: 09106B08196N000	BOLT (6X23)	4	Rp7.500
43611-37H20-000 SUB: 43611B37H00N000	BAR, PILLION RH	1	Rp311.500
43621-37H20-000 SUB: 43621B37H00N000	BAR, PILLION LH	1	Rp311.500
09208-08017-000 SUB: 09208B08017N000	PIN	2	Rp5.500
06111M07004-000 SUB: 06111-07004-000	BALL	2	Rp3.000
09440-05005-000	SPRING	2	Rp6.500
43816-01H02-000 SUB: 43816B01H02N000	PLATE, PILLION FOOTREST	2	Rp8.500
43530-23K00-000	HOLDER, FOOTREST	1	Rp37.000
43810-23K00-000	BRACKET, PILLION FTRST RH	1	Rp156.000
43820-23K00-000	BRACKET, PILLION FTRST LH	1	Rp156.000
07130-0830A-000	BOLT	4	Rp33.500
DISCONTINUE SUB: 51200-52D00-000		1	-
DISCONTINUE SUB: 51233-52D00-000		1	-
51290-52D00-000		1	Rp253.000
51300-52D00-000		1	Rp5.553.500
43501-23K00-000 SUB: 43501-23K00-13L	FOOTREST ASSY, FR RH (SILVER)	1	Rp194.000
08332-1106A-000 SUB: 08332B1106AN000	E RING	1	Rp8.500
09448-14037-000	SPRING	1	Rp4.500
09208-08018-000	PIN	1	Rp4.500
43576-48B02-000	BOLT, BANK SENSOR	1	Rp45.000
43526-35F10-000	BAR, FRONT FOOTREST LH	1	Rp65.500
43521-23K00-000 SUB: 43521-23K00-13L	BRACKET, FR FTRST LH (SILVER)	1	Rp77.500
43502-23K00-000 SUB: 43502-23K00-13L	FOOTREST ASSY, FR LH (SILVER)	1	Rp194.000
09106-10064-000	BOLT (10X28)	1	Rp8.000
43530-23K00-000	HOLDER, FOOTREST	1	Rp37.000
08332-1106A-000 SUB: 08332B1106AN000	E RING	1	Rp8.500
43532-34J00-000	STOPPER, FR FOOTREST BAR	1	Rp4.500
09208-08018-000	PIN	1	Rp4.500
43576-48B02-000	BOLT, BANK SENSOR	1	Rp45.000
43516-35F10-000	BAR, FRONT FOOTREST RH	1	Rp67.000
43511-23K00-000 SUB: 43511-23K00-13L	BRACKET, FR FTRST RH (SILVER)	1	Rp77.500
