GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

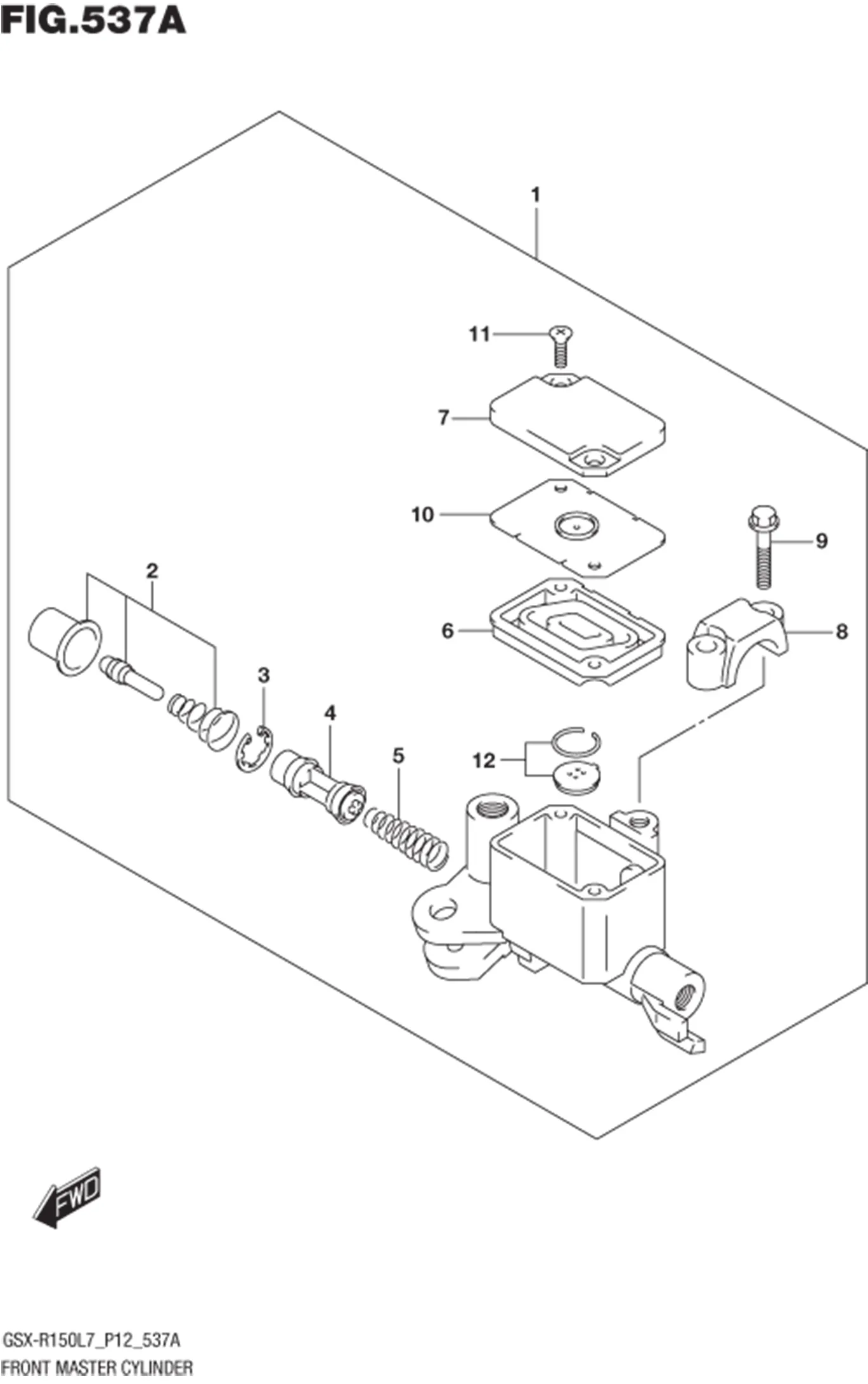

FIG.537A (1-E-12) FRONT MASTER CYLINDER

FIG.537A (1-E-12) FRONT MASTER CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	59600-12K10-000	CYLINDER ASSY, FRONT MASTER	1	Rp431.500
	59870-30H00-000	ROD ASSY, PUSH	1	Rp21.000
	59665-30H00-000	CIRCLIP	1	Rp10.500
	59610-12K00-000	PISTON ASSY	1	Rp59.500
	57318-12K00-000	SPRING	1	Rp8.500
	59667-12K00-000	DIAPHRAGM	1	Rp18.000
	59687-23K00-000	COVER	1	Rp44.500
	59671-30H00-000	CLAMP	1	Rp32.000
	59688-30H00-000	SCREW	2	Rp12.500
	59668-30H00-000	PLATE, DIAPHRAGM	1	Rp9.500
	59691-30H00-000	FLAT SCREW	2	Rp5.500
	59669-30H00-000	CAP	1	Rp11.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
