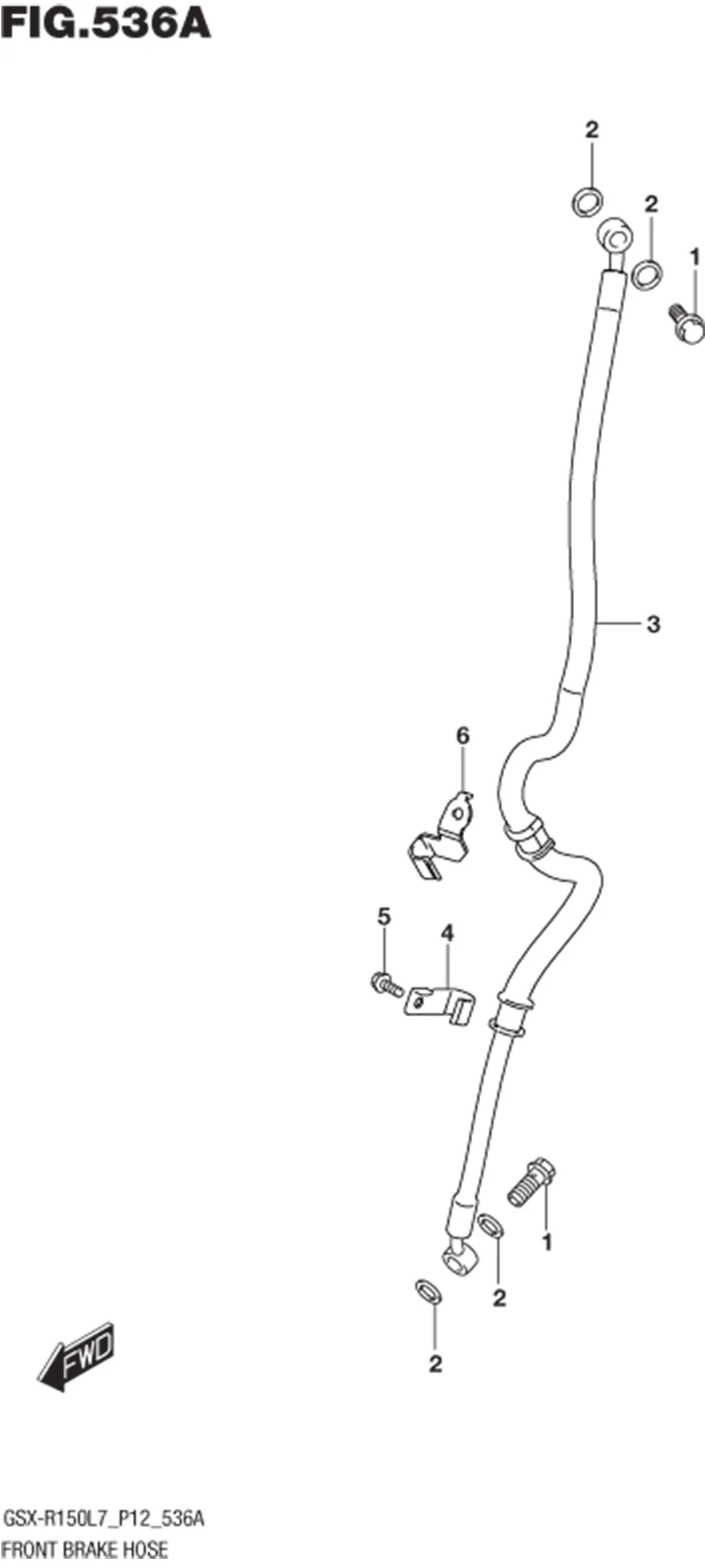

FIG.536A (1-E-11) FRONT BRAKE HOSE

FIG.536A (1-E-11) FRONT BRAKE HOSE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	59492-30H20-000 SUB: 59492-30H10-000	BOLT, BRAKE FLUID	2	Rp25.000
	59502-34J10-000	WASHER, BRAKE FLUID	4	Rp11.500
	59480-23K01-000 SUB: 59480-23K00-000	HOSE, FRONT BRAKE	1	Rp255.500
	59268-23K00-000	CLAMP, HOSE LOWER	1	Rp5.500
	01547-0610A-000 SUB: 01547B0612BN000	BOLT	1	Rp3.000
	59263-23K00-000	CLAMP, FR BRAKE HOSE UPPER	1	Rp8.500
	03141-0516B-000 SUB: 03142-05123-000		2	Rp3.500
	DISCONTINUE SUB: 74431-54J00-000		1	-
6	09148-05045-000 SUB: 09148B05045N000	NUT	3	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
