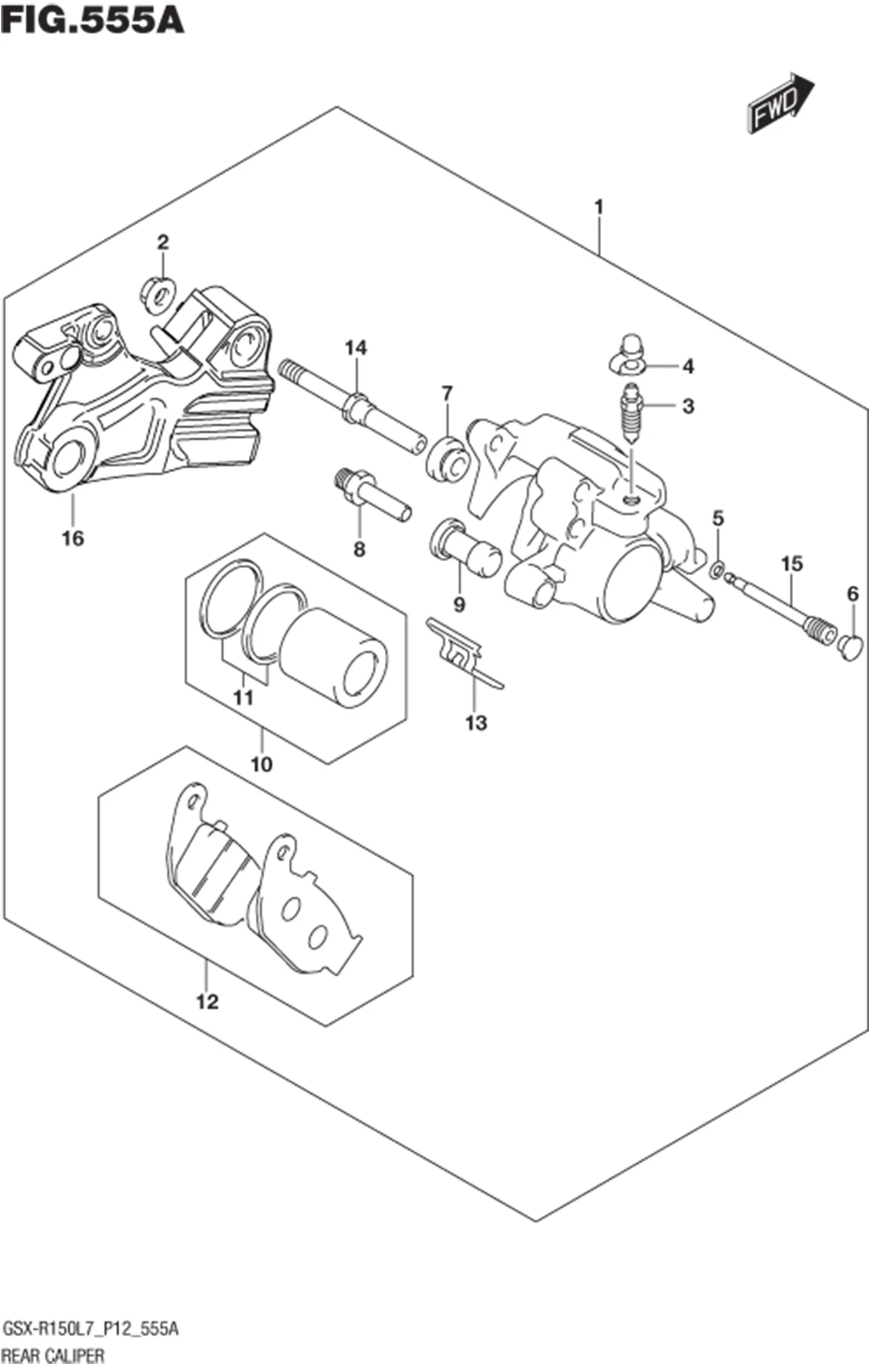

FIG.555A (1-E-15) REAR CALIPER

FIG.555A (1-E-15) REAR CALIPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	69100-23K00-000	CALIPER ASSY, REAR	1	Rp522.000
	59145-37F00-000	RING, STOPPER	1	Rp27.000
	69100-20850-000	PISTON SET	1	Rp137.000
	59100-38860-000 SUB: 59100B38860N000	SEAL SET, PISTON	1	Rp37.500
	69101-34810-000	PAD SET	1	Rp85.000
	69187-34J00-000	PIN	1	Rp20.500
	69720-23K00-000	BRACKET	1	Rp185.500
5	69345-20G00-000 SUB: 69345B20G00N000	?PIN, HANGER	1	Rp25.000
7	59146-20G00-000 SUB: 59146B20G00N000	?PLUG, PIN	1	Rp5.500
9	51315-61J00-000	•NUT	1	Rp6.000
12	59382-14500-000 SUB: 59382B14500N000	?BOLT	1	Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
