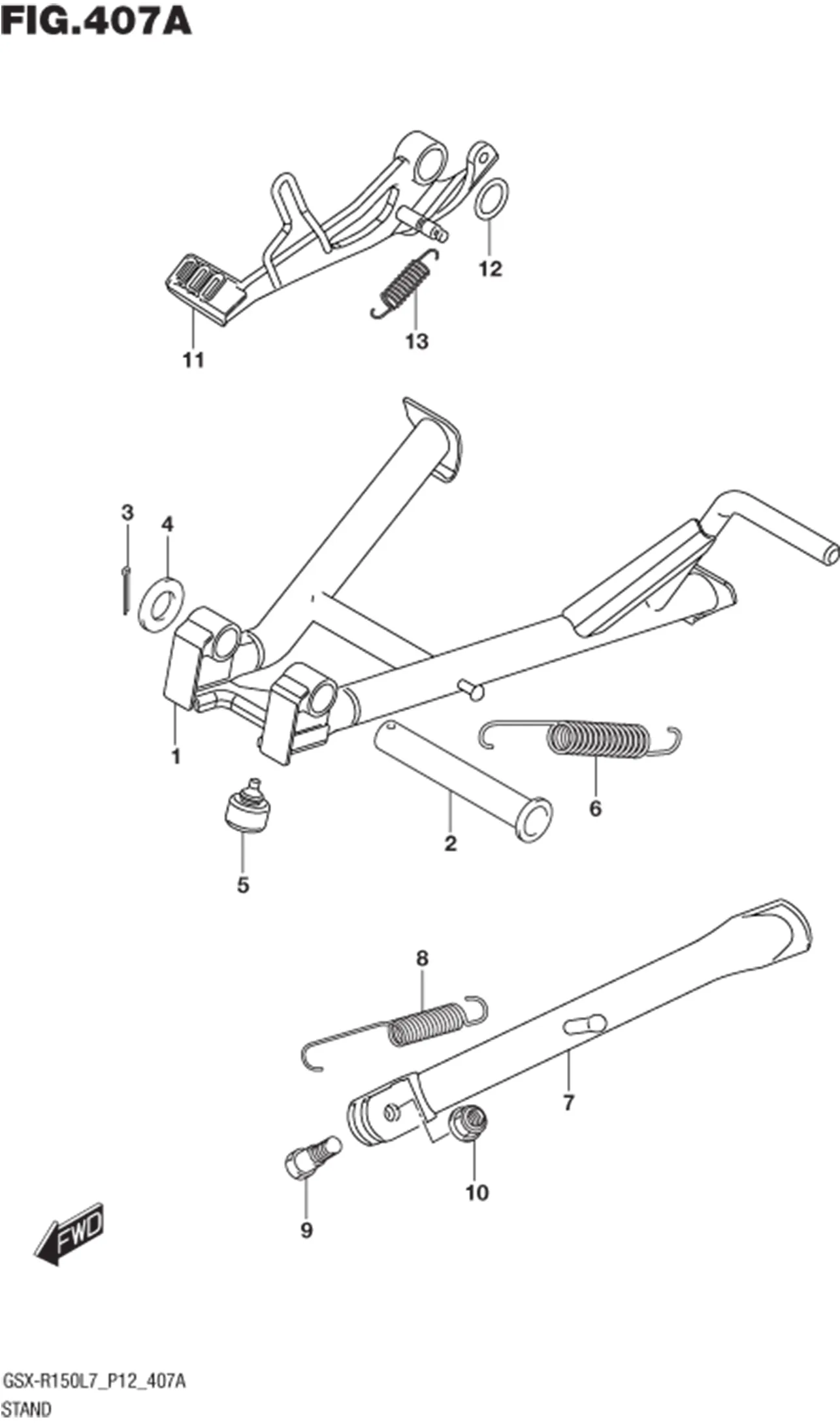

FIG.407A (1-D-4) STAND

FIG.407A (1-D-4) STAND

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	42100-23K00-000	STAND, CENTER	1	Rp377.500
	42211-25G00-000 SUB: 42211B25G00N000	SHAFT, CENTER STAND	1	Rp23.500
	42272-09J00-000	CUSHION, CENTER STAND	1	Rp6.000
	42241-45H00-000 SUB: 42241B45H00N000	SPRING, CENTER STAND	1	Rp13.000
	42310-23K00-000	STAND, PROP	1	Rp45.000
	09443-14077-000	SPRING	1	Rp6.000
	42341-40J00-000	BOLT, PROP STAND	1	Rp11.500
	08319-3110A-000	NUT	1	Rp4.500
	43110-23K01-000 SUB: 43110-23K00-000	PEDAL, BRAKE	1	Rp70.500
	09160-18022-000	WASHER (18X24X1)	1	Rp19.500
	09443-11033-000	SPRING	1	Rp28.500
17	08322-0116A-000 SUB: 08322B0116AN000	WASHER	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
