GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

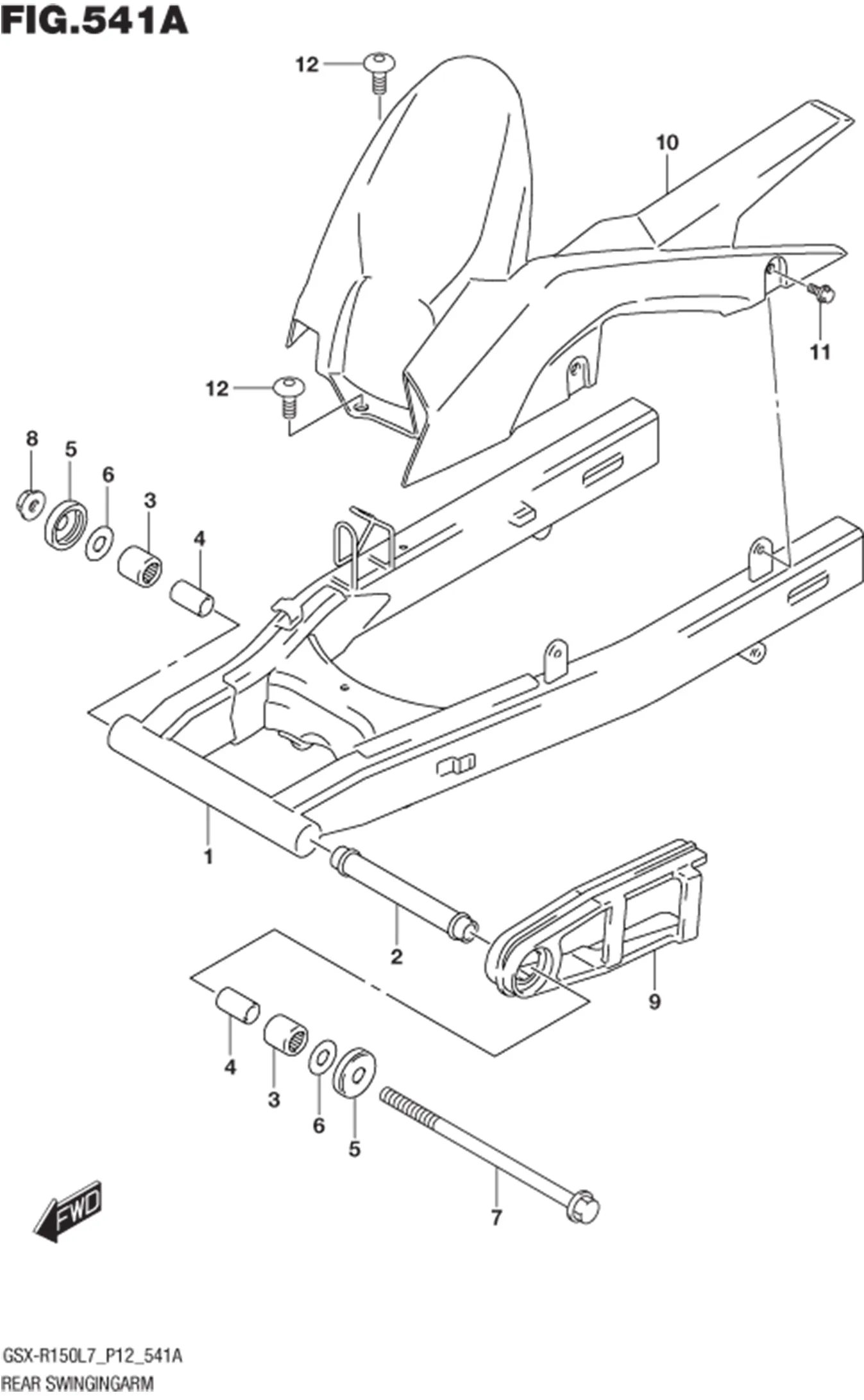

FIG.541A (1-E-13) REAR SWINGINGARM

FIG.541A (1-E-13) REAR SWINGINGARM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	61100-23K00-019	SWINGINGARM, REAR (BLACK)	1	Rp702.500
	61280-23K00-000	SPACER, RR SWGARM PIVOT	1	Rp19.500
	09263-17053-000 SUB: 09263-17037-000	BEARING (17X24X25)	2	Rp38.000
	61251-34J00-000	SPACER, RR SWGARM	2	Rp19.500
	61262-23K01-000 SUB: 61262-23K00-000	COVER, RR SWGARM PIVOT DUST	2	Rp12.500
	09181-12010-000	WASHER	1	Rp8.500
	61211-23K00-000	SHAFT, REAR SWINGING ARM	1	Rp31.500
	61273-23K00-000	BUFFER, CHAIN TOUCH DEFENSE	1	Rp28.500
	61311-23K00-000	CASE, CHAIN	1	Rp87.000
	61361-09G30-000 SUB: 61361B09G30N000	BOLT	2	Rp4.000
	09409-06314-5PK SUB: 09409-06314-000	CLIP	2	Rp3.500
6	73624-76A00-000	.STAY, FAN SWITCH	1	Rp52.500
30	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	7	Rp7.500
30	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	7	Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
