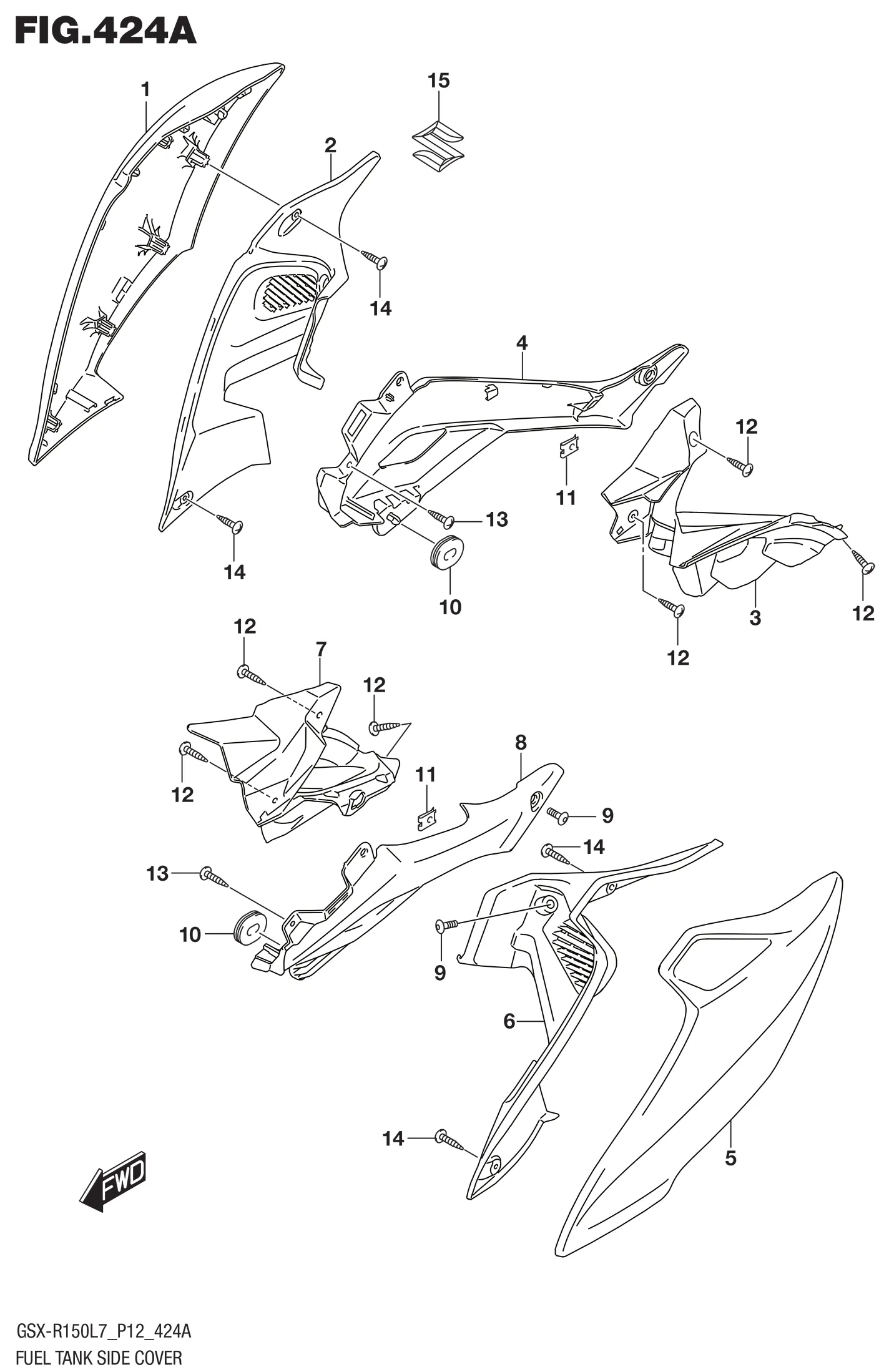

FIG.424A (1-E-15) FUEL TANK SIDE COVER

FIG.424A (1-E-15) FUEL TANK SIDE COVER
No No. Part Description Qty Price Per Pcs Remarks
47131-23KA0-000 COVER, FRAME FRONT INNER RH 1 Rp107.500
DISCONTINUE
SUB: 53131-52D00-000		 4 -
DISCONTINUE
SUB: 53120-52D00-000		 1 -
09117-10042-000 8 Rp22.000
DISCONTINUE
SUB: 55222-65D00-000		 1 -
DISCONTINUE
SUB: 55221-65D00-000		 1 -
55211-65D14-000
SUB: 55211-65D12-000		 2 Rp2.280.500
55200-65DB4-000
SUB: 55200-65D30-000		 1 Rp1.876.000
55235-77E00-000 4 Rp88.000
55234-77E00-000 4 Rp92.500
68641-23K10-000
SUB: 68641-23K00-000		 EMBLEM, "S" 2 Rp21.500
03541-0416A-000 SCREW 2 Rp3.500
03541-0416A-000 SCREW 6 Rp3.500
09148-04019-000
SUB: 09148B04019N000		 NUT 2 Rp6.500
94478-14J00-000 CUSHION, FRAME COVER FRONT LWR 2 Rp4.000
44514-23K00-000 SCREW, FRAME COVER FRONT 4 Rp6.500
47251-23KA0-000 COVER, FRAME FRONT LOWER LH 1 Rp107.500
47241-23KA0-000 COVER, FRAME FRONT MIDDLE LH 1 Rp107.500
47231-23KA0-000 COVER, FRAME FRONT INNER LH 1 Rp107.500
47221-23KA0-YZE COVER, FRAME FRONT LH (RED) 1 Rp125.500
47151-23KA0-000 COVER, FRAME FRONT LOWER RH 1 Rp107.500
47141-23KA0-000 COVER, FRAME FRONT MIDDLE RH 1 Rp107.500
47121-23KA0-YZE COVER, FRAME FRONT RH (RED) 1 Rp125.500
4 53141-65D00-000 PLUG, BACKING PLATE 2 Rp16.000
15 09117-12012-000 BOLT (12X32) 4 Rp38.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
