  5. FIG.543A (1-G-140 REAR CUSHION LEVER

GSXS-150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAMEFIG.407A (1-D-4) STANDFIG.415A (1-E-9) FOOTRESTFIG.420A (1-D-6) FUEL TANKFIG.423A (1-E-13) FUEL TANK COVERFIG.424A (1-E-15) FUEL TANK SIDE COVERFIG.445A (1-F-2) FRAME COVERFIG.451A (1-F-4) HEADLAMP HOUSINGFIG.460A (1-F-5) FRONT FENDERFIG.462A (1-D-14) HANDLEBARFIG.467A (1-D-15) HANDLE LEVERFIG.474A (1-E-2) REAR FENDERFIG.481A (1-F-12) COWLING BODYFIG.483A (1-F-13) UNDER COWLINGFIG.485A (1-F-14) SIDE COWLINGFIG.496 (1-G-1) LABELFIG.505A (1-G-2) SEATFIG.521A (1-E-8) FRONT FORK DAMPERFIG.524A (1-G-7) STEERING STEMFIG.530A (1-G-8) FRONT WHEELFIG.535A (1-E-10) FRONT CALIPERFIG.536A (1-E-11) FRONT BRAKE HOSEFIG.537A (1-E-12) FRONT MASTER CYLINDERFIG.541A (1-E-13) REAR SWINGINGARMFIG.543A (1-G-140 REAR CUSHION LEVERFIG.550A (1-E-14) REAR WHEELFIG.555A (1-E-15) REAR CALIPERFIG.558A (1-F-3) REAR MASTER CYLINDERFIG.915A (1-H-5) STRIPPING SET

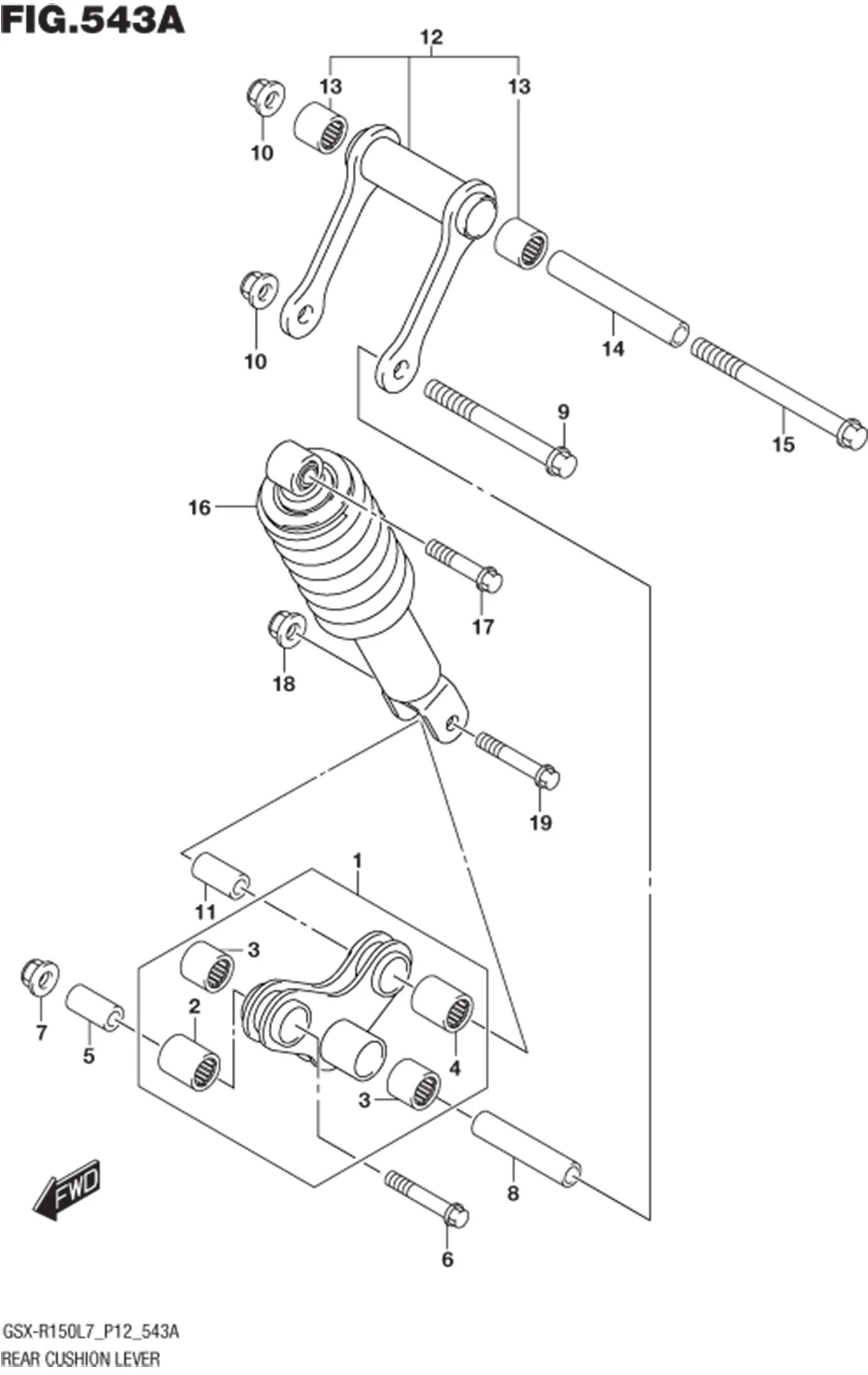

FIG.543A (1-G-140 REAR CUSHION LEVER

FIG.543A (1-G-140 REAR CUSHION LEVER
No No. Part Description Qty Price Per Pcs Remarks
09263-17053-000
SUB: 09263-17037-000		 BEARING (17X24X25) 2 Rp38.000
01580-06303-000
SUB: 01580-06253-000		 1 Rp5.500
DISCONTINUE
SUB: 95433B54J00N000		 1 -
DISCONTINUE
SUB: 95896B54J00N000		 1 -
09103-10213-000 BOLT (10X52) 1 Rp30.500
08319-3110A-000 NUT 1 Rp4.500
09103-10049-000
SUB: 09103B10049N000		 BOLT (10X44) 1 Rp6.500
62100-23K00-019 ABSORBER ASSY, RR SHOCK(BLACK) 1 Rp474.500
09103-12077-000 BOLT (12X130) 1 Rp20.000
62685-23K00-000 SPACER, REAR CUSH ROD 1 Rp38.500
62600-23822-000
SUB: 62600-23820-000		 LEVER SET, REAR CUSHION 1 Rp303.500
62600-23831-000
SUB: 62600-23830-000		 ROD SET, CUSHION LEVER 1 Rp159.500
62684-01D10-000 SPACER, REAR CUSH LVR RR 1 Rp24.500
09103-12097-000 BOLT (12X105) 1 Rp22.000
62684-23K00-000 SPACER, REAR CUSH LVR CTR 1 Rp34.000
62668-42A02-000 BOLT, RR CUSH LVR FR 1 Rp60.500
62684-23K10-000 SPACER, REAR CUSH LVR FR 1 Rp27.500
09263-17057-000
SUB: 09263-17034-000		 BEARING (17X24X26) 1 Rp201.000
09263-17053-000
SUB: 09263-17037-000		 BEARING (17X24X25) 2 Rp38.000
09263-17046-000 BEARING (17X24X32) 1 Rp198.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
