GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

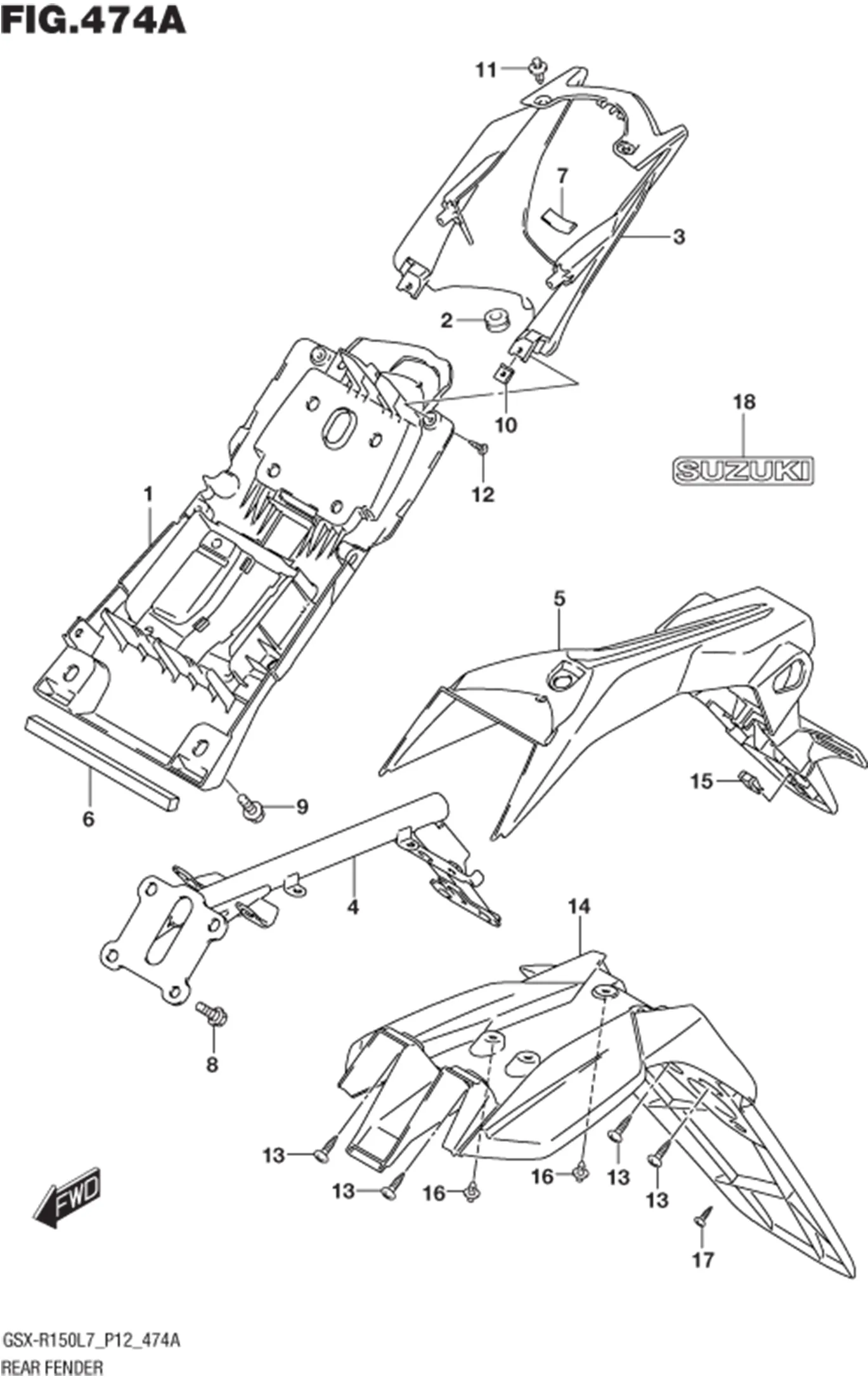

FIG.474A (1-E-2) REAR FENDER

FIG.474A (1-E-2) REAR FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	09409-06314-5PK SUB: 09409-06314-000	CLIP	2	Rp3.500
	DISCONTINUE SUB: 72422-60A10-000		1	-
	DISCONTINUE SUB: 72421-65D10-000		1	-
	DISCONTINUE SUB: 59300-65D71-000		1	-
	68171-23K20-000 SUB: 68171-23K00-000	EMBLEM, "SUZUKI"	1	Rp11.000
	09409-06314-5PK SUB: 09409-06314-000	CLIP	4	Rp3.500
	09148-05080-000	NUT	1	Rp8.000
	63311-23K00-000	EXTENSION, REAR FENDER	1	Rp93.500
	03541-0412B-000 SUB: 03541B0412BN000	SCREW	2	Rp4.000
	63111-23K00-000	FENDER, REAR FRONT	1	Rp77.500
	09148-04019-000 SUB: 09148B04034N000	NUT	2	Rp6.500
	09111-06102-000	BOLT (6X14.8)	2	Rp3.500
	09111-06072-000	BOLT (6X17.8)	4	Rp3.500
	63152-23K00-000	CUSHION, REAR FENDER FR COV LW	1	Rp4.000
	63151-23K00-000	CUSHION, REAR FENDER FRONT	1	Rp4.000
	63141-23K00-000	FENDER, REAR REAR	1	Rp77.500
	63130-23K00-000	BRACE, REAR FENDER	1	Rp92.000
	63121-23K00-000	COVER, REAR FENDER FRONT	1	Rp68.000
21	03541-0616A-000	SCREW	2	Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
