GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

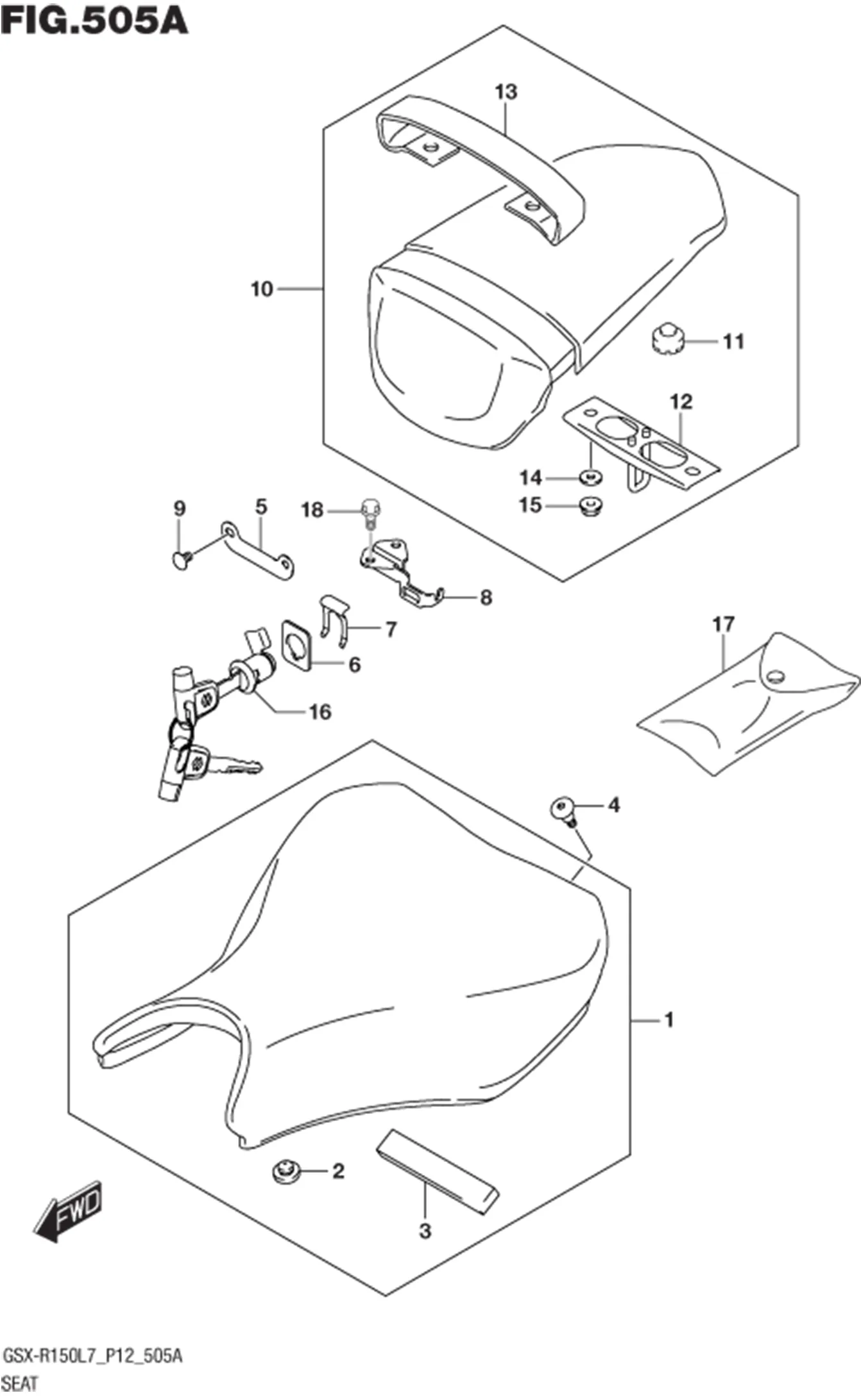

FIG.505A (1-G-2) SEAT

FIG.505A (1-G-2) SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	45100-23K00-PRQ	SEAT ASSY (BLACK)	1	Rp183.000
	45148-23J00-000	CUSHION, SEAT MOUNT	4	Rp4.500
	45149-23K00-000	CUSHION, BATTERY	1	Rp12.500
	45241-23K00-000	BOLT, SEAT	2	Rp9.500
	45289-23K10-000	GUARD, SEAT LOCK	1	Rp4.500
	45288-12K00-000	GUIDE, SEAT LOCK CABLE	1	Rp4.500
	45220-04K30-000	BRACKET, STRIKER SUPPORT	1	Rp28.500
	02142-0610A-000	SCREW	2	Rp3.500
	45300-23K01-PRQ SUB: 45300-23K00-PRQ	SEAT ASSY, PILLION (BLACK)	1	Rp164.500
	45148-20G80-000 SUB: 45148B20G80N000	CUSHION, SEAT MOUNT	2	Rp3.500
	45290-23K00-000	STRIKER, SEAT LOCK	1	Rp15.000
	45380-23K01-PRQ SUB: 45380-23K00-PRQ	BAND,PILLION SEAT GRIP(BLACK)	1	Rp12.000
	95700-09880-000 SUB: 97500-09880-000	LOCK ASSY, SEAT	1	Rp182.000
	96510-23K00-000	TOOL ASSY	1	Rp42.500
	01550-0612A-000	SCREW	2	Rp3.500
4	08316-1006A-000	NUT	3	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
