GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

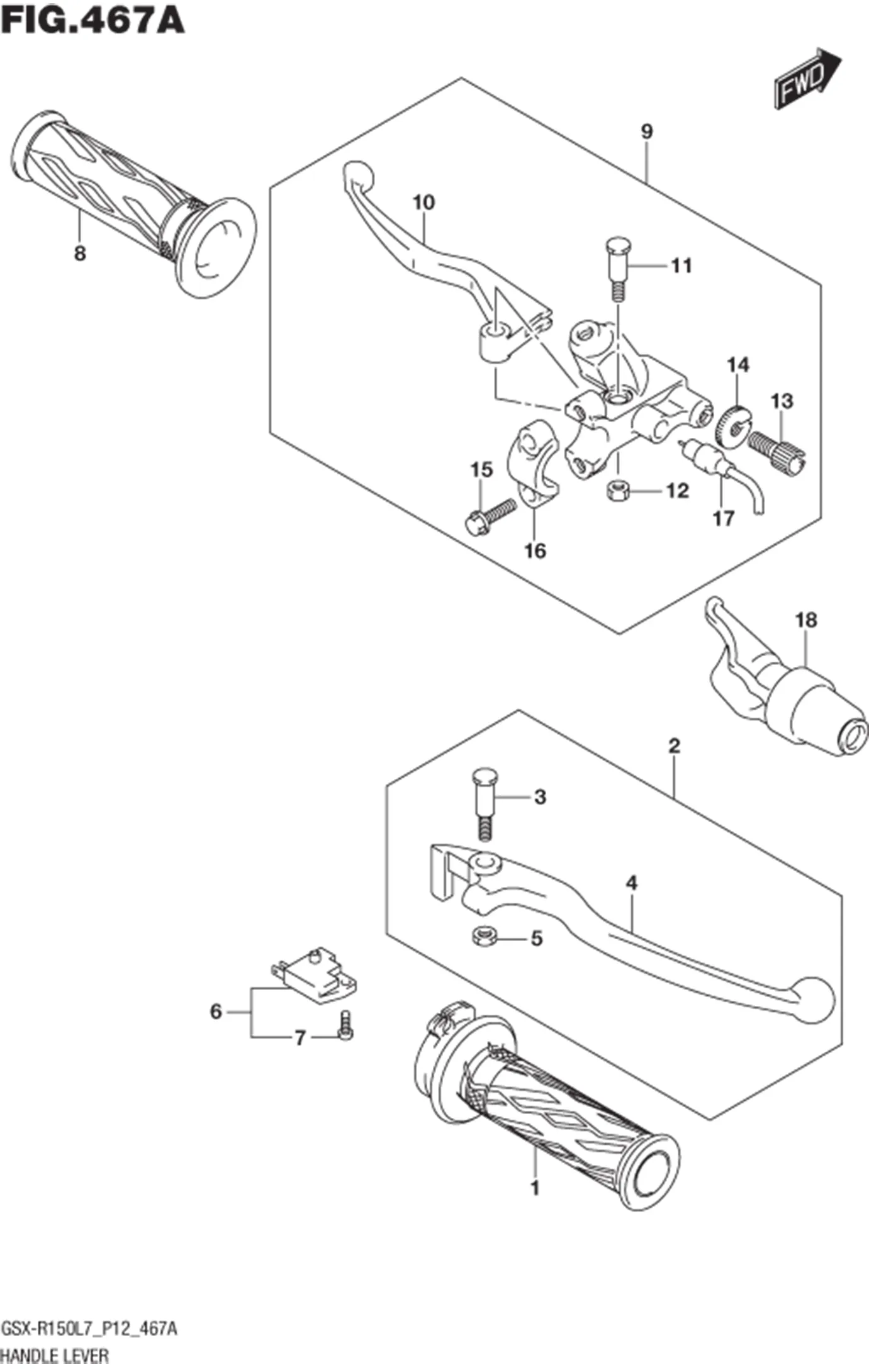

FIG.467A (1-D-15) HANDLE LEVER

FIG.467A (1-D-15) HANDLE LEVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	57621-23FB0-000	LEVER, CLUTCH	1	Rp32.500
	57661-25G00-000	COVER, CLUTCH LEVER	1	Rp11.000
	57470-10JD0-000	SWITCH ASSY, CLUTCH	1	Rp52.000
	59671-09G30-000	HOLDER	1	Rp14.500
	01547-0625A-000 SUB: 01547B0625BN000	BOLT	2	Rp6.500
	57442-25G00-000 SUB: 57442B25G00N000	NUT, LOCK	1	Rp9.000
	57441-25G00-000 SUB: 57441B25G00N000	ADJUSTER, WIRE	1	Rp12.500
	57513-23F10-000 SUB: 57513B23F10N000	NUT, LEVER SET	1	Rp4.000
	57431-23F10-000 SUB: 57431B23F10N000	BOLT, LEVER SET	1	Rp4.500
	57110-23K01-000 SUB: 57110-23K00-000	GRIP, THROTTLE	1	Rp28.500
	57500-25G80-000	LEVER ASSY, CLUTCH	1	Rp138.000
	57211-40J01-000 SUB: 57211-40J00-000	GRIP, LH	1	Rp18.500
	57465-30H00-000	SCREW	1	Rp6.500
	57460-30H00-000	SWITCH ASSY, STOP	1	Rp36.500
	57433-30H10-000	NUT	1	Rp8.500
	57421-30H10-000	LEVER, BRAKE	1	Rp70.000
	57431-30H20-000	BOLT	1	Rp20.500
	57300-30H21-000	LEVER ASSY, BRAKE	1	Rp103.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
