GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

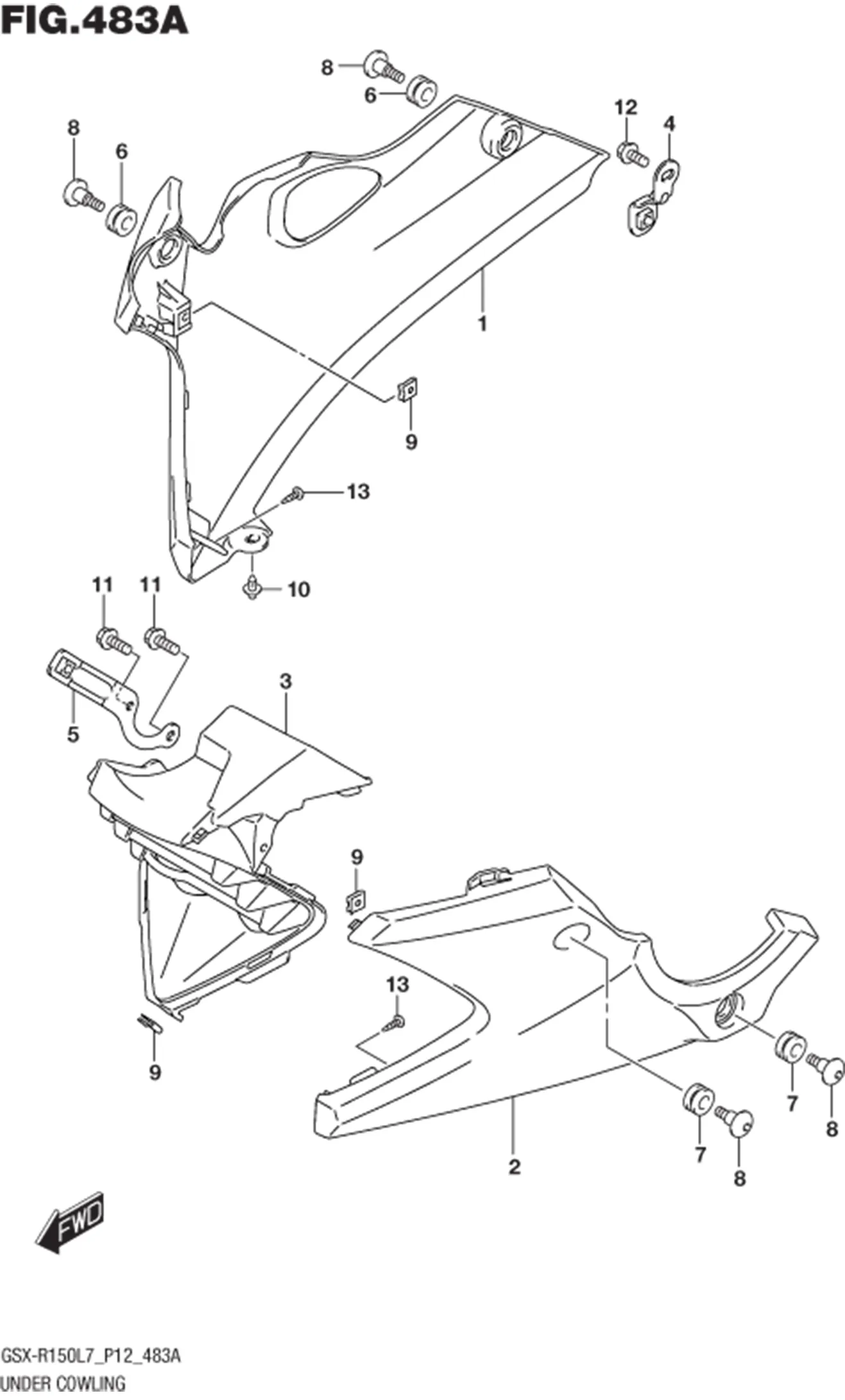

FIG.483A (1-F-13) UNDER COWLING

FIG.483A (1-F-13) UNDER COWLING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	01550-0612A-000	BOLT	2	Rp3.500
	DISCONTINUE SUB: 63151-52D00-000		1	-
	DISCONTINUE SUB: 63141-52D00-000		1	-
	DISCONTINUE SUB: 63141-65D00-000		1	-
	DISCONTINUE SUB: 63521-52D00-000		1	-
	DISCONTINUE SUB: 63121-52D00-000		1	-
	DISCONTINUE SUB: 63511-52D00-000		1	-
	DISCONTINUE SUB: 63111-52D00-000		1	-
	DISCONTINUE SUB: 09119-06090-000		3	-
	DISCONTINUE SUB: 61580-52D50-000		1	-
	01550B0612BN000	BOLT	1	Rp2.500
	94491-23KA0-YZE	COWLING, UNDER RH (RED)	1	Rp173.000
	09409-06314-5PK SUB: 09409-06314-000	CLIP	1	Rp3.500
	09148-04019-000 SUB: 09148B04019N000	NUT	3	Rp6.500
	09139-06190-000 SUB: 09139B06190N000	SCREW (6X20)	4	Rp7.000
	09320-09016-000	CUSHION	2	Rp4.000
	94436-23K00-000	CUSHION, UNDER COWLING RH	2	Rp4.000
	94580-23KA0-000	BRACKET, UNDER COWL FR RH	1	Rp8.500
	94570-23K00-000	BRACKET, SIDE COWL LWR RR	1	Rp7.000
	94493-23KA0-000	COWLING, UNDER CTR	1	Rp15.500
	94492-23KA0-YZE	COWLING, UNDER LH (RED)	1	Rp173.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
