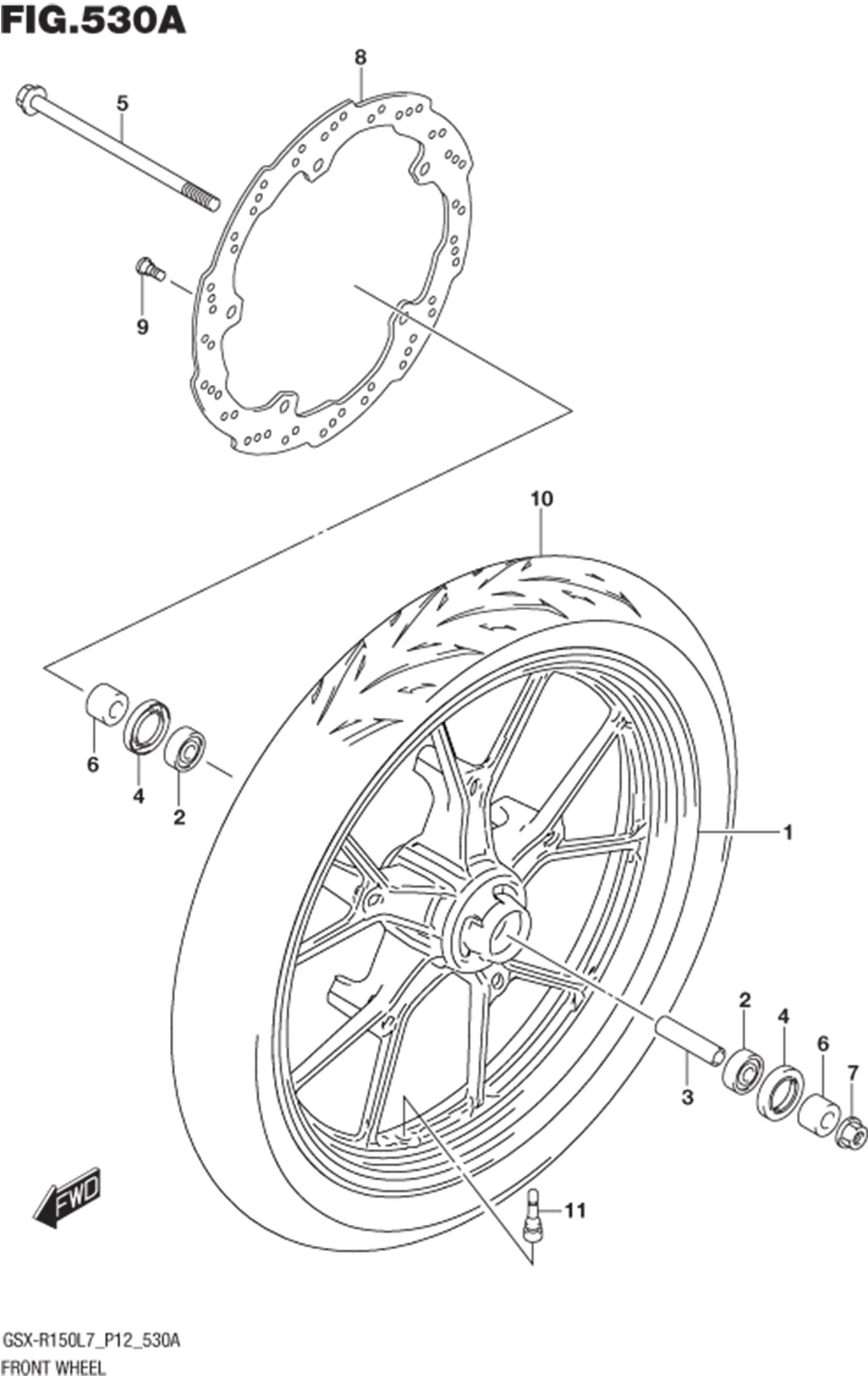

FIG.530A (1-G-8) FRONT WHEEL

FIG.530A (1-G-8) FRONT WHEEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	54111-23K00-019	WHEEL, FRONT (17X2.15) (BLACK)	1	Rp851.500
	08123-6301B-000 SUB: 08123B63017N000	BEARING	2	Rp39.500
	54731-23K00-000	SPACER, FR WHEEL BEARING	1	Rp13.000
	54711-23K00-000	AXLE, FRONT	1	Rp27.500
	54751-25G01-000 SUB: 54751B25G01N000	SPACER, FRONT AXLE RH	2	Rp17.500
	59211-25G60-000	DISC, FRONT BRAKE	1	Rp324.000
	59218-09G10-000	BOLT	5	Rp7.000
	55110-23K00-000	TIRE, FRONT(90/80-17M/C 46P NR88)	1	Rp539.000
	43130-40J00-000	VALVE ASSY, WHEEL RIM (TR413)	1	Rp11.000
	DISCONTINUE SUB: 73814-50J00-000		1	-
	DISCONTINUE SUB: 73813-65D00-R8H		1	-
	DISCONTINUE SUB: 73811-50J00-R8H		1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
