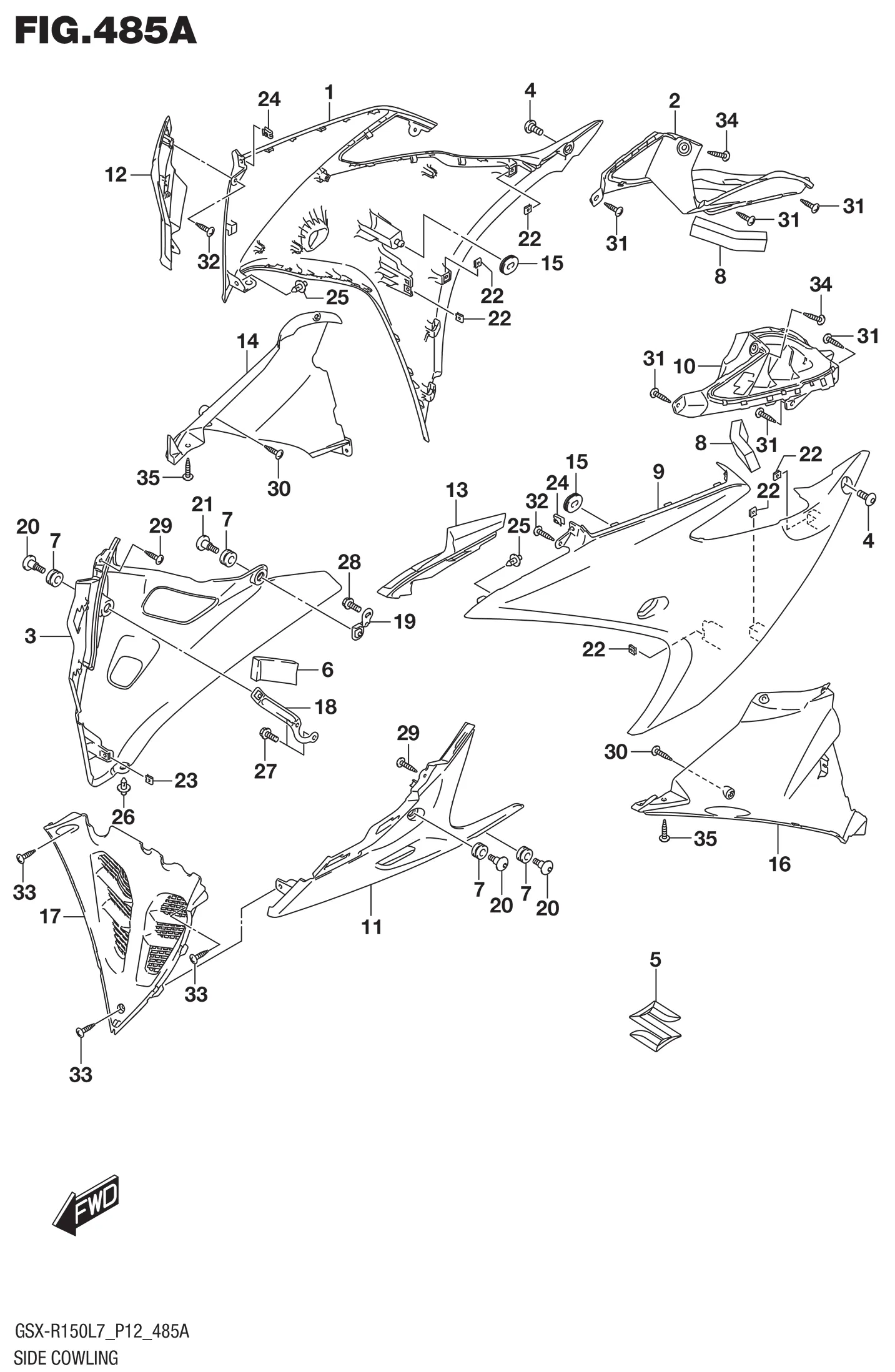

FIG.485A (1-F-14) SIDE COWLING

No	No. Part	Description	Qty	Price Per Pcs
	DISCONTINUE SUB: 65131-65D00-000		1	-
	09409-06314-5PK SUB: 09409-06314-000	CLIP	1	Rp3.500
	01550-0612A-000	BOLT	2	Rp3.500
	01550B0612BN000	BOLT	1	Rp2.500
	03541-0412B-000 SUB: 03541B0412BN000	SCREW	2	Rp4.000
	03541-0416A-000	SCREW	6	Rp3.500
	03541-0416A-000	SCREW	2	Rp3.500
	DISCONTINUE SUB: 64251-52D00-000		2	-
	DISCONTINUE SUB: 64252-52D00-000		1	-
	DISCONTINUE SUB: 64652-52D00-000		1	-
	DISCONTINUE SUB: 65112-84000-000		2	-
	DISCONTINUE SUB: 65120-65DA0-000		1	-
	94432-23K00-000	COWLING, SIDE MIDDLE RH	1	Rp51.000
	DISCONTINUE SUB: 65141-65D00-000		1	-
	DISCONTINUE SUB: 65151-52D00-000		3	-
	DISCONTINUE SUB: 51553-42AA0-000		2	-
	DISCONTINUE SUB: 71771-56B00-000		2	-
	09169-06062-000		3	Rp16.500
	DISCONTINUE SUB: 09320-09502-000		3	-
	09409-07325-5PK		7	Rp18.000
	DISCONTINUE SUB: 71781-65D00-000		2	-
	DISCONTINUE SUB: 71750-65D10-000		1	-
	DISCONTINUE SUB: 71760-65D10-000		1	-
	DISCONTINUE SUB: 71771-65D10-000		1	-
	09148-05058-000 SUB: 09148B05058N000	NUT	2	Rp15.000
	94431-23K00-YUH	COWLING, SIDE UPPER RH (WHITE)	1	Rp221.500
	94433-23K00-YUH	COWLING, SIDE LOWER RH (WHITE)	1	Rp167.500
	44513-23K00-000	SCREW, SIDE COWLING UPPER	2	Rp6.500
	68641-23K10-000 SUB: 68641-23K00-000	EMBLEM, "S"	2	Rp21.500
	94434-23K00-000	CUSHION, SIDE COWLING LOWER IN	1	Rp4.500
	94436-23K00-000	CUSHION, SIDE COWLING LOWER	4	Rp4.000
	94437-23K00-000	CUSHION, SIDE COWLING MIDDLE	2	Rp9.500
	94441-23K00-YUH	COWLING, SIDE UPPER LH (WHITE)	1	Rp221.500
	94442-23K00-000	COWLING, SIDE MIDDLE LH	1	Rp51.000
	94443-23K00-YUH	COWLING, SIDE LOWER LH (WHITE)	1	Rp167.500
	94451-23K00-000	COVER, INTAKE RH	1	Rp51.000
	94461-23K00-000	COVER, INTAKE LH	1	Rp51.000
	94471-23K00-000	COWLING, INNER FR RH	1	Rp51.000
	94478-14J00-000	CUSHION, SIDE COWLING UPPER	2	Rp4.000
	09409-06314-5PK SUB: 09409-06314-000	CLIP	2	Rp3.500
	94481-23K00-000	COWLING, INNER FR LH	1	Rp51.000
	94494-23K00-000	COWLING, LOWER CENTER	1	Rp32.000
	94560-23K00-000	BRACKET, SIDE COWL LWR FR	1	Rp8.500
	09148-04019-000 SUB: 09148B04019N000	NUT	1	Rp6.500
	94570-23K00-000	BRACKET, SIDE COWL LWR RR	1	Rp7.000
	09139-06190-000 SUB: 09139B06190N000	SCREW (6X20)	3	Rp7.000
	09139-06190-000 SUB: 09139B06190N000	SCREW (6X20)	1	Rp7.000
	09148-04019-000 SUB: 09148B04019N000	NUT	6	Rp6.500
9	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
9	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
9	02162-0620A-000 SUB: 02162-0620C-000	SCREW	2	Rp5.500
24	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
25	03541-0516A-000	SCREW	1	Rp3.500
38	09122-76003-000	SCREW (6X16)	3	Rp15.000
46	83971-54F00-000	SHEET, REAR DOOR SILENCER	2	Rp58.000
