GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

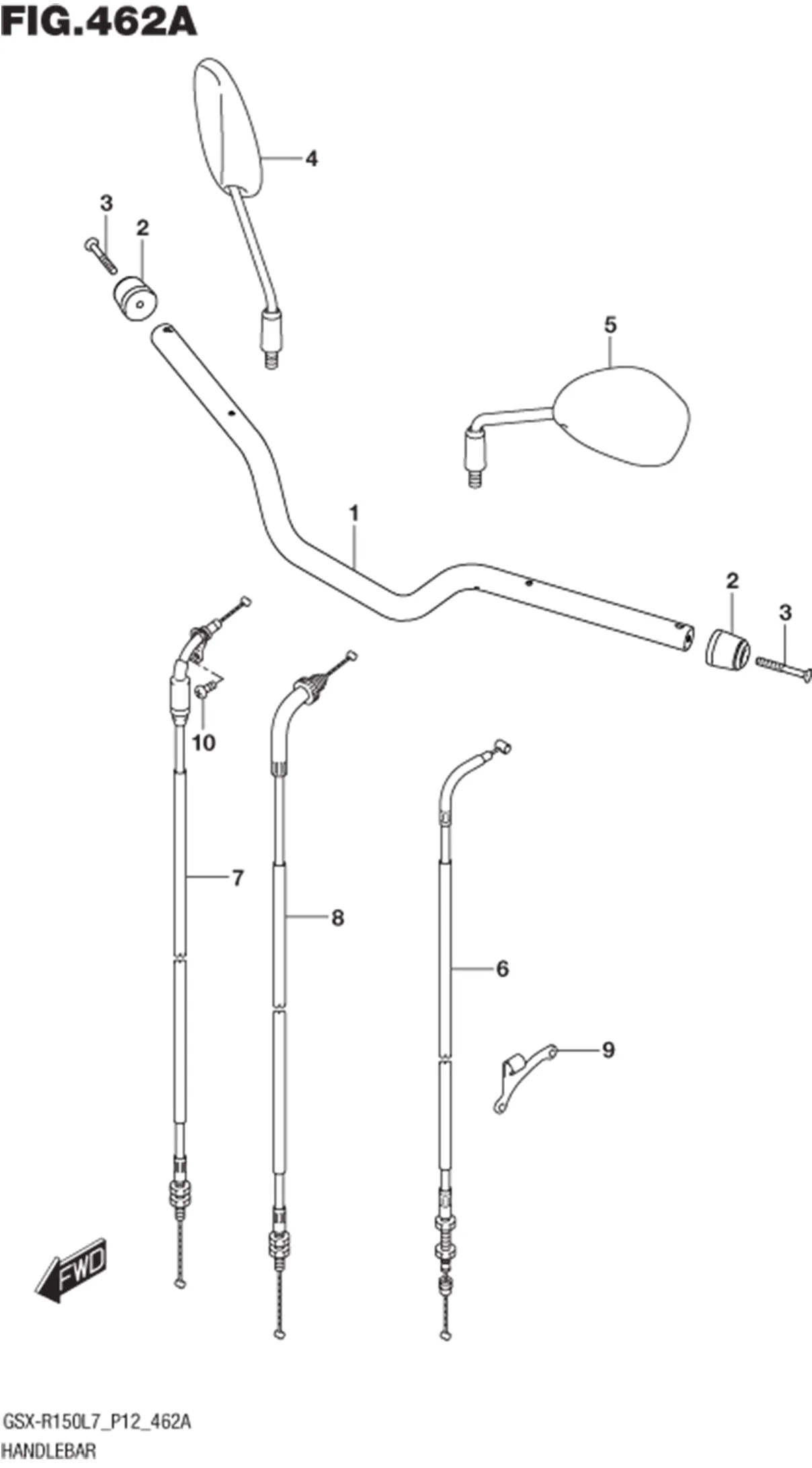

FIG.462A (1-D-14) HANDLEBAR

FIG.462A (1-D-14) HANDLEBAR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	56111-23K00-000	HANDLEBAR	1	Rp185.000
	56278-32J10-000	BALANCER, HANDLEBAR	2	Rp28.000
	09127-06025-000	SCREW (6X50)	2	Rp7.500
	56500-34J51-000 SUB: 56500-34J50-000	MIRROR ASSY, REAR VIEW RH	1	Rp52.000
	56600-34J51-000 SUB: 56600-34J50-000	MIRROR ASSY, REAR VIEW LH	1	Rp52.000
	58200-23K01-000 SUB: 58200-23K00-000	CABLE ASSY, CLUTCH	1	Rp51.000
	58300-23K01-000 SUB: 58300-23K00-000	CABLE ASSY, THROTTLE NO.1	1	Rp44.000
	58300-23K11-000 SUB: 58300-23K10-000	CABLE ASSY, THROTTLE NO.2	1	Rp48.000
	58634-12K00-000	STOPPER, CLUTCH CABLE	1	Rp8.500
	02112-0512A-000	SCREW	1	Rp2.500
	72372-63J00-000 SUB: 72372B82000N000		2	Rp8.000
	DISCONTINUE SUB: 72442-65D10-000		1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
