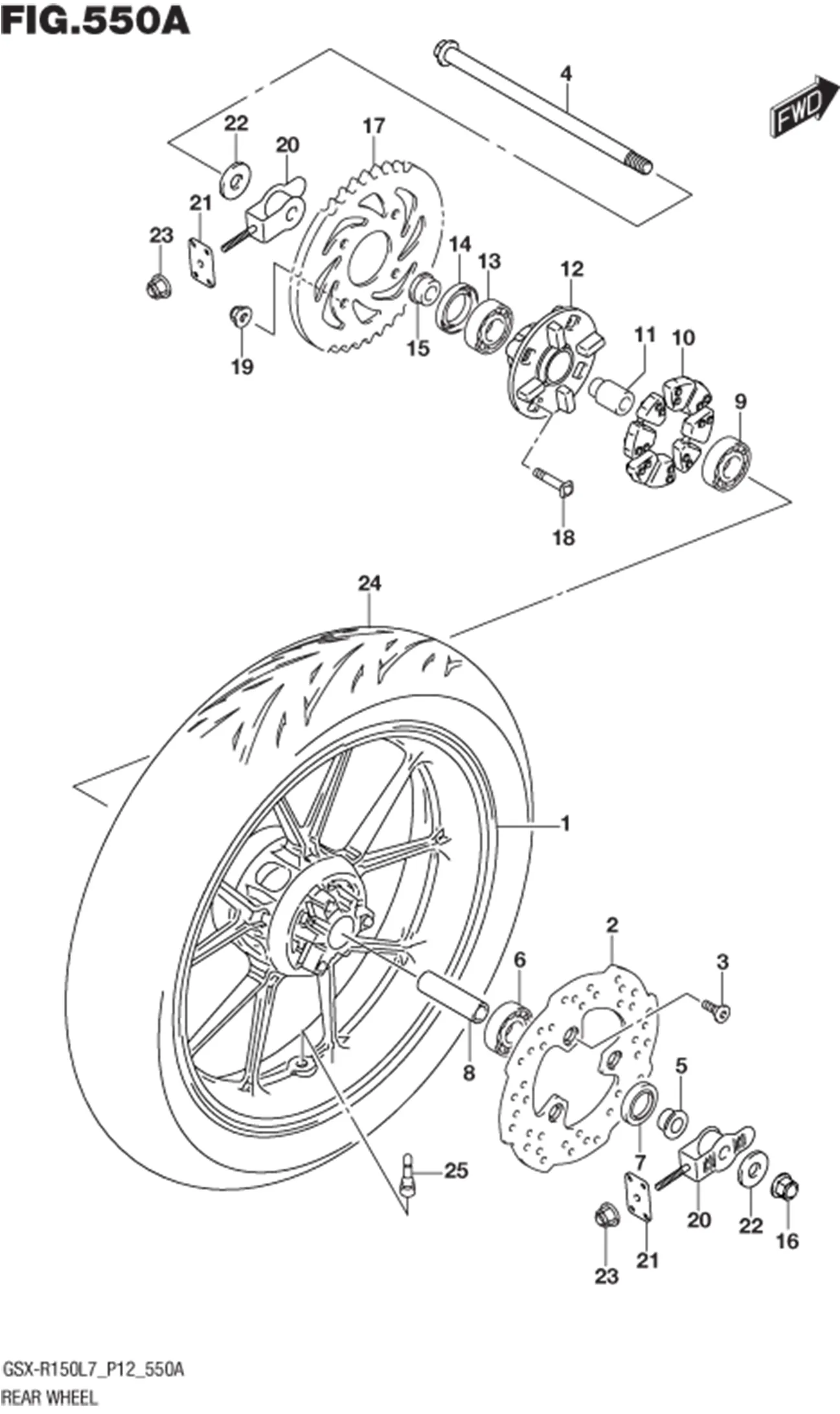

FIG.550A (1-E-14) REAR WHEEL

FIG.550A (1-E-14) REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
64841-34J00-000 SEAL, RR SPROCKET MTG DRUM 1 Rp9.500
DISCONTINUE
SUB: 95436B54J00N000		 1 -
DISCONTINUE
SUB: 95435B54J00N000		 1 -
DISCONTINUE
SUB: 95434B54J00N000		 1 -
43130-40J00-000 VALVE ASSY, WHEEL RIM (TR413) 1 Rp11.000
65110-23K00-000 TIRE, REAR(130/70-17M/C 62P NR88) 1 Rp851.000
08319-3106A-000
SUB: 08319B3106AN000		 NUT 2 Rp6.500
DISCONTINUE
SUB: 74123B54J00N000		 1 -
61445-34J00-000 WASHER, REAR AXLE 2 Rp9.500
61421-30H00-000 PLATE, CHAIN ADJUSTER GUIDE 2 Rp8.000
61410-34J00-000 ADJUSTER, CHAIN 2 Rp20.500
64511-23K00-000 SPROCKET, REAR (NT:45) 1 Rp111.000
08319-3114A-000 NUT 1 Rp53.000
64742-23K00-000 SPACER, REAR SPROCKET DRUM 1 Rp12.500
64111-23K00-019 WHEEL, REAR (17X3.50) (BLACK) 1 Rp976.000
08123-60047-000 BEARING 1 Rp39.000
64611-23K00-000 DRUM, REAR SPROCKET 1 Rp95.000
64761-23K00-000 RETAINER, REAR SPROCKET DRUM 1 Rp33.500
64651-35J00-000 ABSORBER, REAR HUB SHOCK 4 Rp8.000
08123-6202B-000
SUB: 08123-62027-000		 BEARING 1 Rp39.500
64731-23K00-000 SPACER, REAR WHEEL BEARING 1 Rp15.500
64841-23K00-000 SEAL, WHEEL BEARING RH 1 Rp9.500
08123-6202B-000
SUB: 08123-62027-000		 BEARING 1 Rp39.500
64741-23K00-000 SPACER, REAR AXLE, RH 1 Rp12.000
64711-23K00-000 AXLE, REAR 1 Rp47.000
59218-09G10-000 BOLT 3 Rp7.000
69211-25G50-000 DISC, REAR BRAKE 1 Rp120.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
