GSXS-150

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.401A (1-D-3) FRAME FIG.407A (1-D-4) STAND FIG.415A (1-E-9) FOOTREST FIG.420A (1-D-6) FUEL TANK FIG.423A (1-E-13) FUEL TANK COVER FIG.424A (1-E-15) FUEL TANK SIDE COVER FIG.445A (1-F-2) FRAME COVER FIG.451A (1-F-4) HEADLAMP HOUSING FIG.460A (1-F-5) FRONT FENDER FIG.462A (1-D-14) HANDLEBAR FIG.467A (1-D-15) HANDLE LEVER FIG.474A (1-E-2) REAR FENDER FIG.481A (1-F-12) COWLING BODY FIG.483A (1-F-13) UNDER COWLING FIG.485A (1-F-14) SIDE COWLING FIG.496 (1-G-1) LABEL FIG.505A (1-G-2) SEAT FIG.521A (1-E-8) FRONT FORK DAMPER FIG.524A (1-G-7) STEERING STEM FIG.530A (1-G-8) FRONT WHEEL FIG.535A (1-E-10) FRONT CALIPER FIG.536A (1-E-11) FRONT BRAKE HOSE FIG.537A (1-E-12) FRONT MASTER CYLINDER FIG.541A (1-E-13) REAR SWINGINGARM FIG.543A (1-G-140 REAR CUSHION LEVER FIG.550A (1-E-14) REAR WHEEL FIG.555A (1-E-15) REAR CALIPER FIG.558A (1-F-3) REAR MASTER CYLINDER FIG.915A (1-H-5) STRIPPING SET

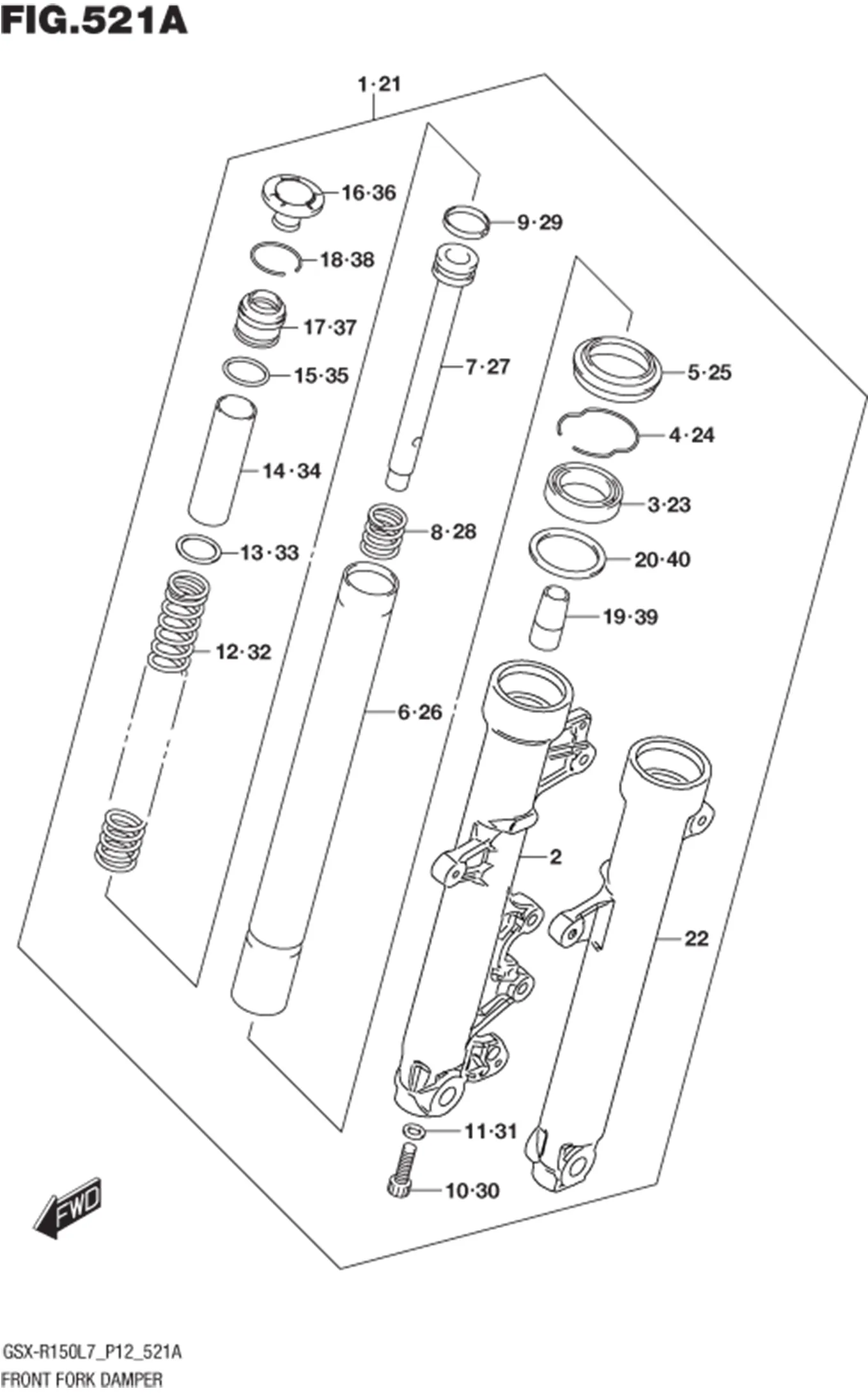

FIG.521A (1-E-8) FRONT FORK DAMPER

FIG.521A (1-E-8) FRONT FORK DAMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	51148-31030-000	GASKET	1	Rp4.000
	51168-23K00-000	SPACER, SEAL	1	Rp18.500
	51195-26B00-000	OIL LOCK PIECE	1	Rp29.000
	51169-48500-000	RING, STOPPER	1	Rp16.500
	51175-23K00-000	SEAT, SRRING	1	Rp34.500
	51351-23K00-000	CAP	1	Rp25.500
	51117-43EC0-000	O RING	1	Rp12.000
	51176-23K00-000	SPACER, SPRING	1	Rp27.500
	51172-36331-000	JOINT, SPRING	1	Rp33.500
	51171-23K00-000	SPRING, FRONT	1	Rp42.500
	51103-23K00-019	DAMPER ASSY, FRONT FORK RH	1	Rp744.000
	DISCONTINUE SUB: 51147-31030-000	BOLT	1	-
	51196-08K00-000	RING	1	Rp8.500
	51177-08K00-000	SPRING, REBOUND	1	Rp10.500
	51194-23K00-000	CYLINDER	1	Rp41.000
	51110-23K00-000	TUBE, INNER	1	Rp390.000
	51571-23K00-000	SEAL, DUST	1	Rp43.500
	51156-23K00-000	RING, SNAP	1	Rp7.500
	51153-23K00-000	OIL SEAL	1	Rp39.500
	51131-23K00-019	TUBE, OUTER RH (BLACK)	1	Rp315.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
