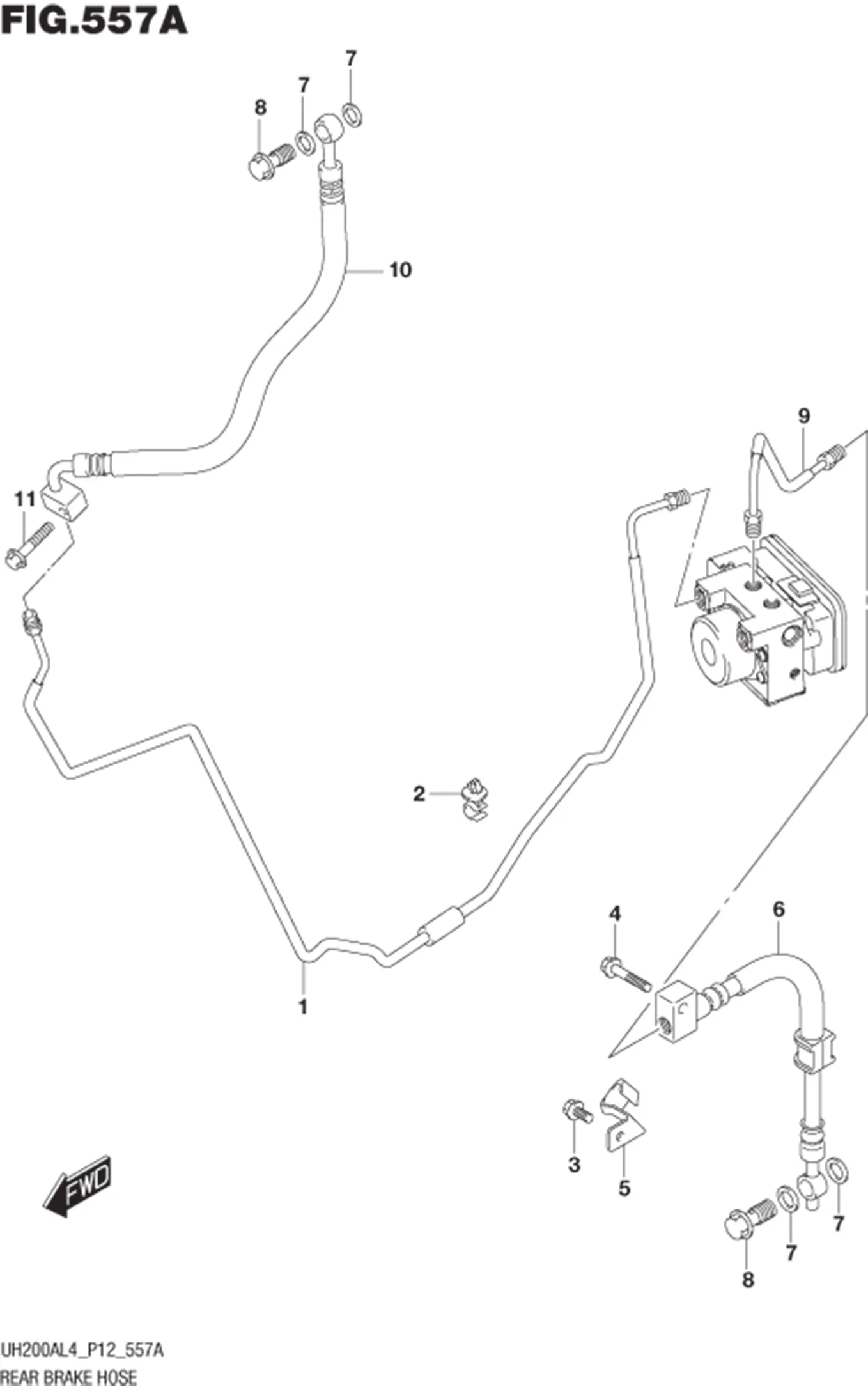

FIG.557A REAR BRAKE HOSE

FIG.557A REAR BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 69250-12J00-000		 PIPE, REAR BRAKE NO.1 1 -
2 09403-07331-000 CLAMP 1 Rp20.500
3 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
4 01547-0625A-000 BOLT 1 Rp6.500
5 69245-03H00-000 CLAMP, REAR BRAKE HOSE 1 Rp18.500
6 69480-12J00-000 HOSE, REAR BRAKE NO.2 1 Rp211.000
7 09168-10033-000 WASHER (10.2X15X1.4) 4 Rp8.500
8 09360-10062-000 UNION 2 Rp13.000
9 69260-12J10-000 PIPE, REAR BRAKE NO.2 1 Rp50.500
10 69440-12J00-000 HOSE, REAR BRAKE NO.1 1 Rp212.500
11 01547-0625A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
