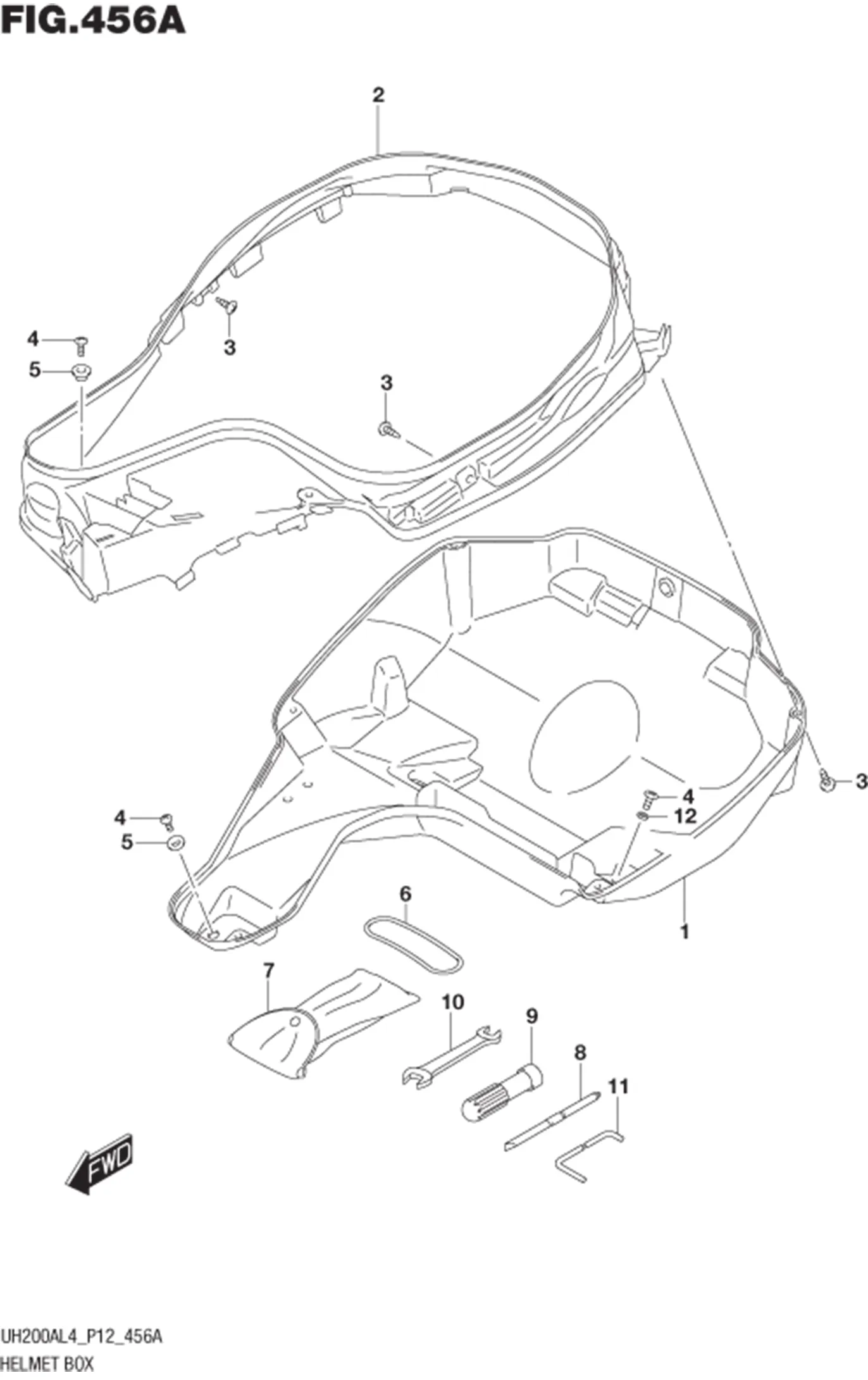

FIG.456A HELMET BOX

FIG.456A HELMET BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-12JA0-000 BOX, HELMET LOWER 1 Rp559.000
2 92221-12JB0-000
SUB: 92221-12JA0-000		 BOX, HELMET UPPER 1 Rp389.500
3 03541-0516A-000 SCREW 7 Rp3.500
4 02142-0616A-000 SCREW 4 Rp3.000
5 DISCONTINUE
SUB: 09169-06031-000		 WASHER 2 -
6 09280-57003-000 O RING (D:3.5,ID:56.5) 1 Rp43.000
7 96511-12JA0-000 BAG, TOOL 1 Rp16.500
8 09814-00L01-000 DRIVER 1 Rp22.500
9 09814-00L02-000 DRIVER GRIP 1 Rp12.500
10 96513-12JA0-000 SPANNER, OPEN (10X12) 1 Rp23.000
11 09816-00177-000 ROD, TOOL 1 Rp20.000
12 DISCONTINUE
SUB: 09160-06019-000		 WASHER 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
