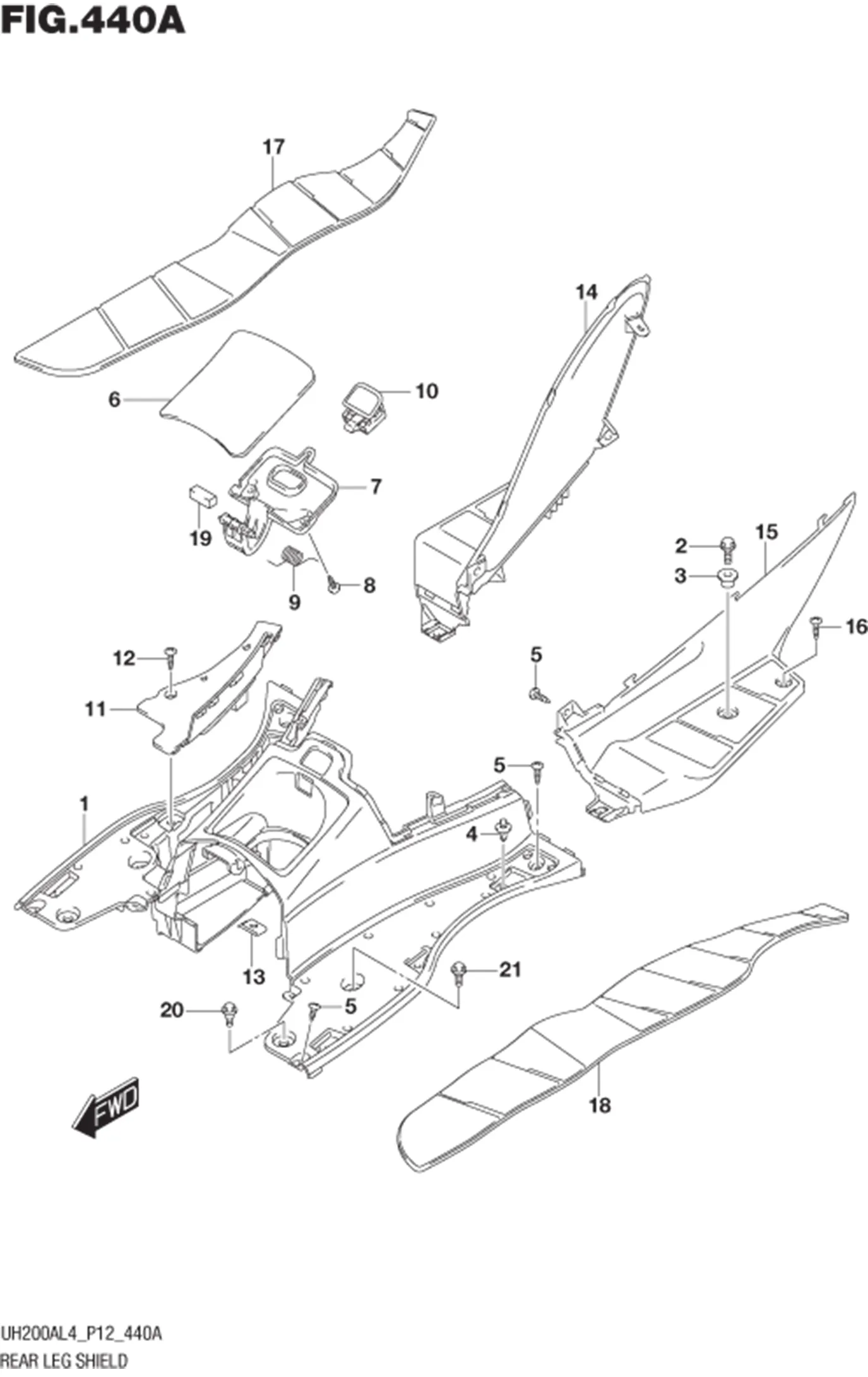

FIG.440A REAR LEG SHIELD

FIG.440A REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-12JB0-291
SUB: 48121-12JA0-291		 FOOTBOARD, FRONT (BLACK) 1 Rp618.000
2 48124-12JA0-000 BOLT 2 Rp5.500
3 48129-12JA0-000 SPACER (6.3X10X9.6) 2 Rp9.500
4 09409-08308-5ES CLIP (BLACK) 6 Rp15.000
5 03541-0516A-000 SCREW 10 Rp3.500
6 48125-12JA0-291 LID, FUEL (BLACK) 1 Rp94.500
7 48126-12JA0-000 ARM, FUEL LID 1 Rp116.000
8 03541-0516A-000 SCREW 2 Rp3.500
9 92163-03H00-000 SPRING 1 Rp6.500
10 92180-12JA0-291 LOCK ASSY (BLACK) 1 Rp170.500
11 48127-12JB0-291
SUB: 48127-12JA0-291		 LID, BATTERY (BLACK) 1 Rp124.500
12 03541-0516A-000 SCREW 1 Rp3.500
13 09148-05038-000 NUT 3 Rp4.000
14 48122-12JB0-291
SUB: 48122-12JA0-291		 FOOTBOARD, RH (BLACK) 1 Rp108.500
15 48123-12JA0-291 FOOTBOARD, LH (BLACK) 1 Rp108.500
16 03541-0520B-000 SCREW 2 Rp3.000
17 48211-12JC0-291
SUB: 48211-12JA0-291		 MAT, FLOOR RH (BLACK) 1 Rp266.000
18 48221-12JA0-291 MAT, FLOOR LH (BLACK) 1 Rp325.500
19 48128-12JA0-000 CUSHION, FUEL LID 1 Rp4.500
20 09111-06072-000 BOLT (6X17.8) 2 Rp3.500
21 09111-06102-000 BOLT (6X14.8) 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
