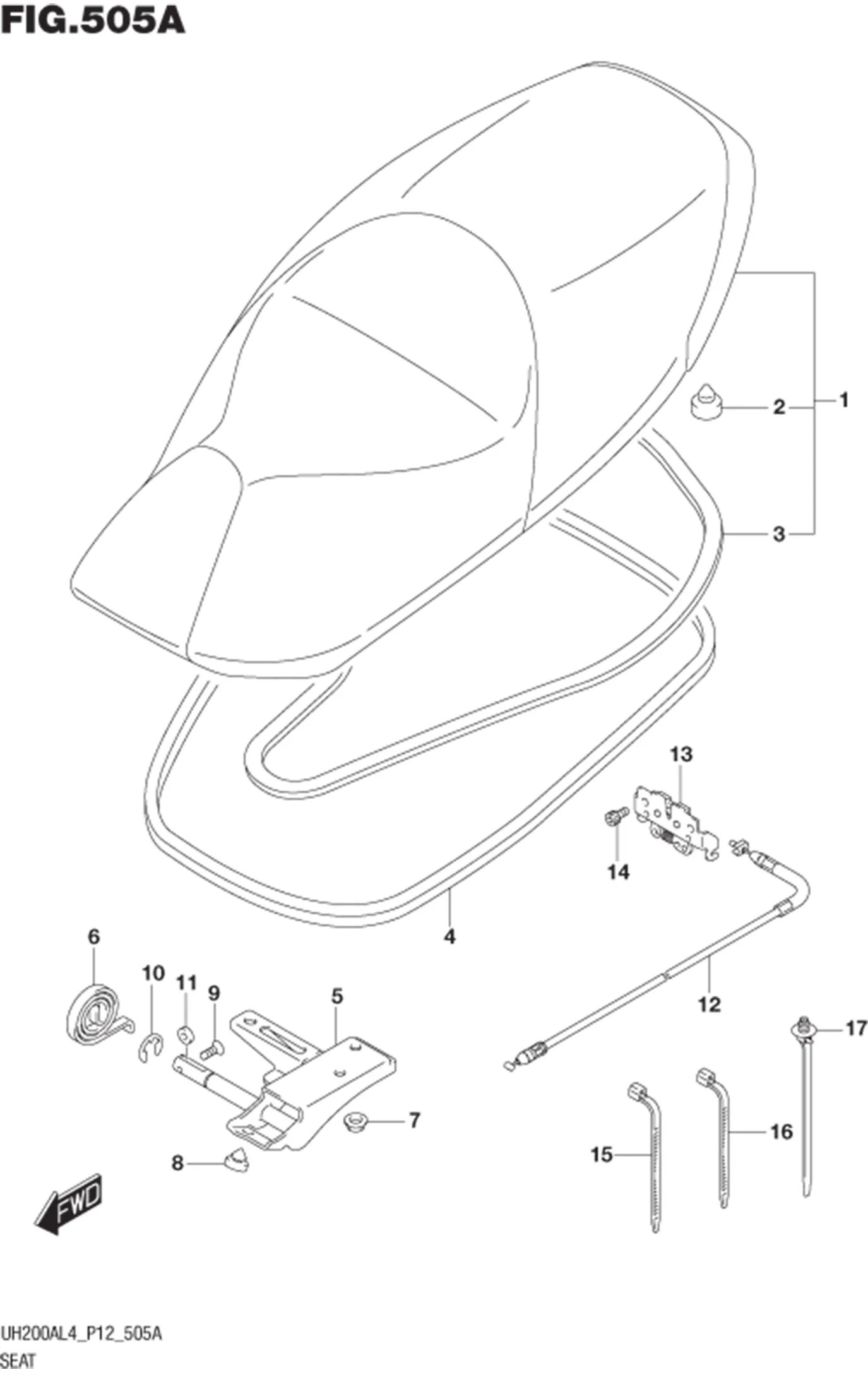

FIG.505A SEAT

FIG.505A SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-12811-A0R
SUB: 45100-12J10-AJS		 SEAT ASSY (BLACK/GRAY) 1 Rp3.263.500
2 45148-20G80-000 ?CUSHION, SEAT MOUNT REAR 2 Rp3.500
3 45148-12J00-000 ?CUSHION, SEAT 1 Rp34.000
4 45211-12J00-000 MOLDING, SEAT 1 Rp125.000
5 45250-12J00-000 BRACKET, SEAT HINGE UPPER 1 Rp204.500
6 45275-03H00-000 SPRING 1 Rp94.000
7 08316-1006A-000 NUT 3 Rp2.000
8 09321-10001-000
SUB: 09321-10002-000		 CUSHION (11.5X22X20) 1 Rp6.500
9 02122M0512A-000
SUB: 02122-0512A-000		 SCREW 1 Rp3.500
10 08332-1112A-000 E RING 1 Rp14.000
11 09180-05004-000 SPACER 1 Rp5.500
12 45280-12J10-000 CABLE, SEAT LOCK 1 Rp173.500
13 45700-12J00-000 BRACKET COMP,STRIKER SUPPORT 1 Rp98.500
14 07130-0612A-000 BOLT 2 Rp3.500
15 09407-18402-000 CLAMP (L:165) 1 Rp8.000
16 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
17 09407-17403-000 CLAMP (L:154) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
