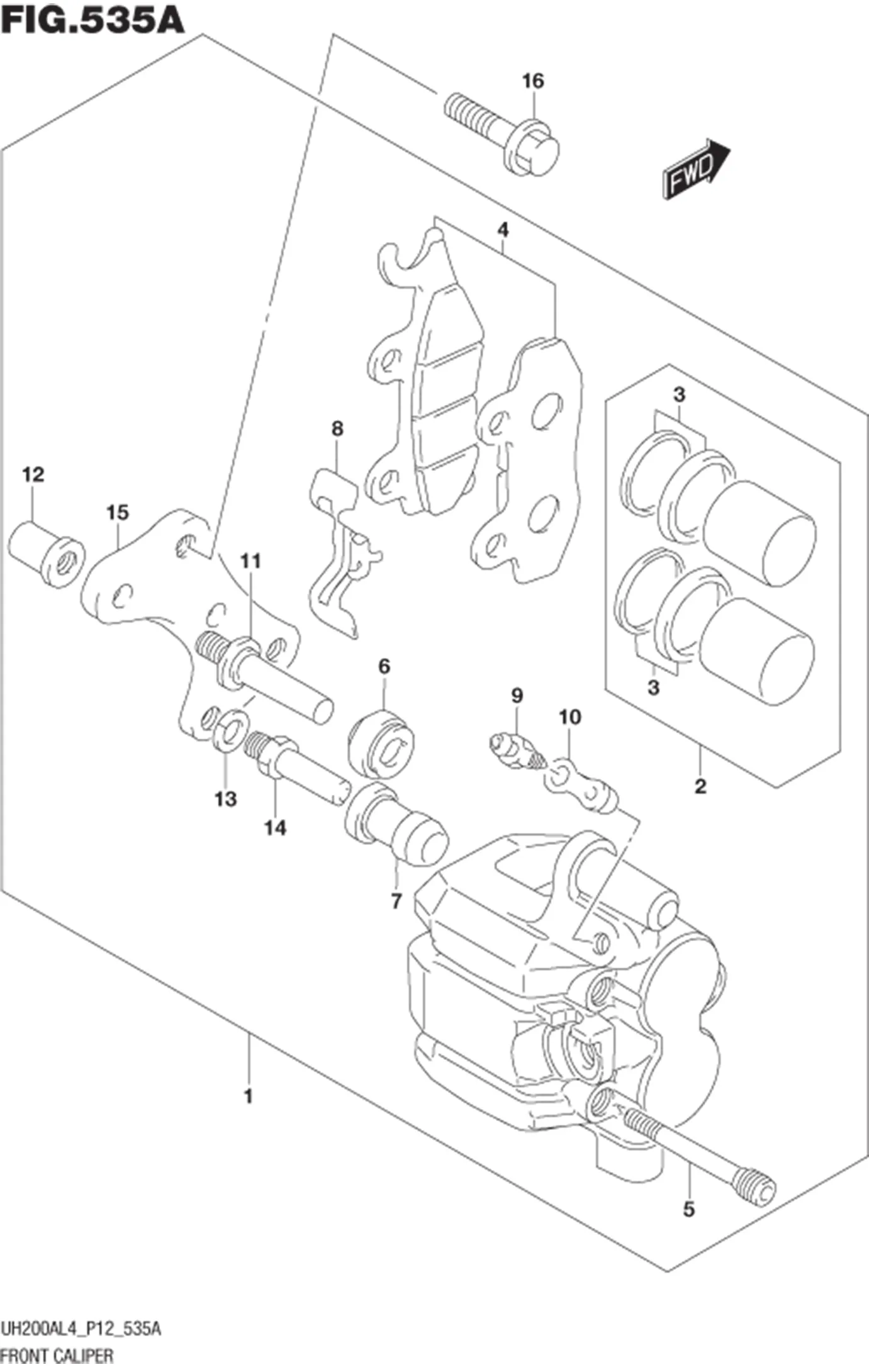

FIG.535A FRONT CALIPER

FIG.535A FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-21D51-000 CALIPERS ASSY, FRONT 1 Rp1.182.000
2 69100-21860-000 ?PISTON SET 1 Rp191.000
3 59300-21860-000 ??SEAL SET, PISTON 1 Rp184.500
4 59100-21890-000 ?PAD SET 1 Rp250.000
5 59345-14600-000 ?PIN 2 Rp35.000
6 59303-14500-000 ?BOOT 1 Rp12.500
7 59386-13A00-000 ?BOOT 1 Rp14.000
8 69115-31D10-000 ?SPRING 1 Rp26.500
9 59121-01A00-000 ?BLEEDER 1 Rp14.500
10 59122-46H00-000 ?CAP, BLEEDER 1 Rp32.500
11 59387-12J00-000 ?PIN 1 Rp43.000
12 59388-00B20-000 ?NUT 1 Rp28.500
13 59314-13A00-000 ?WASHER 1 Rp3.000
14 59382-13A00-000 ?BOLT 1 Rp13.500
15 59351-21D00-000 ?BRACKET 1 Rp96.500
16 01550-0830A-000 BOLT CALIPER 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
