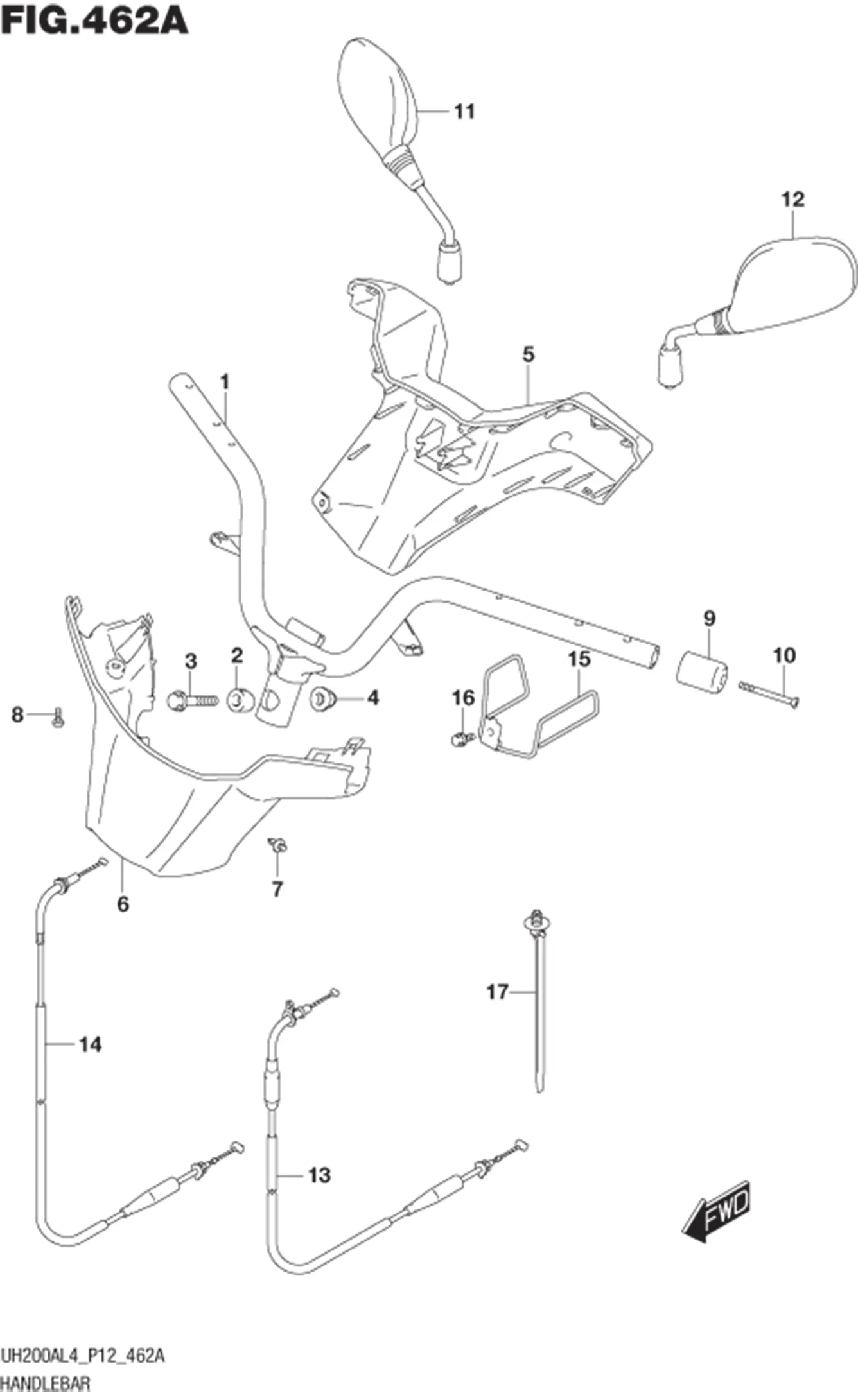

FIG.462A HANDLEBAR

FIG.462A HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-12J02-000
SUB: 56110-12J01-000		 HANDLEBAR 1 Rp491.000
2 51358-09G00-000
SUB: 51358-09G10-000		 STOPPER, HANDLEBAR 1 Rp8.000
3 09103-10126-000 BOLT (10X48) 1 Rp28.500
4 08319-3110A-000 NUT 1 Rp4.500
5 56311-12JB0-291
SUB: 56311-12JA1-291		 COVER, HANDLE UPPER (BLACK) 1 Rp358.000
6 56321-12JB0-291
SUB: 56321-12JA0-291		 COVER, HANDLE LOWER (BLACK) 1 Rp281.500
7 09409-06314-5PK CLIP (BLACK) 2 Rp3.500
8 02142-0512B-000 SCREW 2 Rp5.500
9 56278-12J01-000
SUB: 56278-12J00-000		 BALANCER 2 Rp127.500
10 02122-0660B-000 SCREW 2 Rp9.500
11 56500-12J04-000
SUB: 56500-12J00-000		 MIRROR ASSY, RR VIEW RH 1 Rp164.500
12 56600-12J04-000
SUB: 56600-12J00-000		 MIRROR ASSY, RR VIEW LH 1 Rp164.500
13 58300-12J00-000 CABLE ASSY, THROTTLE NO.1 1 Rp212.500
14 58300-12J10-000 CABLE ASSY, THROTTLE NO.2 1 Rp193.500
15 58620-03H00-000 GUIDE, CABLE 1 Rp54.000
16 01550-0612A-000 BOLT 1 Rp3.500
17 09407-17403-000 CLAMP (L:154) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
