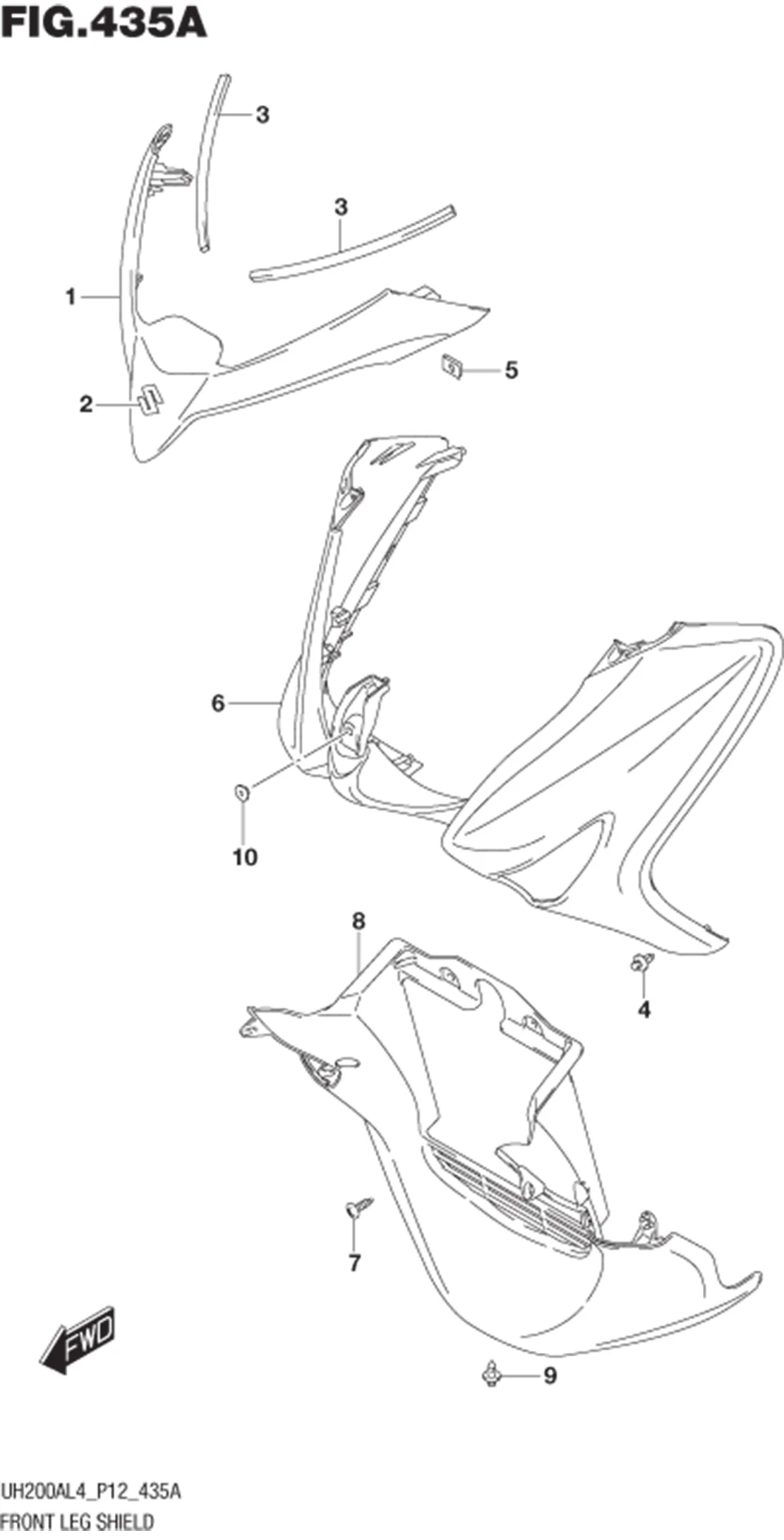

FIG.435A FRONT LEG SHIELD

FIG.435A FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48131-12JB0-YKV
SUB: 48131-12JA0-YKV		 COVER, FRONT (BLACK) 1 Rp383.000
2 68641-14G00-000 EMBLEM, "S" 1 Rp223.000
3 48132-12JA0-000 CUSHION 2 Rp10.500
4 09409-08308-5ES CLIP (BLACK) 4 Rp15.000
5 09148-05038-000 NUT 2 Rp4.000
6-1 48111-12JB0-W6V
SUB: 48111-12JA0-W6V		 SHIELD, LEG FRONT (SILVER) 1 Rp1.037.500
6-2 48111-12JB1-YKV
SUB: 48111-12JA0-YKV		 SHIELD, LEG FRONT (BLACK) 1 Rp1.121.500
6-3 48111-12JB1-YUH
SUB: 48111-12JA0-YUH		 SHIELD, LEG FRONT (WHITE) 1 Rp1.050.500
7 03541-0516A-000 SCREW 4 Rp3.500
8 48137-12JB0-26B SHIELD, LEG LOWER (GRAY) 1 Rp615.000
9 09409-08308-5ES CLIP (BLACK) 4 Rp15.000
10 09320-06026-000 CUSHION 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
