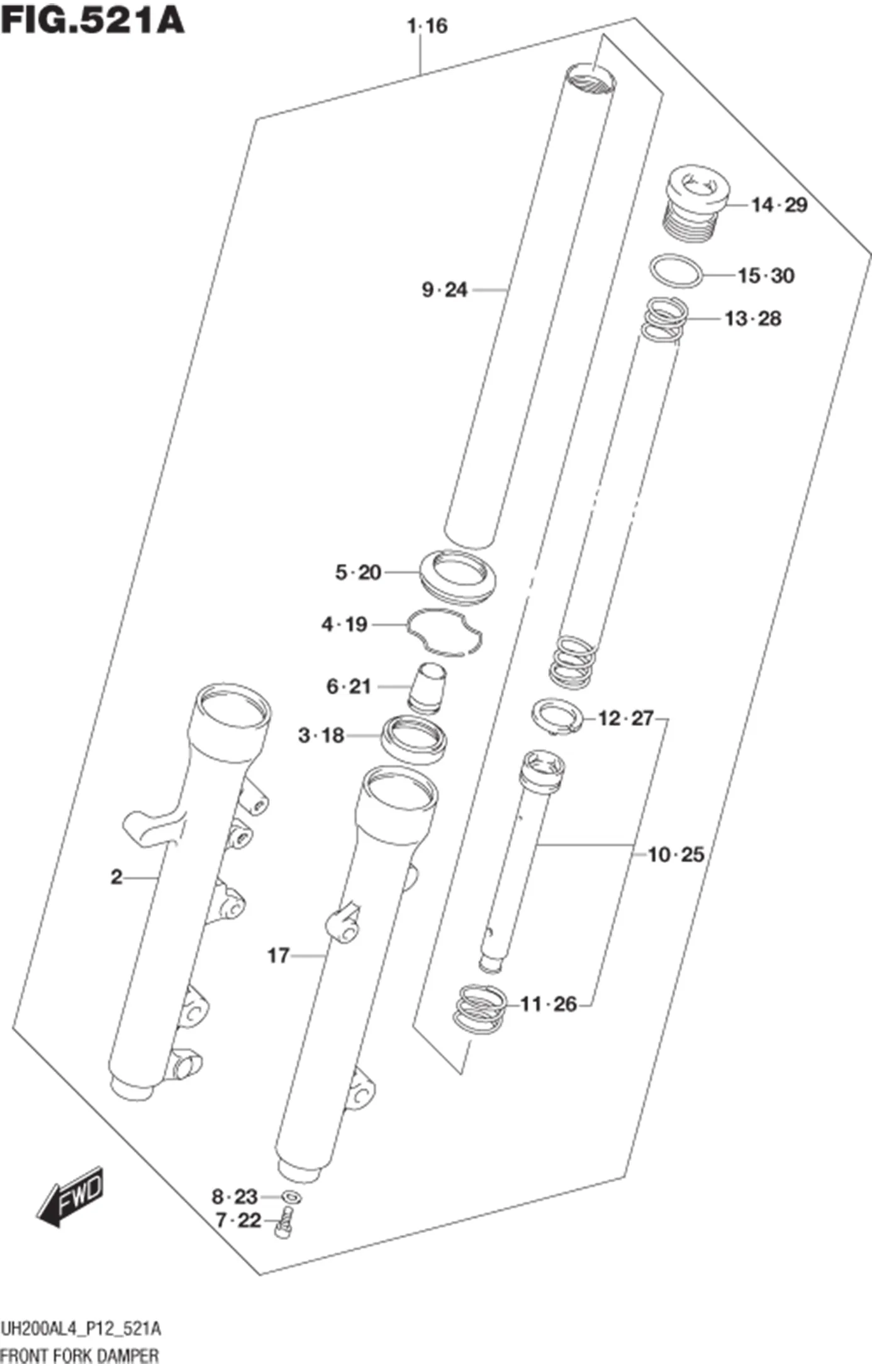

FIG.521A FRONT FORK DAMPER

FIG.521A FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-12J30-000 DAMPER ASSY, FRONT FORK RH 1 Rp3.988.500
2 51131-12J30-000 ?TUBE, OUTER RH 1 Rp1.629.000
3 51153-03H00-000 ?OIL SEAL 1 Rp315.500
4 51156-03H00-000 ?RING, STOPPER 1 Rp141.000
5 51173-03H00-000 ?SEAL, DUST 1 Rp318.000
6 51195-03H00-000 ?PIECE, OIL LOCK 1 Rp152.000
7 51147-03H00-000 ?BOLT 1 Rp68.000
8 51148-03H00-000 ?GASKET 1 Rp145.000
9 51110-12J00-000 ?TUBE, INNER 1 Rp2.854.000
10 51146-03H00-000 ?CYLINDER 1 Rp440.000
11 51177-03H00-000 ??SPRING, REBOUND 1 Rp68.000
12 51196-03H00-000 ??RING, PISTON 1 Rp134.500
13 51171-03H00-000 ?SPRING, FRONT 1 Rp256.000
14 51351-03H00-000 ?CAP 1 Rp274.500
15 51117-03H00-000 ?O RING 1 Rp109.500
16 51104-12J20-000 DAMPER ASSY, FRONT FORK LH 1 Rp4.019.000
17 51141-12J00-000 ?TUBE, OUTER LH 1 Rp1.746.500
18 51153-03H00-000 ?OIL SEAL 1 Rp315.500
19 51156-03H00-000 ?RING, STOPPER 1 Rp141.000
20 51173-03H00-000 ?SEAL, DUST 1 Rp318.000
21 51195-03H00-000 ?PIECE, OIL LOCK 1 Rp152.000
22 51147-03H00-000 ?BOLT 1 Rp68.000
23 51148-03H00-000 ?GASKET 1 Rp145.000
24 51110-12J00-000 ?TUBE, INNER 1 Rp2.854.000
25 51146-03H00-000 ?CYLINDER 1 Rp440.000
26 51177-03H00-000 ??SPRING, REBOUND 1 Rp68.000
27 51196-03H00-000 ??RING, PISTON 1 Rp134.500
28 51171-03H00-000 ?SPRING, FRONT 1 Rp256.000
29 51351-03H00-000 ?CAP 1 Rp274.500
30 51117-03H00-000 ?O RING 1 Rp109.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
