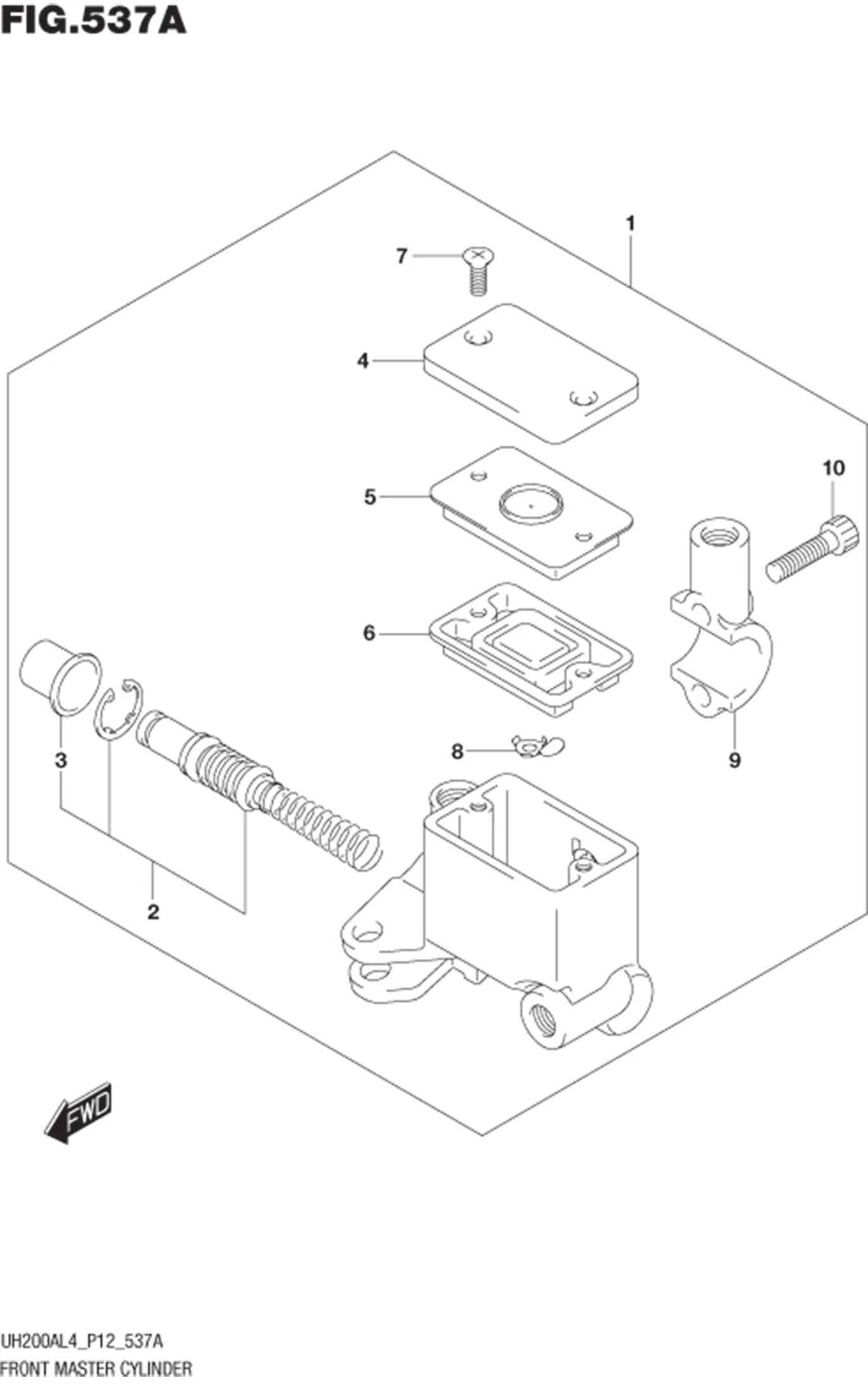

FIG.537A FRONT MASTER CYLINDER

FIG.537A FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-03H30-000
SUB: 59600-03H01-000		 CYLINDER ASSY, FRONT MASTER 1 Rp706.500
2 59600-03820-000 ?PISTON/CUP SET 1 Rp221.500
3 59666-44300-000 ??BOOT 1 Rp16.000
4 59669-14F10-000 ?CAP 1 Rp23.500
5 59668-14F00-000 ?PLATE, DIAPHRAGM 1 Rp73.000
6 DISCONTINUE
SUB: 59667-04700-000		 ?DIAPHRAGM 1 -
7 69689-49300-000 ?SCREW 2 Rp3.000
8 59664-32F00-000 ?PROTECTOR 1 Rp20.500
9 59671-32F00-000 ?HOLDER 1 Rp147.000
10 59675-02FA0-000 ?BOLT 2 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
