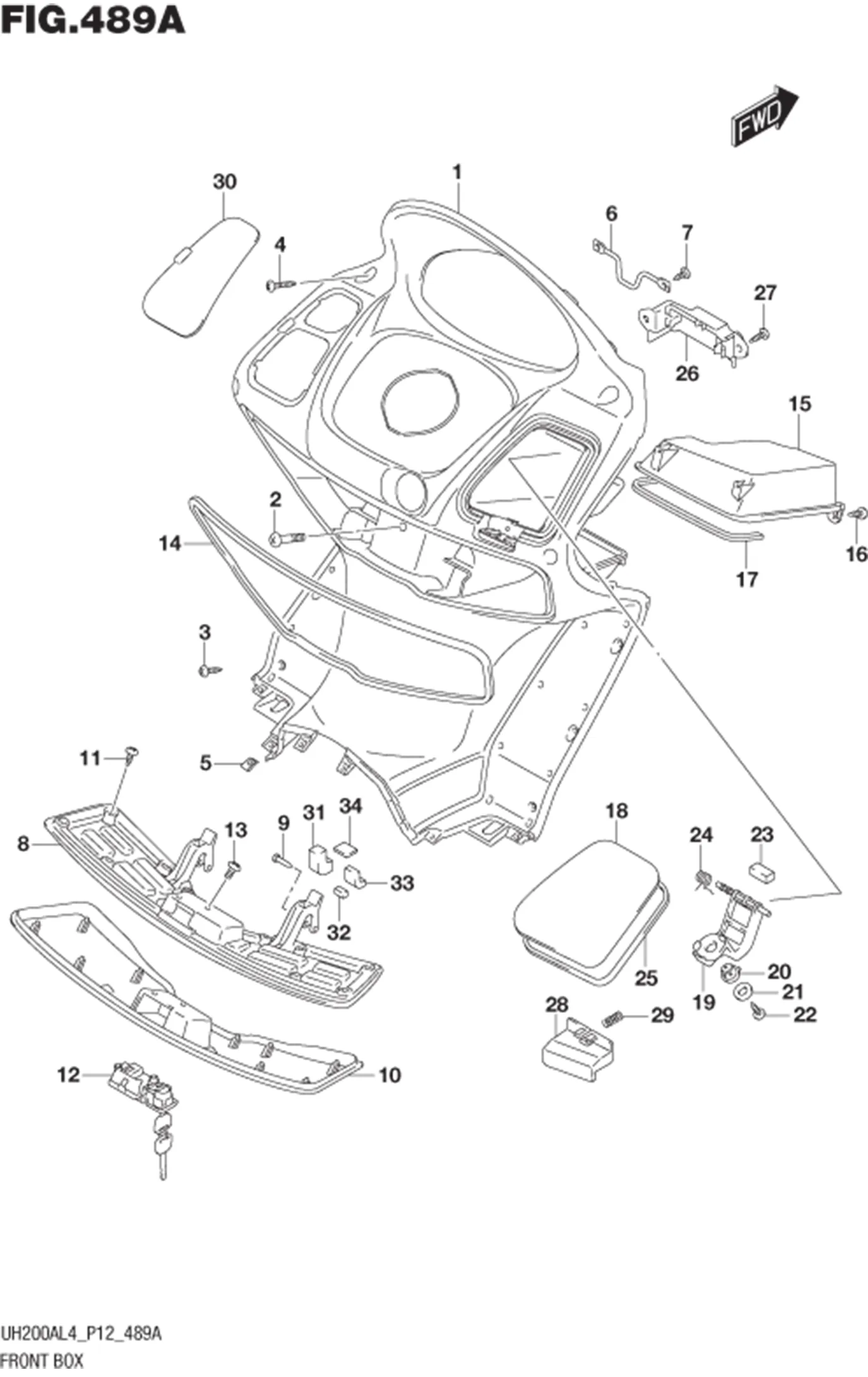

FIG.489A FRONT BOX

No	No. Part	Description	Qty	Price Per Pcs
1	92111-12JC0-291 SUB: 92111-12JA1-291	BOX, FRONT (BLACK)	1	Rp1.349.500
2	92124-12JA0-000	SCREW (6X12)	1	Rp7.000
3	03541-0516A-000	SCREW	8	Rp3.500
4	03541-0525B-000	SCREW	2	Rp4.500
5	09148-05038-000	NUT	6	Rp4.000
6	92171-03H00-000	STRIKER, FRONT BOX HINGE	1	Rp21.000
7	03541-0512A-000	SCREW	2	Rp3.500
8	92122-12JB0-291 SUB: 92122-12JA0-000	LID, INNER	1	Rp277.000
9	73423-50G00-000	PIN	2	Rp30.000
10	92121-12JB0-291 SUB: 92121-12JA0-291	LID, OUTER (BLACK)	1	Rp211.000
11	03541-0412A-000	SCREW	12	Rp3.500
12	92100-12810-000	LOCK SET FRONT BOX	1	Rp238.500
13	02142-0512A-000	SCREW	2	Rp3.500
14	92114-03H00-000	CUSHION, BOX	1	Rp108.500
15	92123-12JA0-291	BOX, INNER (BLACK)	1	Rp136.000
16	03541-0516A-000	SCREW	1	Rp3.500
17	92141-12JA0-000	CUSHION, INNER BOX	1	Rp5.500
18	92142-12JB0-291 SUB: 92142-12JA0-291	LID, FRONT PANEL (BLACK)	1	Rp73.000
19	92148-12JA0-000	ARM, LID	1	Rp80.500
20	92149-12JA0-000	STOPPER, FORONT PANEL LID	1	Rp23.000
21	09320-09004-000	CUSHION	1	Rp19.000
22	DISCONTINUE SUB: 09132-05041-000	SCREW (5X16)	1	-
23	92146-12JA0-000	CUSHION, FRONT PANEL LID NO.3	1	Rp5.500
24	92145-03H00-000	SPRING, FRONT PANEL LID NO.1	1	Rp7.000
25	92147-12JA0-000	CUSHION, FRONT PANEL LID NO.1	1	Rp7.000
26	92158-12JA0-000	RETAINER, FRONT PANEL	1	Rp56.000
27	03541-0516B-000	SCREW	2	Rp13.000
28	92143-12JA0-291	LOCK, FRONT PANEL BOX (BLACK)	1	Rp58.000
29	92144-14G01-000	SPRING	1	Rp4.500
30	92112-12JB0-291 SUB: 92112-12JA0-291	LID, LH (BLACK)	1	Rp62.000
31	92151-12JA0-000	CUSHION, BOX NO.3	2	Rp8.500
32	92152-12JA0-000	CUSHION, BOX NO.4	2	Rp4.500
33	92153-12JA0-000	CUSHION, BOX NO.5	2	Rp5.500
34	92154-12JA0-000	CUSHION, BOX NO.6	2	Rp4.500
