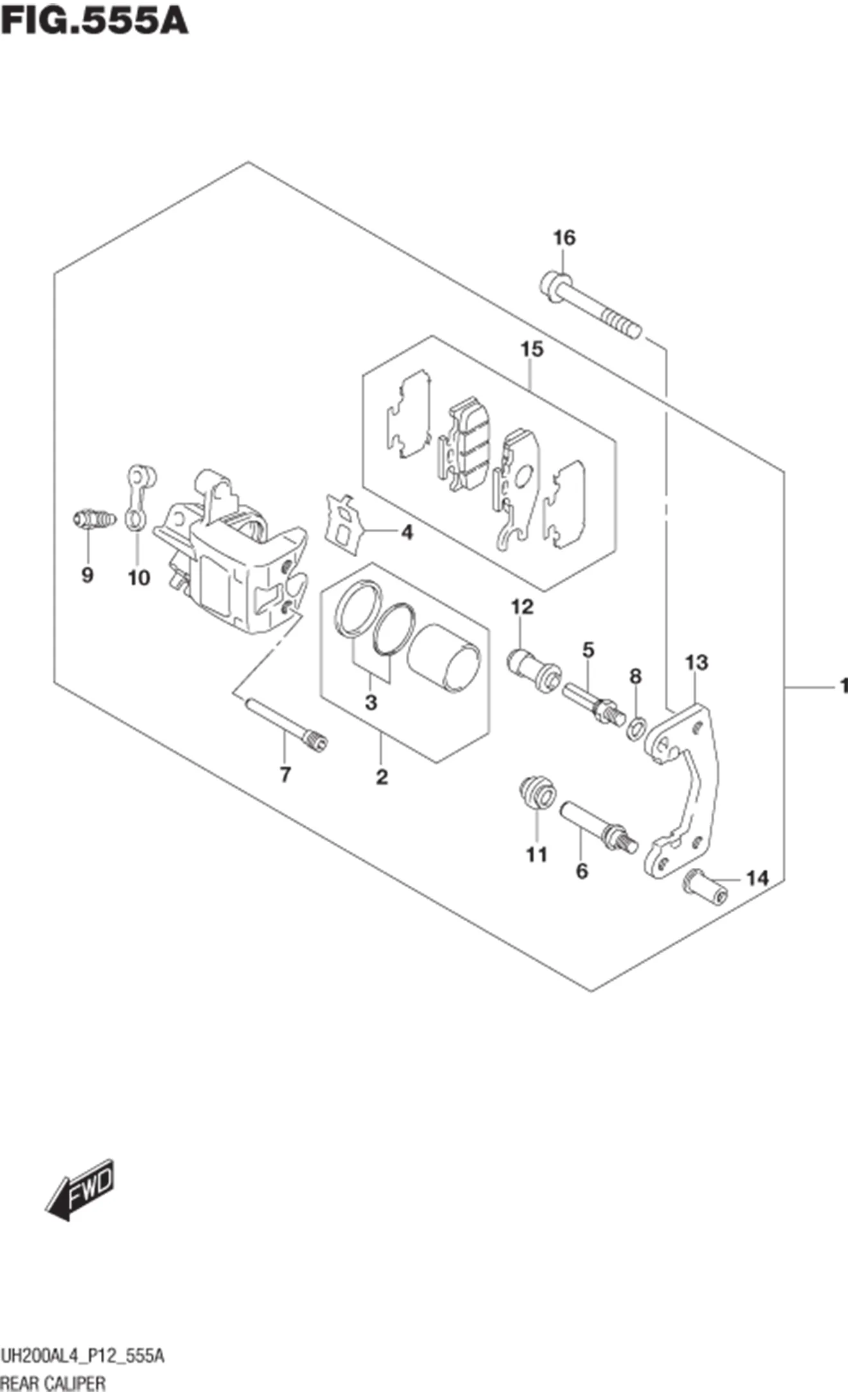

FIG.555A REAR CALIPER

FIG.555A REAR CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 69100-03H20-000 CALIPER ASSY, REAR 1 Rp2.471.500
2 69100-03830-000 ?PISTON SET 1 Rp141.000
3 59100-38860-000 ??SEAL SET, PISTON 1 Rp37.500
4 59315-27C10-000 ?SPRING, PAD 1 Rp68.500
5 59382-13A00-000 ?PIN 1 Rp13.500
6 59387-00B20-000 ?PIN 1 Rp25.500
7 69141-03H00-000 ?PIN, HANGER 2 Rp57.500
8 59314-13A00-000 ?WASHER, SPRING 1 Rp3.000
9 59121-01A00-000 ?BLEEDER 1 Rp14.500
10 59122-46H00-000 ?CAP, BLEEDER 1 Rp32.500
11 59303-14500-000 ?BOOT 1 Rp12.500
12 59386-13A00-000 ?BOOT, BUSH 1 Rp14.000
13 69151-03H00-000 ?BRACKET, REAR 1 Rp165.000
14 59388-03H00-000 ?NUT 1 Rp24.500
15 69101-03820-000 ?PAD & SHIM SET 1 Rp1.020.000
16 07120-0855B-000 BOLT 2 Rp73.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
