Burgman

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.401A FRAMEFIG.407A STANDFIG.410A PILLION RIDER HANDLEFIG.420A FUEL TANKFIG.435A FRONT LEG SHIELDFIG.438A SIDE LEG SHIELDFIG.440A REAR LEG SHIELDFIG.445A FRAME COVERFIG.454A WINDSCREENFIG.456A HELMET BOXFIG.460A FRONT FENDERFIG.462A HANDLEBARFIG.467A HANDLE LEVERFIG.474A REAR FENDERFIG.489A FRONT BOXFIG.496A LABELFIG.505A SEATFIG.521A FRONT FORK DAMPERFIG.524A STEERING STEMFIG.530A FRONT WHEELFIG.533A HYDRAULIC UNITFIG.535A FRONT CALIPERFIG.536A FRONT BRAKE HOSEFIG.537A FRONT MASTER CYLINDERFIG.541A REAR SWINGINGARMFIG.550A REAR WHEELFIG.555A REAR CALIPERFIG.557A REAR BRAKE HOSEFIG.558A REAR MASTER CYLINDERFIG.910A GRIP HEATER SET (OPTIONAL)

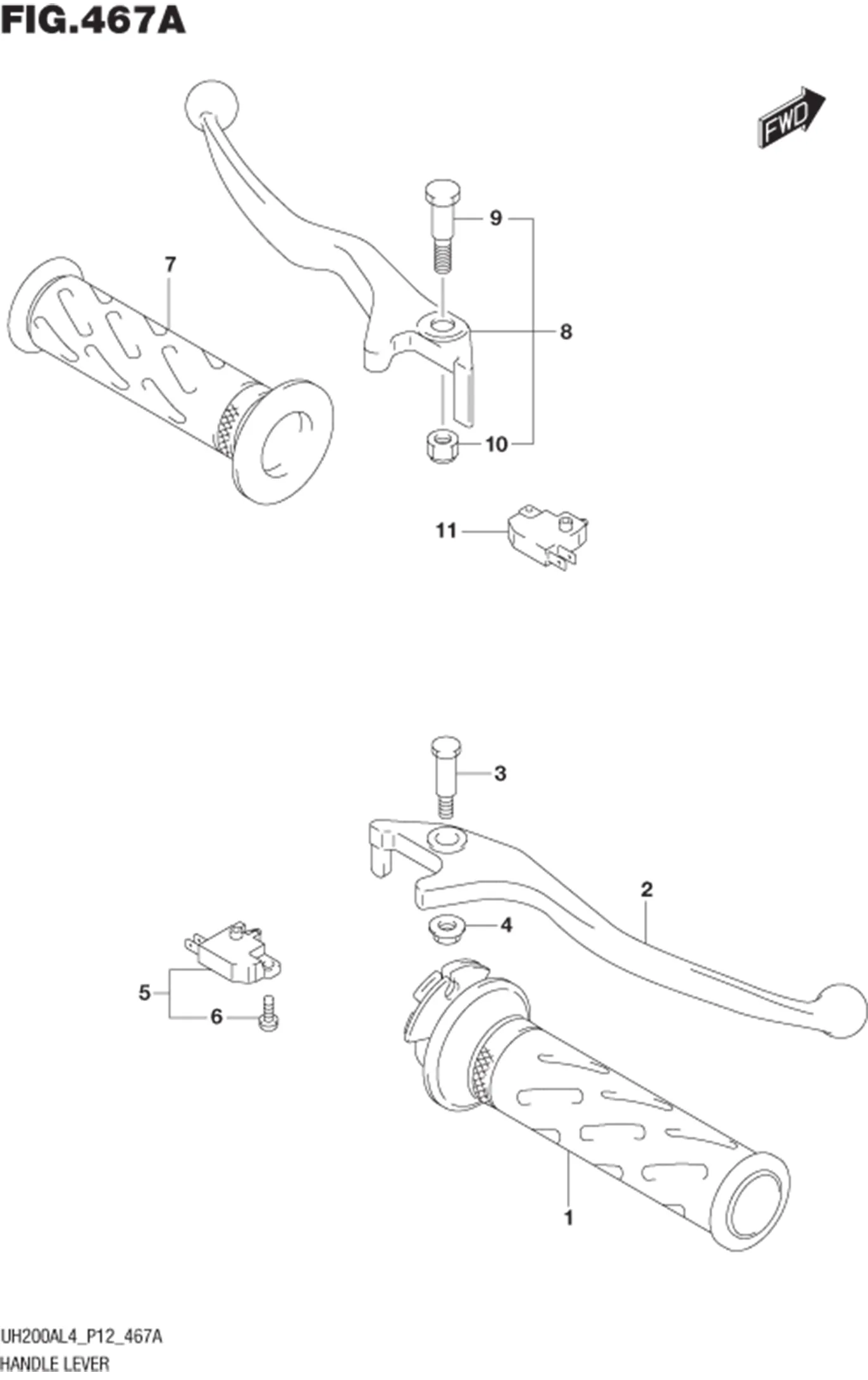

FIG.467A HANDLE LEVER

FIG.467A HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-29G10-291 GRIP, THROTTLE (BLACK) 1 Rp59.500
2 57421-14F00-000 LEVER, FRONT BRAKE 1 Rp456.000
3 57431-04F00-000 BOLT, BRAKE LEVER PIVOT 1 Rp31.500
4 57433-09F00-000 NUT, LEVER, PIVOT 1 Rp3.500
5 57460-14J02-000
SUB: 57460-14J01-000		 SWITCH ASSY, STOP 1 Rp265.000
6 DISCONTINUE
SUB: 57465-17C00-000		 ?SCREW 1 -
7 57211-22D01-000
SUB: 57211-22D30-291		 GRIP, LH (BLACK) 1 Rp38.500
8 57500-14F00-000 LEVER ASSY, REAR BRAKE 1 Rp261.500
9 57431-04F00-000 ?BOLT, BRAKE LEVER PIVOT 1 Rp31.500
10 08319-2106B-000 ?NUT 1 Rp4.000
11 57560-14J02-000
SUB: 57560-14J01-000		 SWITCH ASSY, REAR BRAKE 1 Rp246.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
