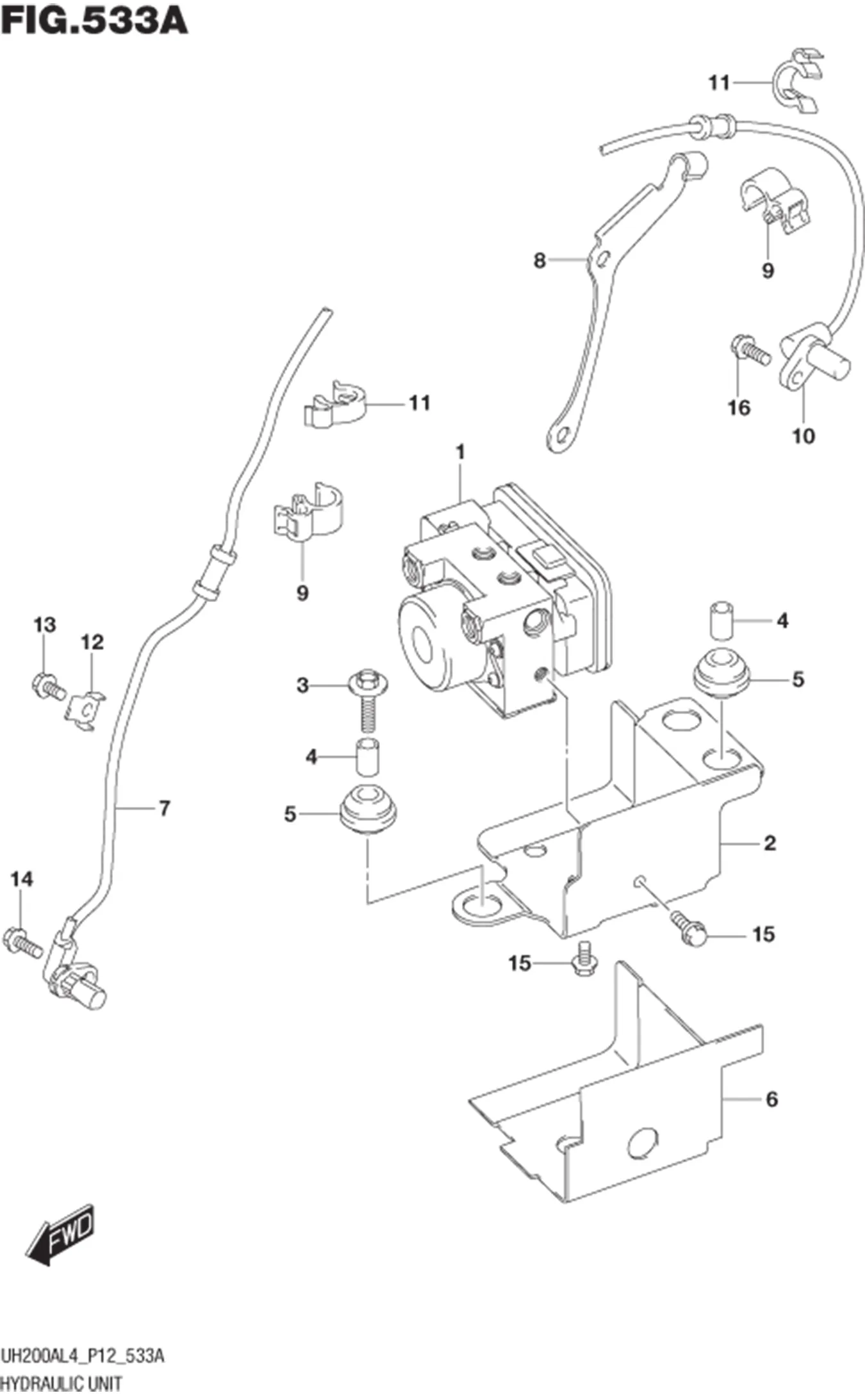

FIG.533A HYDRAULIC UNIT

FIG.533A HYDRAULIC UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 55610-12J00-000 UNIT ASSY, HYDRAULIC ABS 1 Rp9.905.500
2 55660-12J00-000 HOLDER, HYDRAULIC UNIT 1 Rp105.500
3 09116-06150-000 BOLT (6X25) 1 Rp19.000
4 55662-10G00-000 SPACER, HYDRAULIC UNIT MTG 3 Rp39.000
5 55663-10G00-000 RUBBER, HYDR UNIT MTG 3 Rp42.500
6 55664-12J00-000 SHIELD, ABS UNIT HEAT 1 Rp100.000
7 55710-12J10-000 SENSOR, FR WHEEL ABS 1 Rp578.000
8 65731-12J00-000 CLAMP, ABS SENSOR LEAD REAR 1 Rp27.000
9 09408-00266-000 CLAMP 2 Rp15.000
10 65710-12J10-000 SENSOR, RR WHEEL ABS 1 Rp541.500
11 09408-00307-000 CLAMP 5 Rp17.500
12 34938-14F00-000 GUIDE, ABS SENSOR LEAD 1 Rp36.000
13 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
14 01547-0616A-000 BOLT 1 Rp6.500
15 01550-0612A-000 BOLT 2 Rp3.500
16 01547-0616A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
