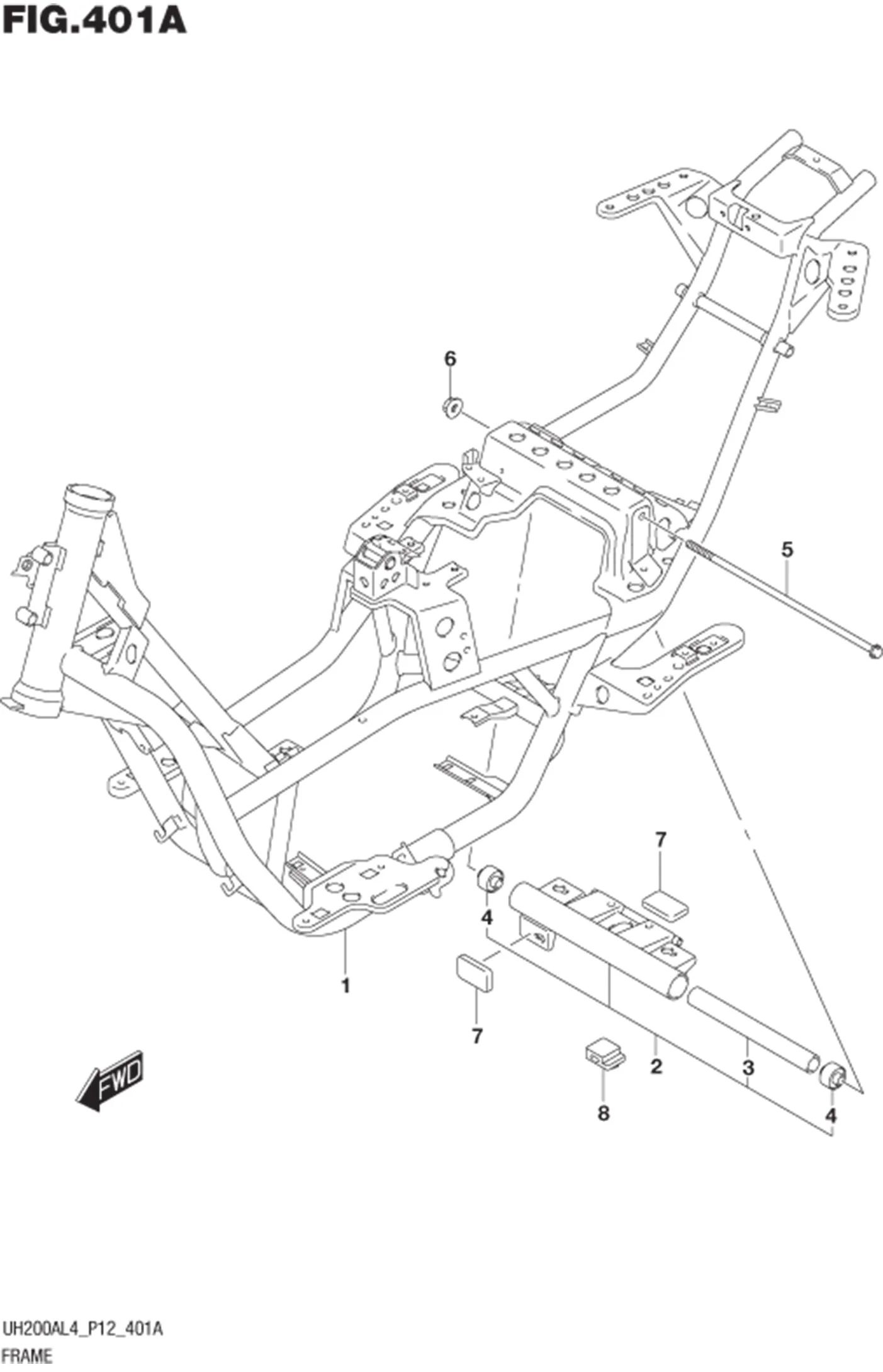

FIG.401A FRAME

FIG.401A FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-12J10-000 FRAME 1 Rp6.457.000
2 41180-12811-000
SUB: 41180-12810-000		 BRACKET SET, CRANKCASE 1 Rp608.000
3 41170-12J00-000 ?SPACER, BRACKET CENTER 1 Rp48.000
4 41184-12J00-000 ?BUSH 2 Rp152.500
5 09103-12062-000 BOLT (12X307) 1 Rp189.500
6 08319-3112A-000 NUT 1 Rp7.000
7 41185-49F00-000 CUSHION, SWING STOP 3 Rp19.500
8 41187-03H00-000 CUSHION, SWING STOP NO.2 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
