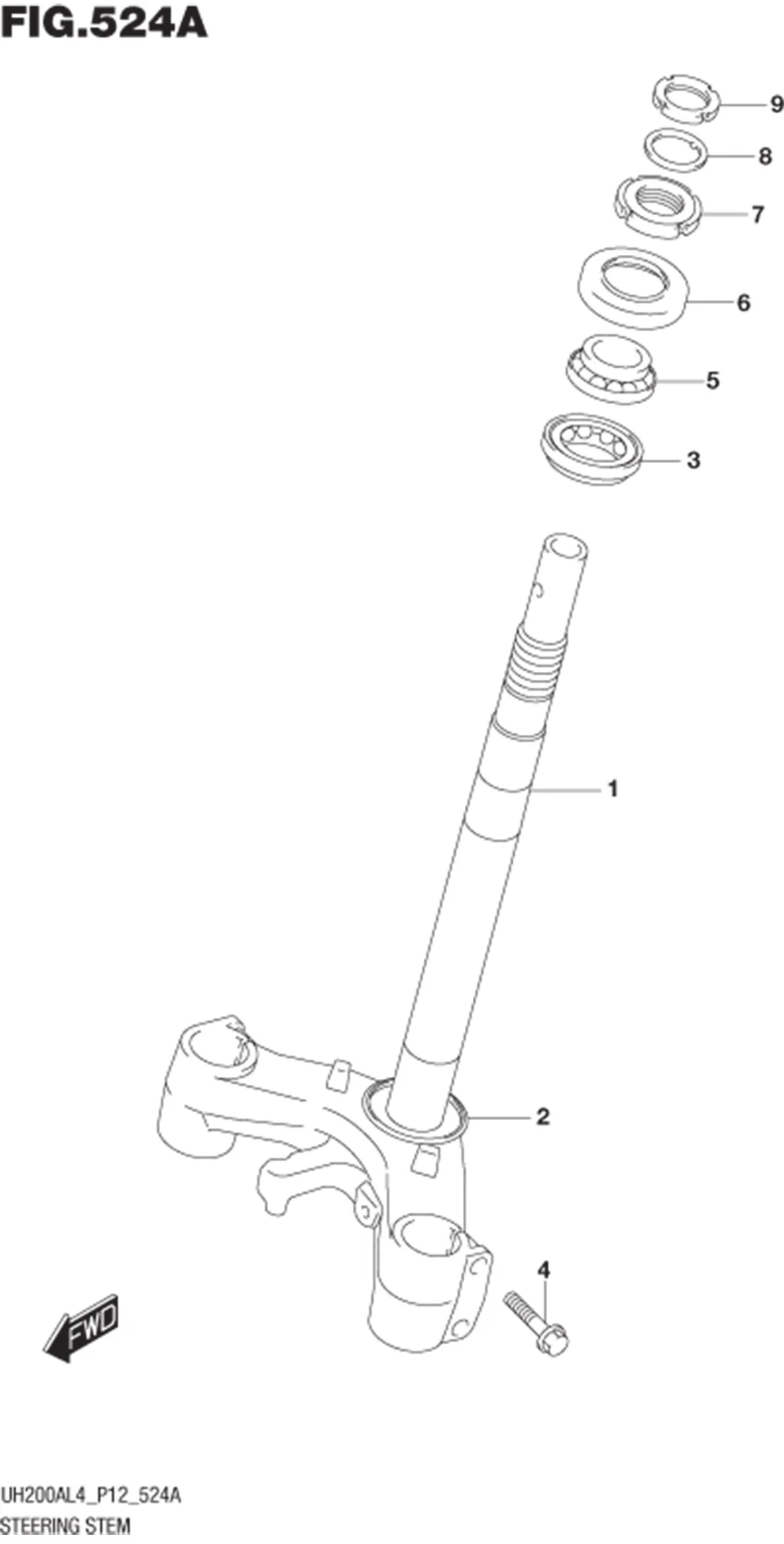

FIG.524A STEERING STEM

FIG.524A STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1 51410-12J20-000 STEM, STEERING 1 Rp9.933.000
2 51644-12C00-000 SEAL, LOWER 1 Rp51.000
3 09267-30010-000 BEARING (30X55X17) 1 Rp313.500
4 51328-03H00-000 BOLT 4 Rp75.500
5 09267-25009-000 BEARING (25X47X15) 1 Rp281.000
6 51643-40503-000
SUB: 51643-40502-000		 SEAL, DUST 1 Rp79.000
7 51631-28000-000 NUT, STEM 1 Rp27.000
8 09166-26001-000 WASHER 1 Rp10.500
9 51632-02400-000 NUT, STEM LOCK 1 Rp121.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
