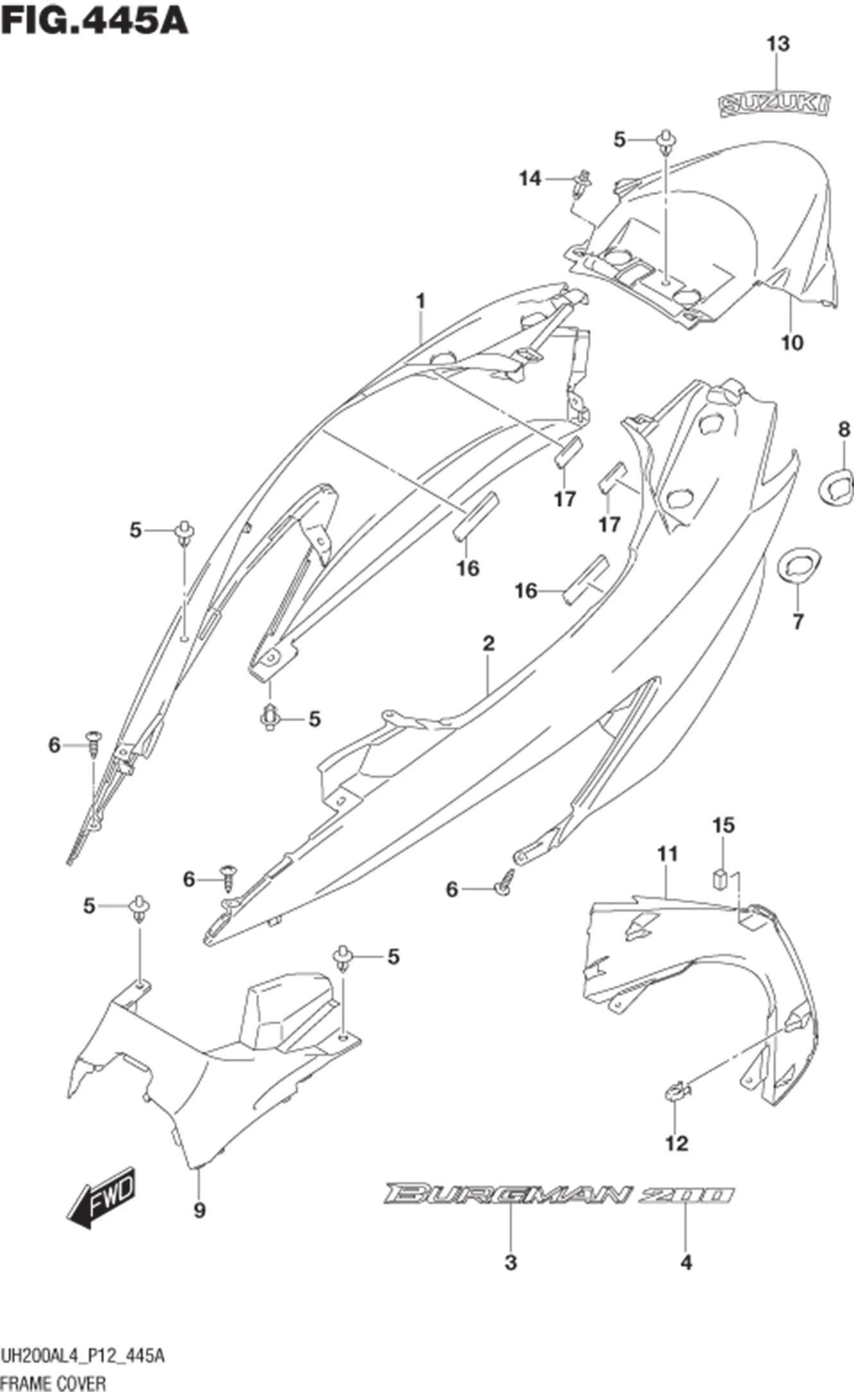

FIG.445A FRAME COVER

FIG.445A FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-12JA2-YKV
SUB: 47111-12JA0-YKV		 COVER, FRAME RH (BLACK) 1 Rp598.000
1-3 47111-12JA2-YUH
SUB: 47111-12JA0-YUH		 COVER, FRAME RH (WHITE) 1 Rp605.500
1-1 47111-12JA1-W6V
SUB: 47111-12JA0-W6V		 COVER, FRAME RH (SILVER) 1 Rp609.500
2-1 47211-12JA1-W6V
SUB: 47211-12JA0-W6V		 COVER, FRAME LH (SILVER) 1 Rp609.500
2-2 47211-12JA2-YKV
SUB: 47211-12JA0-YKV		 COVER, FRAME LH (BLACK) 1 Rp598.000
2-3 47211-12JA2-YUH
SUB: 47211-12JA0-YUH		 COVER, FRAME LH (WHITE) 1 Rp605.500
3 68131-12JA1-000
SUB: 68131-12JA0-000		 EMBLEM FRAME COVER 2 Rp236.000
4-1 68131-03H30-ALY EMBLEM "200" (GRAY/SILVER) 2 Rp4.500 FOR W6V
4-2 68131-03H30-AHW EMBLEM "200" (GRAY/BLACK) 2 Rp4.500 FOR YKV
4-3 68131-03H30-ALZ EMBLEM "200" (GRAY/WHITE) 2 Rp4.500 FOR YUH
5 09409-08308-5ES CLIP (BLACK) 8 Rp15.000
6 03541-0516A-000 SCREW 3 Rp3.500
7 47161-12JA0-000 CUSHION, FRAME COVER FRONT 2 Rp9.500
8 47162-12JA0-000 CUSHION, FRAME COVER REAR 2 Rp9.500
9 47351-12JA0-291 COVER, FRONT (BLACK) 1 Rp175.500
10-1 47311-12JA0-W6V COVER, CENTER (SILVER) 1 Rp265.500
10-2 47311-12JA0-YKV COVER, CENTER (BLACK) 1 Rp264.500
10-3 47311-12JA0-YUH COVER, CENTER (WHITE) 1 Rp270.000
11-1 47411-12JA0-W6V COVER, REAR LOWER (SILVER) 1 Rp227.000
11-2 47411-12JA0-YKV COVER, REAR LOWER (BLACK) 1 Rp228.500
11-3 47411-12JA0-YUH COVER, REAR LOWER (WHITE) 1 Rp238.500
12 09409-08326-000 CLIP 2 Rp8.000
13-1 68131-03HB0-ALY EMBLEM "SUZUKI" (GRAY/SILVER) 1 Rp6.500 FOR W6V
13-2 68131-03HB0-AHW EMBLEM "SUZUKI" (GRAY/BLACK) 1 Rp6.500 FOR YKV
13-3 68131-03HB0-ALZ EMBLEM "SUZUKI" (GRAY/WHITE) 1 Rp6.500 FOR YUH
14 09409-06329-000 CLIP 2 Rp7.000
15 92152-12JA0-000 CUSHION, FR BOX NO.4 2 Rp4.500
16 47163-12JA0-000 CUSHION, FRAME COVER UPPER NO.1 2 Rp7.500
17 47164-12JA0-000 CUSHION, FRAME COVER UPPER NO.2 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
