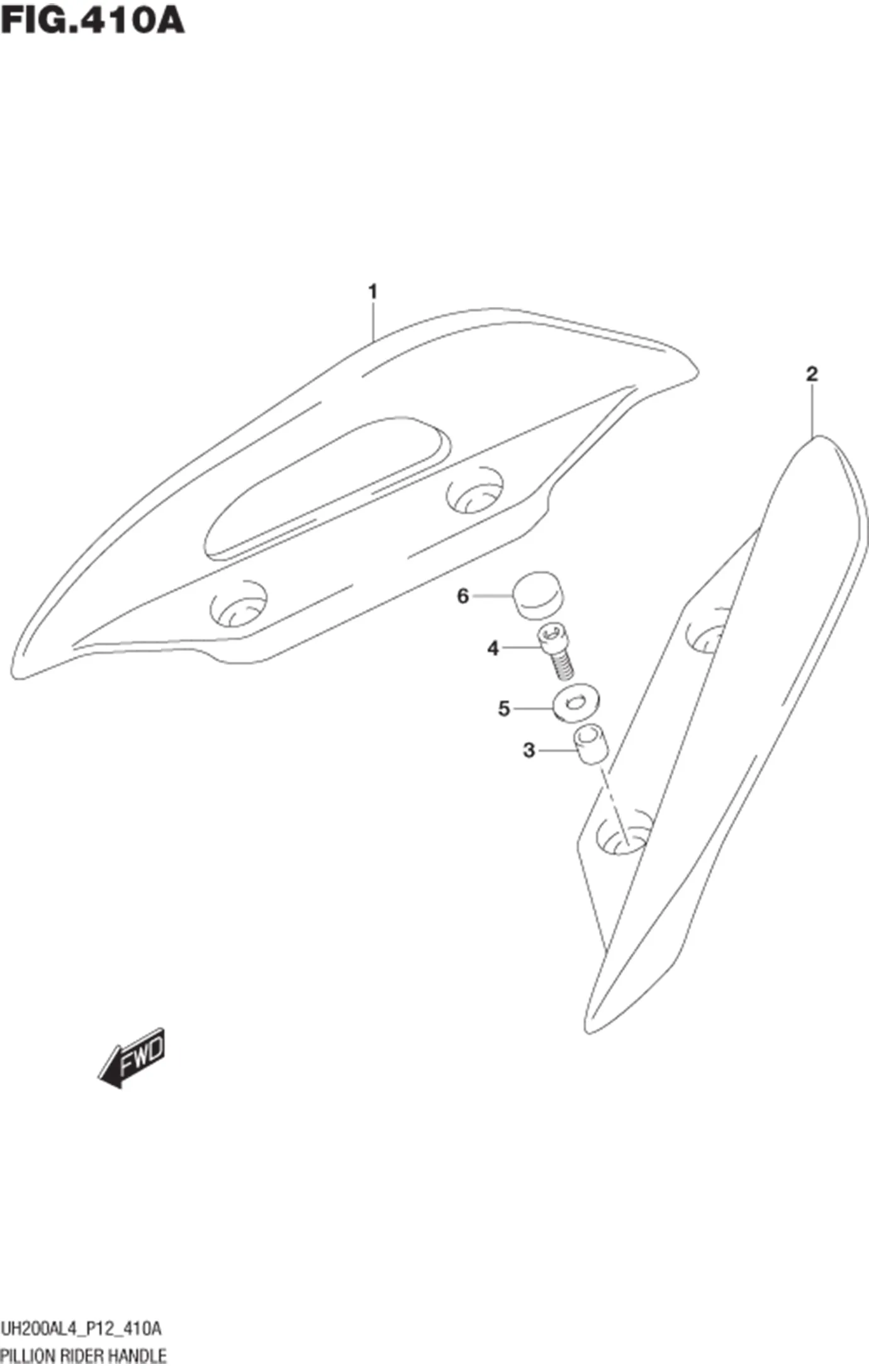

FIG.410A PILLION RIDER HANDLE

FIG.410A PILLION RIDER HANDLE
No No. Part Description Qty Price Per Pcs Remarks
1-1 46211-03H10-W6V HANDLE, PILLION RIDER RH (SILVER) 1 Rp524.500 FOR W6V
1-2 46211-03H10-PGZ HANDLE, PILLION RIDER RH (GRAY) 1 Rp524.500 FOR YKV
1-3 46211-03H11-YUH
SUB: 46211-03H10-YUH		 HANDLE, PILLION RIDER RH (WHITE) 1 Rp529.500 FOR YUH
2-1 46221-03H10-W6V HANDLE, PILLION RIDER LH (SILVER) 1 Rp524.500 FOR W6V
2-2 46221-03H10-PGZ HANDLE, PILLION RIDER LH (GRAY) 1 Rp524.500 FOR YKV
2-3 46221-03H11-YUH
SUB: 46221-03H10-YUH		 HANDLE, PILLION RIDER LH (WHITE) 1 Rp529.500 FOR YUH
3 46212-03H00-000 SPACER, PILLION RIDER HANDLE 4 Rp7.500
4 07130-0825A-000 BOLT 4 Rp4.000
5 DISCONTINUE
SUB: 09160-08127-000		 WASHER (8.5X22X2) 4 -
6 46271-14G00-000 CAP 4 Rp40.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
