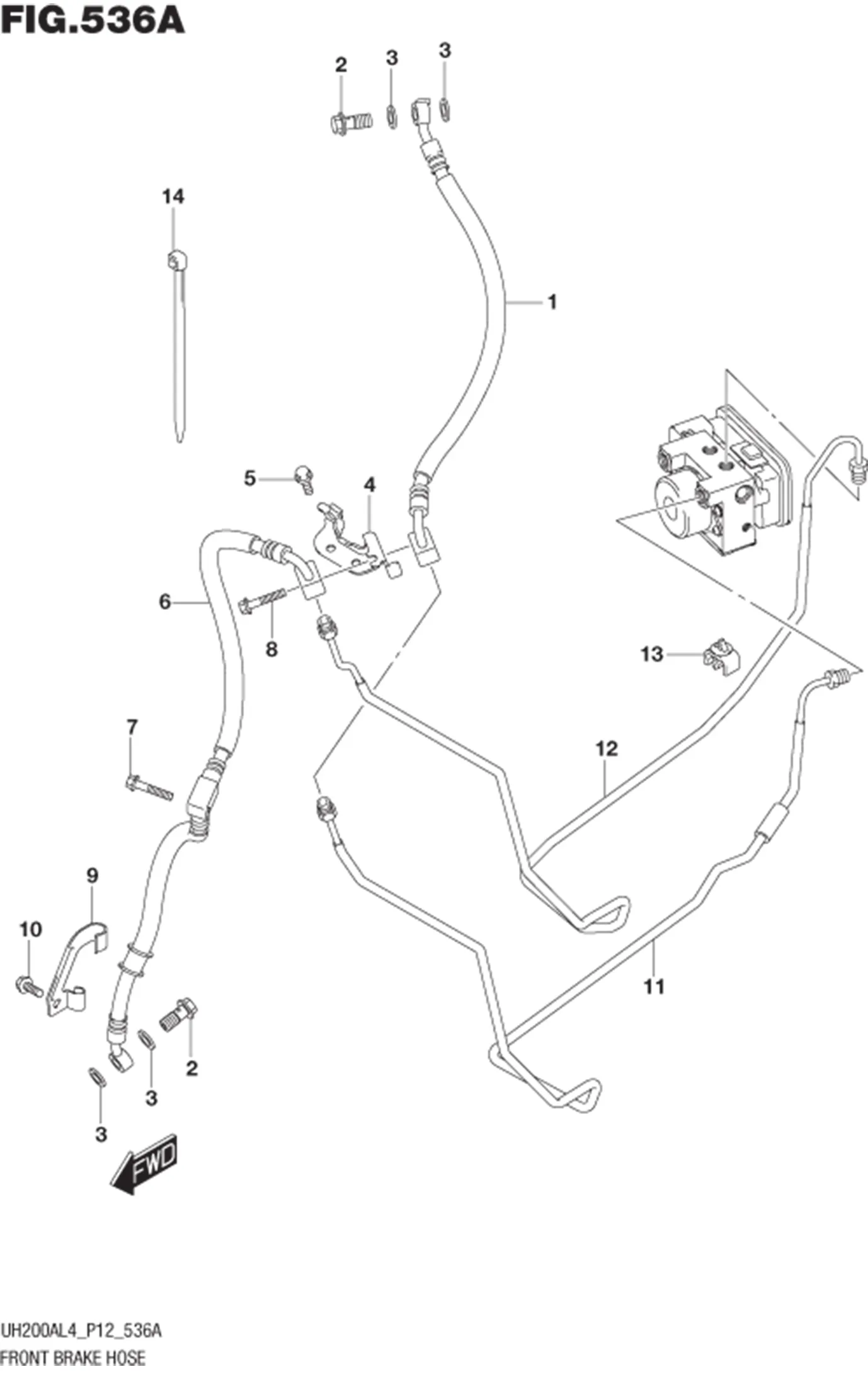

FIG.536A FRONT BRAKE HOSE

FIG.536A FRONT BRAKE HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 59240-12J00-000 HOSE, FRONT BRAKE NO.1 1 Rp239.000
2 09360-10062-000 UNION 2 Rp13.000
3 09168-10033-000 WASHER (10.2X15X1.4) 4 Rp8.500
4 59270-12J00-000 CLAMP, FR BRAKE HOSE 1 Rp55.000
5 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
6 59440-12J00-000 HOSE, FRONT BRAKE NO.2 1 Rp389.000
7 01547-0625A-000 BOLT 1 Rp6.500
8 01547-0630A-000 BOLT 1 Rp6.500
9 59245-12J00-000 CLAMP, FR BRAKE HOSE 1 Rp37.500
10 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
11 59250-12J00-000 PIPE, FR BRAKE NO.1 1 Rp166.000
12 59260-12J00-000 PIPE, FR BRAKE NO.2 1 Rp148.000
13 09403-07334-000 CLAMP 2 Rp16.500
14 09407-14407-000 CLAMP 1 Rp18.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
