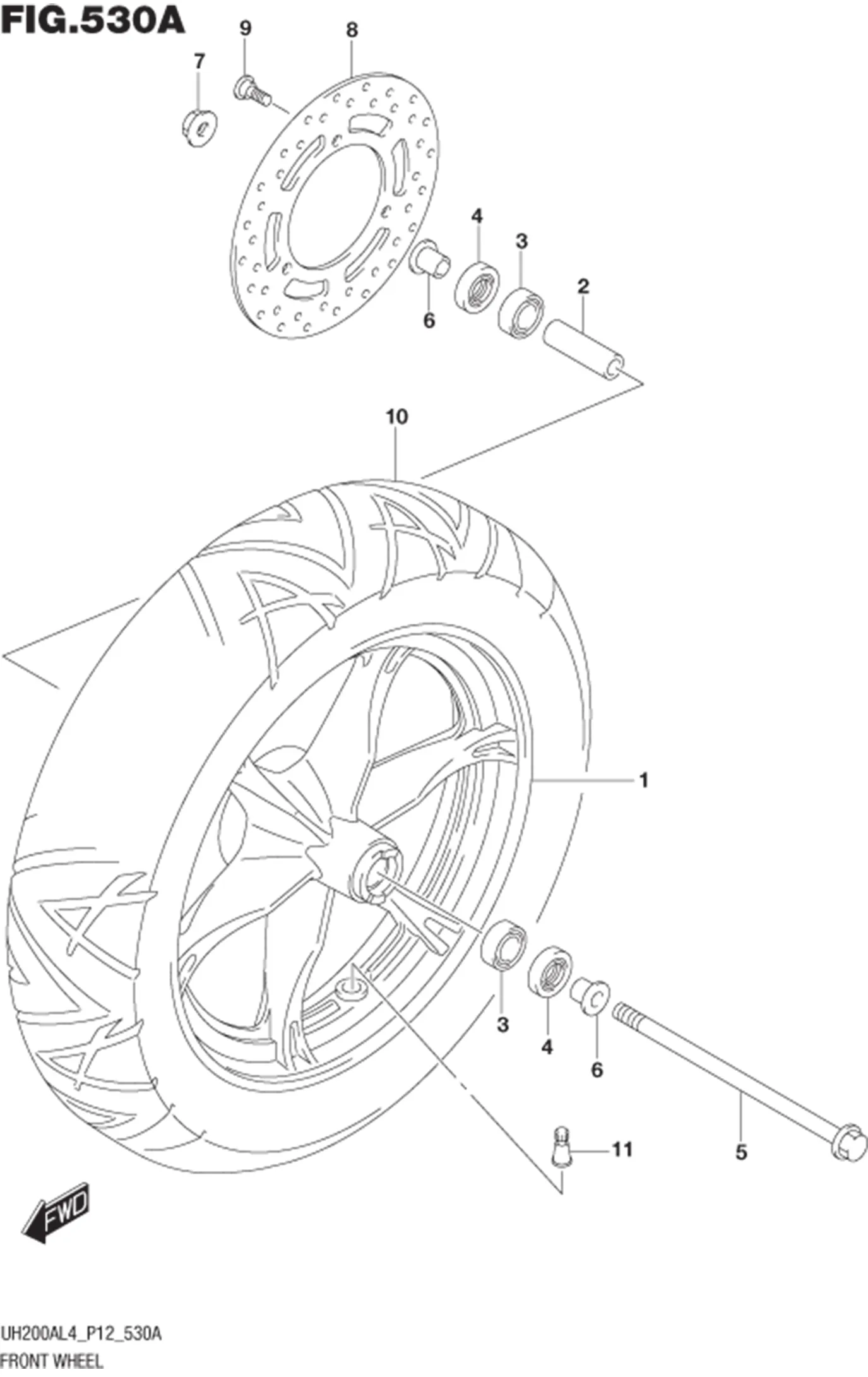

FIG.530A FRONT WHEEL

FIG.530A FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-12J10-YD8 WHEEL, FRONT (13M/CXMT2.50) (SILVER) 1 -
2 54731-03H00-000 SPACER, HUB BEARING 1 Rp42.000
3 08123-62017-000
SUB: 08133-62017-000		 BEARING 2 Rp29.000
4 09285-18002-000 OIL SEAL (18X32X7) 2 Rp40.500
5 54711-21F00-000 AXLE, FRONT 1 Rp125.000
6 54741-03H00-000 SPACER, AXLE 2 Rp39.000
7 08319-3112A-000 NUT 1 Rp7.000
8 59211-12J00-000 DISC, FRONT BRAKE 1 Rp599.000
9 09106-08160-000 BOLT (8X21) 3 Rp26.500
10 55110-03H21-000
SUB: 55110-03H20-000		 TIRE, FRONT (110/90-13M/C 56P) 1 Rp3.808.000
11 43130-24A60-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp25.000
12 54162-44H00-000 RING, SPEED SENSOR 1 Rp205.500
13 07130-0512A-000 BOLT 3 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
