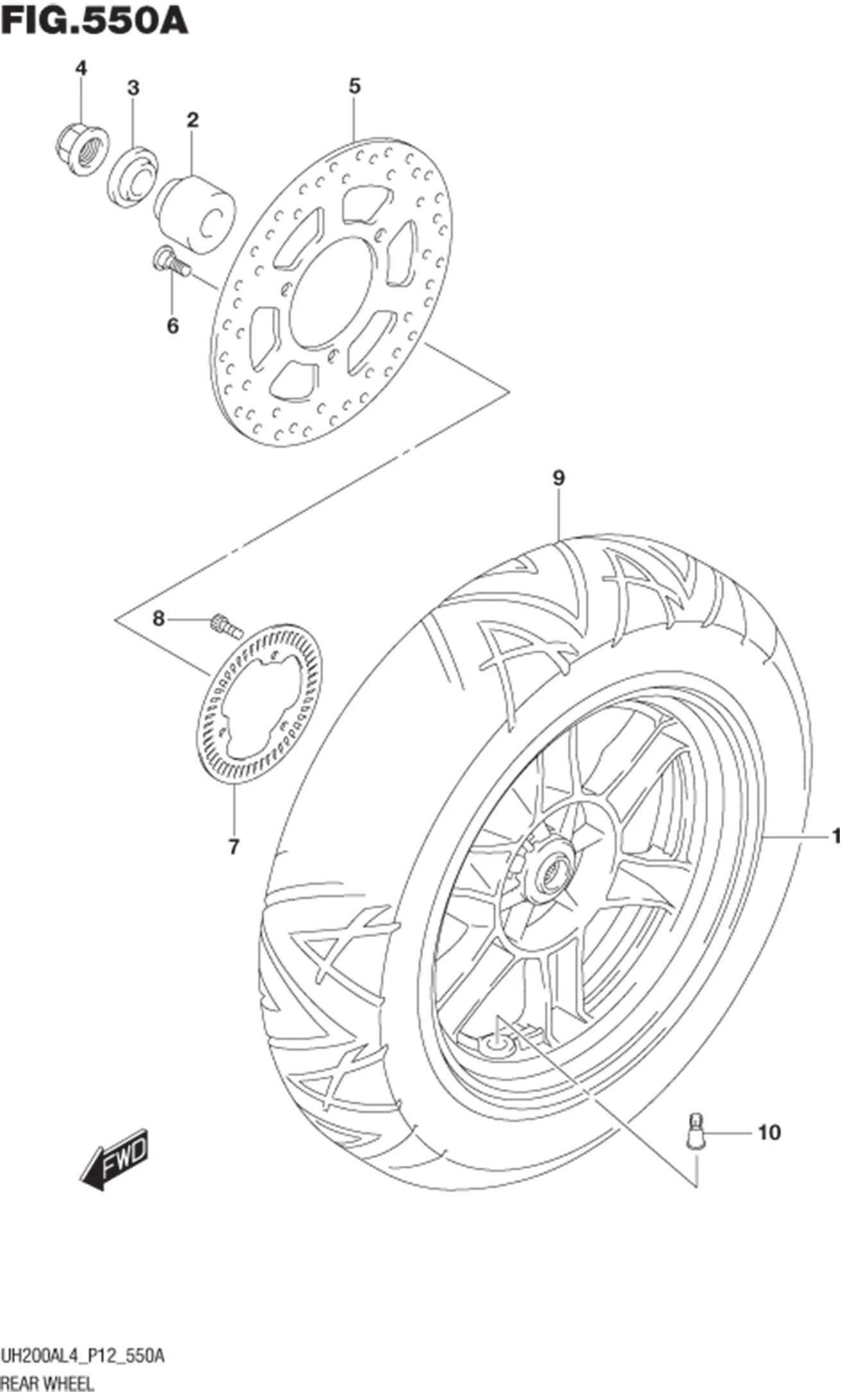

FIG.550A REAR WHEEL

FIG.550A REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64150-12J10-YD8 WHEEL, REAR (12XMT3.00) (SILVER) 1 -
2 64741-03H01-000 SPACER, REAR AXLE INNER 1 Rp61.000
3 64751-03H00-000 SPACER, REAR AXLE OUTER 1 Rp22.000
4 08319-3116A-000 NUT 1 Rp260.000
5 59211-12J00-000 DISC, REAR BRAKE 1 Rp599.000
6 09106-08160-000 BOLT (8X21) 3 Rp26.500
7 54162-44H00-000 RING, SPEED SENSOR 1 Rp205.500
8 07130-0512A-000 BOLT 1 Rp4.000
9 65110-03H21-000
SUB: 65110-03H20-000		 TIRE, REAR (130/70-12 62P) 1 Rp3.571.000
10 43130-24A60-000 VALVE ASSY, WHEEL RIM (TR412) 1 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
