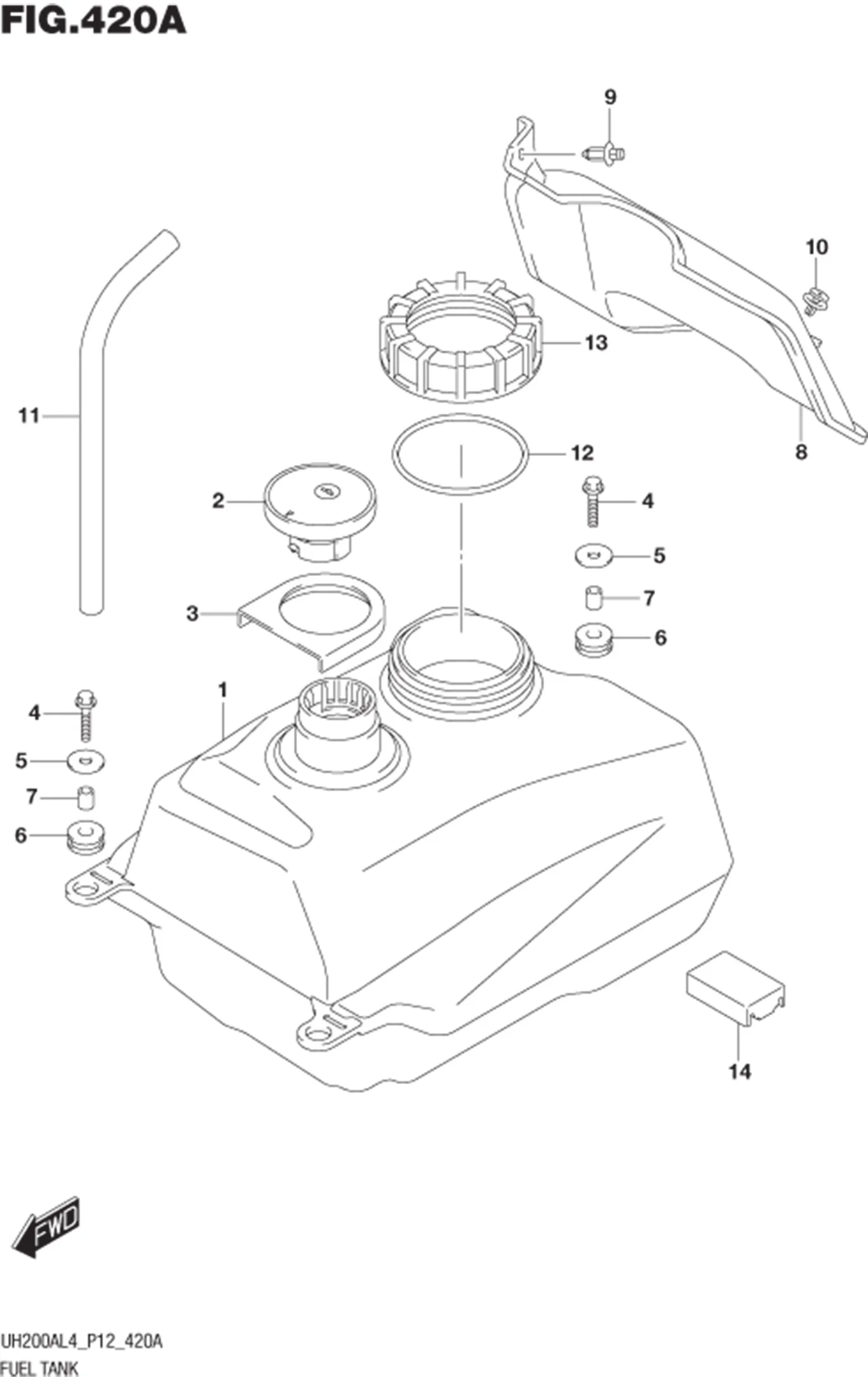

FIG.420A FUEL TANK

FIG.420A FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-12JA0-000 TANK, FUEL 1 Rp1.487.500
2 44200-12880-000 CAP ASSY, FUEL TANK 1 Rp370.500
3 44261-12J00-000 RUBBER, INLET 1 Rp48.000
4 01550-0625B-000 BOLT 3 Rp15.000
5 09160-06501-000 WASHER (6.5X24X1.6) 3 Rp21.000
6 09320-10029-000 CUSHION 3 Rp19.000
7 DISCONTINUE
SUB: 09180-06288-000		 SPACER (6.5X10X11) 3 -
8 44191-12J00-000 SHIELD, HEAT 1 Rp701.000
9 09409-06314-5PK CLIP (BLACK) 1 Rp3.500
10 17795-65D00-000 CLIP, LOWER 1 Rp20.500
11 09352-70119-600
SUB: 09352-70113-600		 HOSE (7X11X600) 1 Rp86.500 600->350
12 44596-03H00-000 PACKING, FUEL PUMP 1 Rp334.000
13 44597-03H00-000 RETAINER, FUEL PUMP 1 Rp192.500
14 44541-03H00-000 CUSHION, LOWER 1 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
