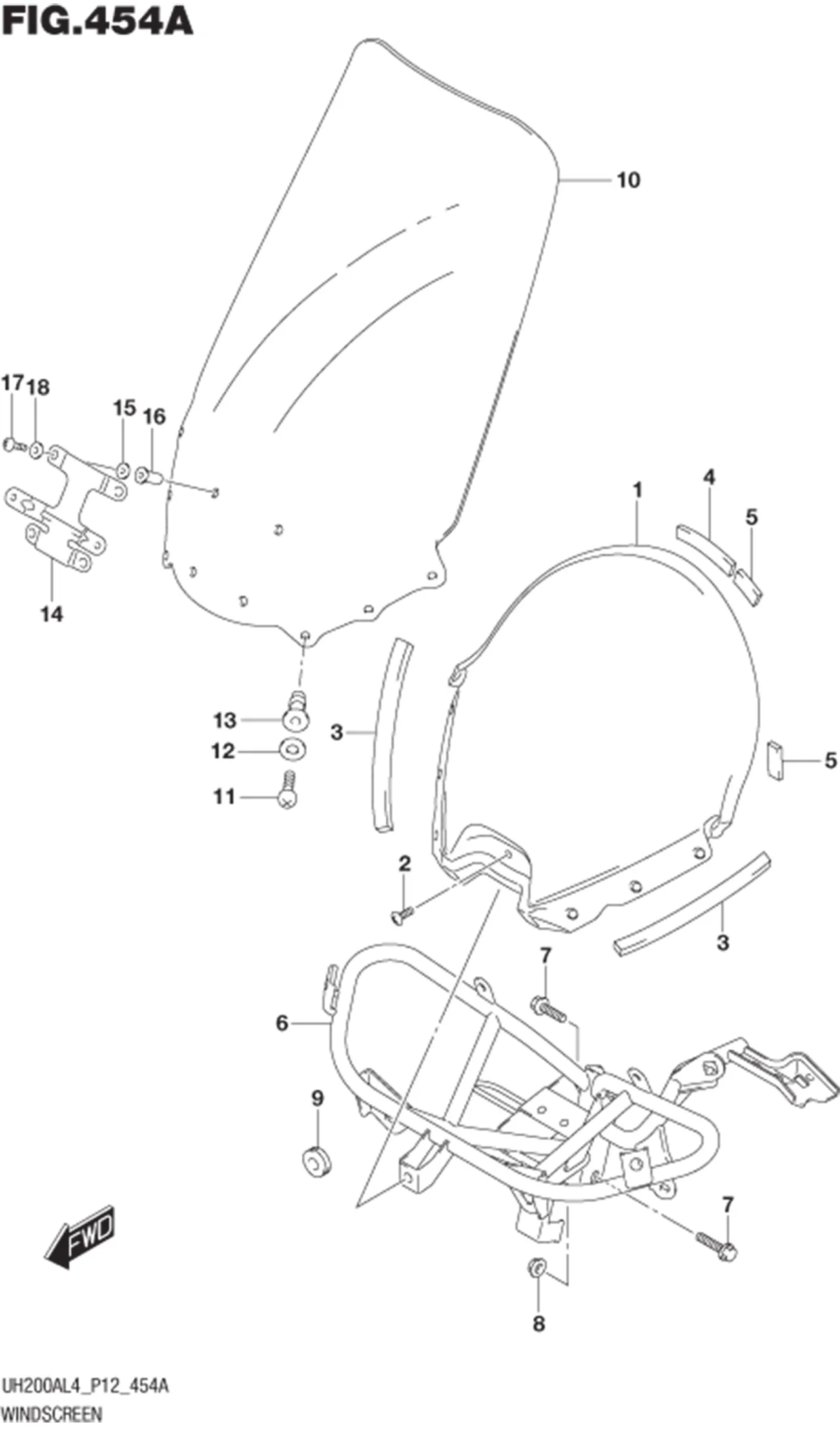

FIG.454A WINDSCREEN

FIG.454A WINDSCREEN
No No. Part Description Qty Price Per Pcs Remarks
1 94421-12JA0-291 PANEL, METER LOWER (BLACK) 1 Rp344.000
2 09139-06168-000 SCREW (6X16) 1 Rp20.000
3 94422-12JA0-000 CUSHION 2 Rp5.500
4 94423-12JA0-000 CUSHION 2 Rp4.500
5 94424-12JA0-000 CUSHION 4 Rp4.500
6 48150-12JB0-000 BRACE, LEG SHIELD 1 Rp692.000
7 07120-0835A-000 BOLT 2 Rp66.000
8 08316-1008A-000 NUT 1 Rp3.500
9 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 2 Rp15.000
10 94611-12JA0-NCI
SUB: 94611-12JA0-000		 WINDSCREEN 1 Rp1.765.000
11 02142-0520A-000 SCREW 6 Rp5.500
12 08322-0105A-000 WASHER 6 Rp3.000
13 09159-05045-000 NUT 6 Rp46.000
14 48191-12JA0-000 BRACKET, FRONT LICENSE 1 Rp245.500
15 48192-12JA0-000 CUSHION, BRKT FRONT LICENSE 4 Rp152.500
16 09159-05045-000 NUT 4 Rp46.000
17 02142-0520A-000 SCREW 4 Rp5.500
18 08322-0105A-000 WASHER 4 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
