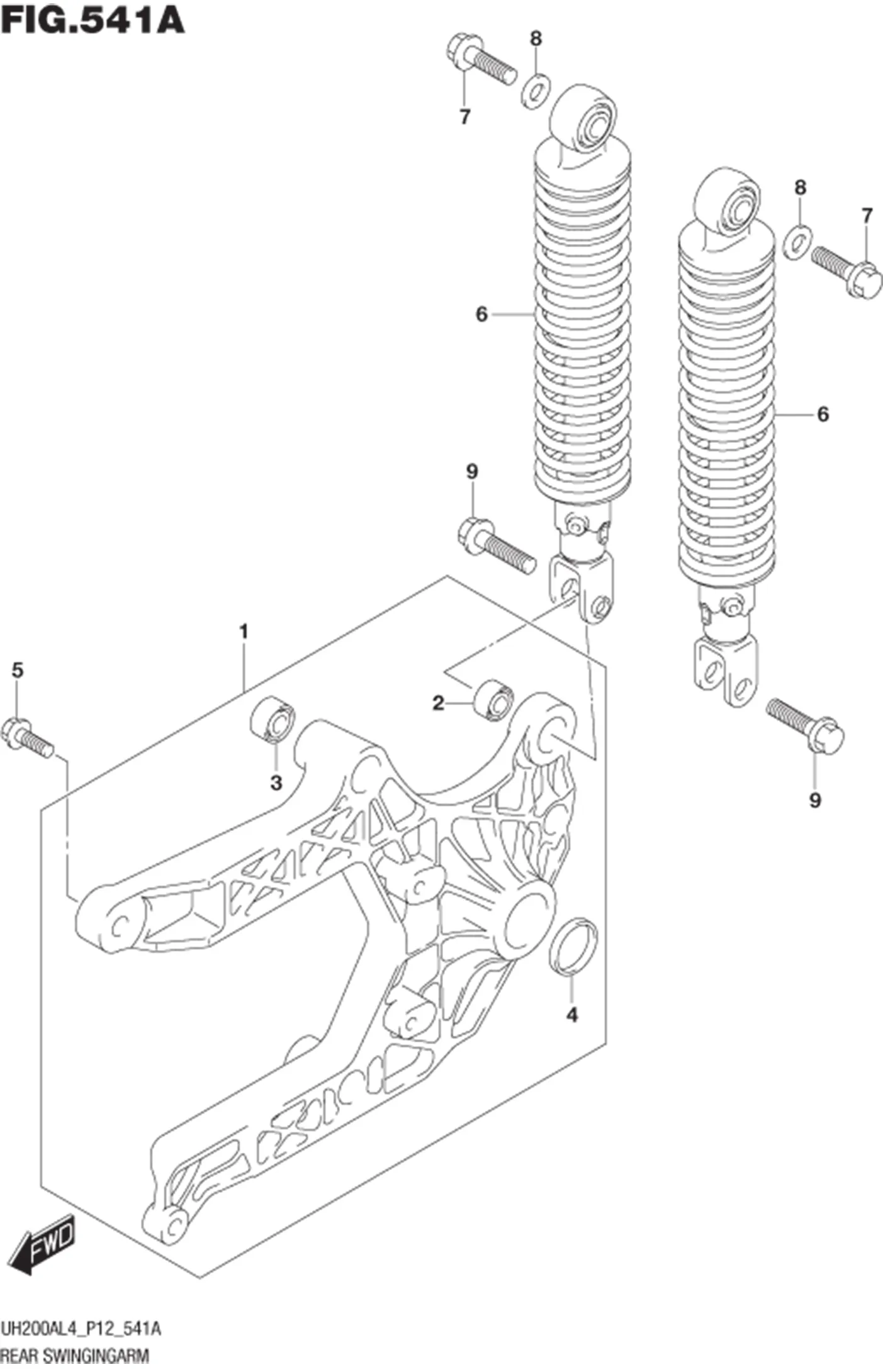

FIG.541A REAR SWINGINGARM

FIG.541A REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61000-12J20-019 SWINGINGARM ASSY, REAR 1 Rp902.500
2 09319-10032-000 ?BUSH (10.2X22.3X20) 1 Rp24.500
3 08133-62037-000 ?BEARING 1 Rp41.500
4 09285-28L01-000 ?OIL SEAL (28X35X5) 1 Rp36.500
5 01550-1030B-000 BOLT 2 Rp25.500
6 62100-03H01-000 ABSORBER ASSY, REAR SHOCK 2 Rp9.111.500
7 09103-10055-000 BOLT (10X40) 2 Rp12.500 UPPER
8 09160-10093-000 WASHER (10.5X24X2.3) 2 Rp12.500 UPPER
9 01550-1035B-000 BOLT 2 Rp5.000 LOWER

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
