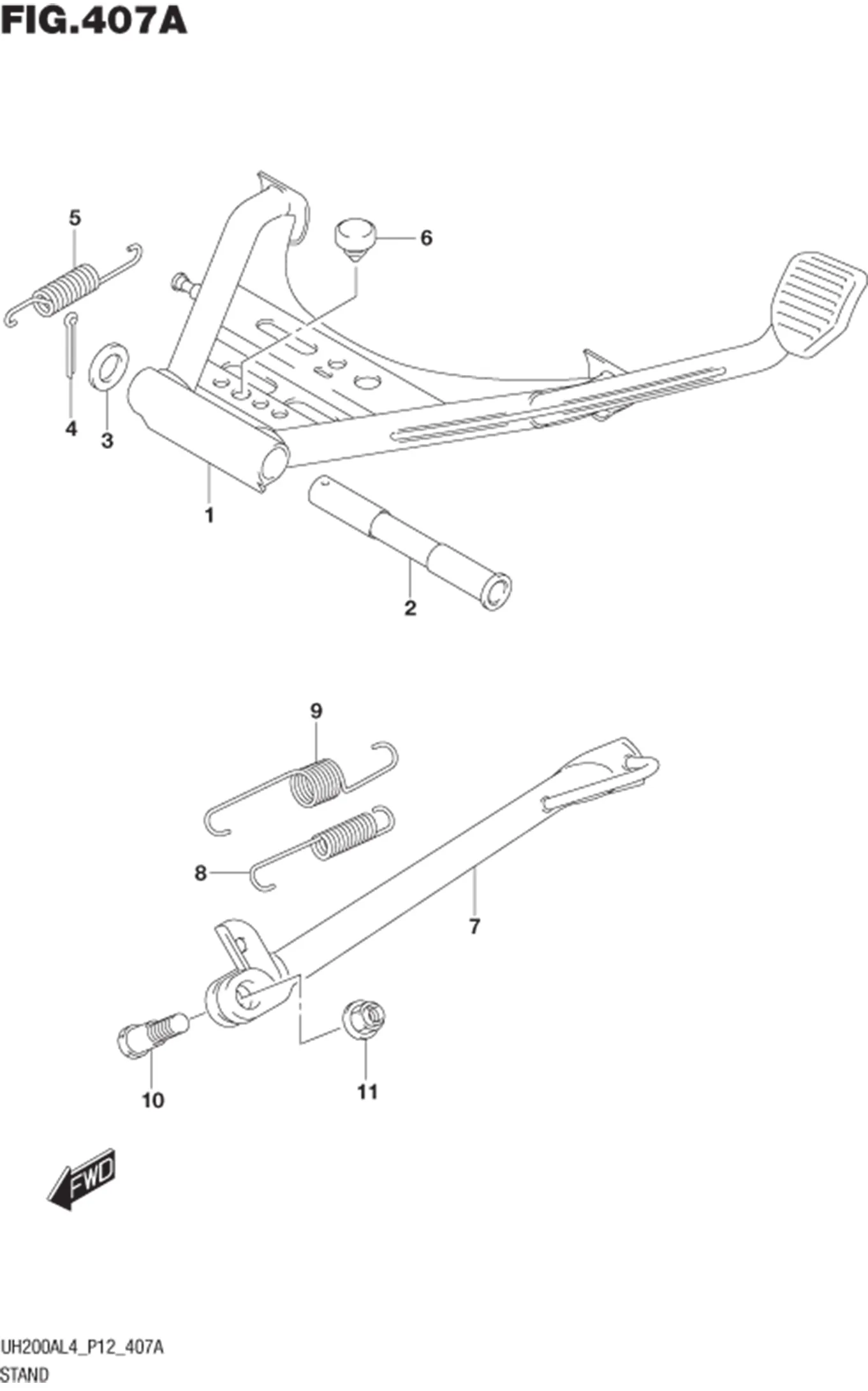

FIG.407A STAND

FIG.407A STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-12J02-000
SUB: 42100-12J00-000		 STAND, CENTER 1 Rp408.000
2 42211-12J00-000 SHAFT 1 Rp63.500
3 42213-12J00-000 WASHER 1 Rp11.000
4 04111-3025A-000 COTTER PIN 1 Rp3.500
5 09443-19022-000 SPRING 1 Rp31.500
6 09321-10001-000
SUB: 09321-10002-000		 CUSHION (11.5X22X20) 1 Rp6.500
7 42310-12J00-000 STAND, PROP 1 Rp177.500
8 42421-12J01-000 SPRING, PROP STAND 1 Rp14.000
9 42422-12J01-000 SPRING, PROP STAND OUTER 1 Rp15.500
10 42341-09G01-000 BOLT 1 Rp5.000
11 08319-3110A-000 NUT 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
