DF9.9 15 P01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER HEAD (MODEL:05%)FIG 3 CYLINDER BLOCK FIG 4 CYLINDER BLOCK (MODEL:05%)FIG 5 CRANKSHAFT FIG 6 TIMING BELT FIG 7 TIMING BELT (MODEL:05%)FIG 8 CAMSHAFT FIG 9 INLET MANIFOLD FIG 10 INLET MANIFOLD (MODEL:05%)FIG 11 CARBURETOR FIG 12 CARBURETOR (MODEL:05%)FIG 13 FUEL PUMP FIG 14 FUEL PUMP (MODEL:05%)FIG 15 WATER PUMP FIG 15A WATER PUMP (MODEL:07%)FIG 16 THERMOSTAT FIG 17 RECOIL STARTER FIG 18 THROTTLE CONTROL FIG 19 THROTTLE CONTROL (DF9.9,DF15 MODEL:05%)FIG 20 THROTTLE CONTROL (DF9.9R/15R MODEL:05%)FIG 21 OIL PUMP FIG 22 OIL PAN FIG 23 CLUTCH FIG 24 TRANSMISSION FIG 25 STARTING MOTOR FIG 26 STARTING MOTOR (MODEL:05%)FIG 27 MAGNETO FIG 28 MAGNETO (MODEL:05%)FIG 29 IGNITION COIL FIG 30 IGNITION COIL (MODEL:05%)FIG 31 RECTIFIER FIG 32 RECTIFIER (MODEL:05%)FIG 33 ELECTRICAL FIG 34 ELECTRICAL (MODEL:05%)FIG 35 CLAMP BRACKET FIG 36 CLAMP BRACKET (MODEL:05%)FIG 37 SWIVEL BRACKET FIG 38 SWIVEL BRACKET (MODEL:05%)FIG 39 DRIVE SHAFT HOUSING FIG 40 GEAR CASE FIG 41 SIDE COVER FIG 42 ENGINE COVER (MODEL:04%09)FIG 42A ENGINE COVER (MODEL:10%)FIG 43 FUEL TANK (RESIN)FIG 44 TILLER HANDLE FIG 45 TILLER HANDLE (MODEL:05%)FIG 46 REMOTE CONTROL (TYPE:R)FIG 47 REMOTE CONTROL (TYPE:R)(MODEL:05%)FIG 48 REMOCON CABLE HOLDER (TYPE:R)FIG 49 DRAG LINK (TYPE:R)FIG 50 OPT:METER (TYPE:R)FIG 51 OPT:ELECTRICAL FIG 52 OPT:ELECTRICAL (MODEL:05%)FIG 53 OPT:STARTING MOTOR FIG 54 OPT:STARTING MOTOR (MODEL:05%)FIG 55 OPT:RECEPTACLE SET (MODEL:04)FIG 56 OPT:TILLER HANDLE FIG 57 OPT:TILLER HANDLE (MODEL:05%)FIG 58 OPT:FUEL TANK (RESIN 25L)FIG 59 OPT:REMOTE CONTROL PARTS FIG 60 OPT:REMOTE CONTROL PARTS (MODEL:05%)FIG 61 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 62 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 63 OPT:DRAG LINK

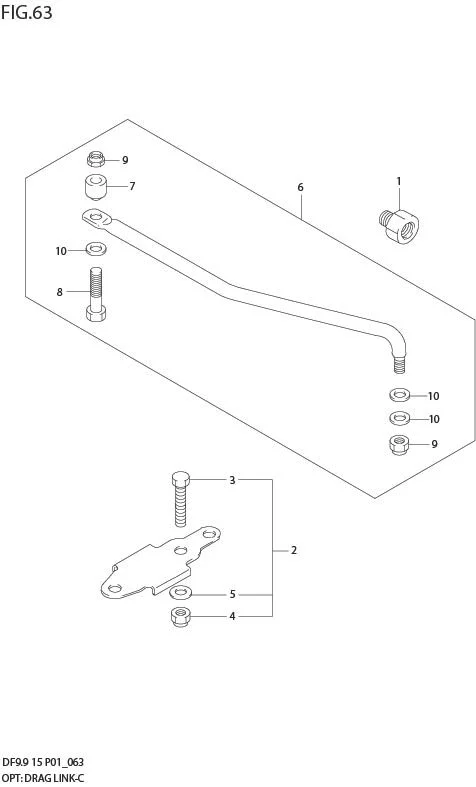

FIG 63 OPT:DRAG LINK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	41141-89E00-000	ATTACHMENT, STEERING CABLE	1	Rp983.500
2	67720-93E00-000	ATTACHMENT, STEERING BRKT SUB	1	Rp242.500
3	67725-93E00-000	?BOLT, STRG BRKT SUB ATCH	2	Rp62.500
4	67726-99E00-000	?NUT	2	Rp74.000
5	DISCONTINUE SUB: 67728-99E00-000	?WASHER	4	-
6-1	67701-93E12-000 SUB: 67701-93E11-000	LINK ASSY, DRAG	1	Rp858.000
6-2	67701-93E12-000	LINK ASSY, DRAG	1	Rp858.000	MODEL:05%
7-1	67721-93E00-000	?SPACER	1	Rp86.000
7-2	67721-93E10-000	?SPACER	1	Rp86.000	FOR 67701-93E12
8	DISCONTINUE SUB: 67725-99E10-000	?BOLT	1	-
9	67726-99E00-000	?NUT	2	Rp74.000
10	DISCONTINUE SUB: 67728-99E00-000	?WASHER	3	-
11-1	99011-94J00-052	MANUAL, OWNER'S	1	Rp150.500	DRAWING NOT SHOWN
11-2	99011-94J01-052	MANUAL, OWNER'S	1	Rp150.500	MODEL:05
11-3	99011-94J02-053	MANUAL, OWNER'S	1	Rp150.500	MODEL:06
11-4	99011-94J03-053	MANUAL, OWNER'S	1	Rp150.500	MODEL:07
11-5	99011-94J04-055	MANUAL, OWNER'S	1	Rp150.500	MODEL:08
11-6	99011-94J05-055	MANUAL, OWNER'S	1	Rp150.500	MODEL:09
11-7	99011-94J08-055	MANUAL, OWNER'S	1	Rp150.500	MODEL:10
11-8	99011-94J07-055	MANUAL, OWNER'S	1	Rp150.500	DF15:110001%
11-8	99011-94J07-055	MANUAL, OWNER'S	1	Rp150.500	DF15:110001%
