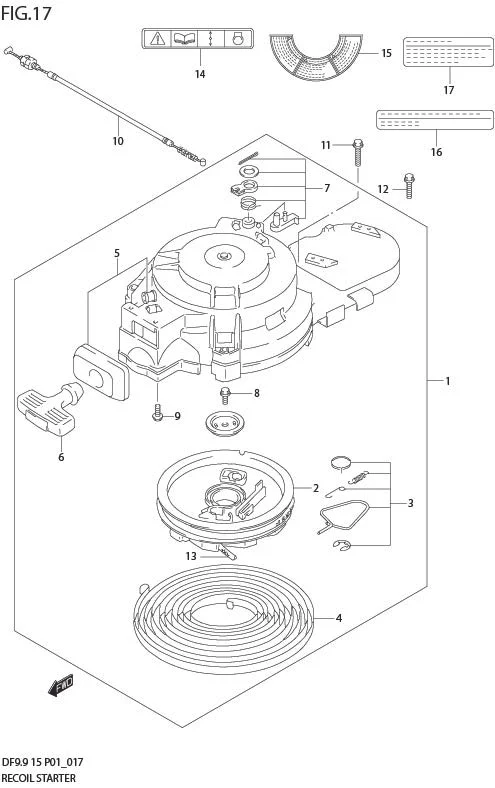

FIG 17 RECOIL STARTER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	18100-94J01-000	STARTER ASSY, RECOIL	1	-	DF9.9:421633%
1-3	18100-94J02-000	STARTER ASSY, RECOIL	1	-	MODEL:05,06
1-4	18100-94JL0-000 SUB: 18100-94J03-000	STARTER ASSY, RECOIL	1	Rp1.347.500	MODEL:07%09
1-5	18100-94J10-000	STARTER ASSY, RECOIL	1	-	MODEL:10
1-6	18100-94JL0-000	STARTER ASSY, RECOIL	1	Rp1.347.500	DF15:110001%
1-1	18100-94J00-000	STARTER ASSY, RECOIL	1	-
2-1	DISCONTINUE SUB: 18121-93E01-000	?REEL	1	-
2-2	18121-94JL0-000	?REEL	1	Rp285.500	DF15:110001%
3	18130-93E01-000	?RATCHET SET	1	Rp157.500
4	18142-93E00-000	?SPRING, SPIRAL	1	Rp274.000
5	DISCONTINUE SUB: 18181-93900-000	?GUIDE, ROPE	1	-
6	18210-93002-000	?GRIP	1	Rp103.000
7	18280-93E00-000	?NSI SET	1	Rp90.000
8	DISCONTINUE SUB: 01570-06167-000	?BOLT	1	-
9	DISCONTINUE SUB: 01570-06167-000	?SCREW	2	-
10	18290-94J01-000 SUB: 18290-94J00-000	CABLE ASSY, NSI	1	Rp248.000
11	01550-06207-000 SUB: 01550B06207N000	BOLT	1	Rp3.000
12	01550-06307-000	BOLT	3	Rp18.000
13	99000-81158-50M	ROPE	1	Rp2.485.000	OPT,L:50000!1500
14	69711-93E11-000 SUB: 69711-93E10-000	LABEL, CAUTION	1	Rp39.000	?69711-91J00
15-1	61472-94J00-000	LABEL, RECOIL STARTER	1	Rp12.000
15-2	61472-94J10-000	LABEL, RECOIL STARTER	1	Rp14.000	DF15:010665%
16	61493-94J00-000	LABEL, CLEARANCE	1	Rp3.000	MODEL:09%
17	61494-94J00-000	LABEL, OIL	1	Rp3.500	MODEL:09%
