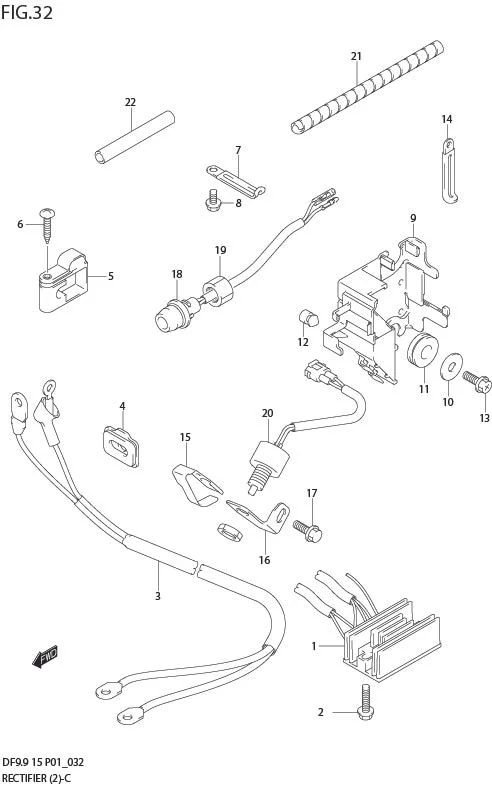

FIG 32 RECTIFIER (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	32800-94J01-000	RECTIFIER/REGULATOR ASSY	1	Rp2.231.000	DF9.9R/15R
1-1	32800-94J11-000	RECTIFIER/REGULATOR ASSY	1	Rp1.470.000	ELECTRIC STARTER
2	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
3	33810-94J00-000	CABLE, STARTER	1	Rp408.500	ELECTRIC STARTER
4	33811-94J10-000	GROMMET, STARTER CABLE	1	Rp17.000	ELECTRIC STARTER
5	33816-94J01-000	CLAMP, CABLE	1	Rp40.500	ELECTRIC STARTER
6	DISCONTINUE SUB: 03241-0625A-000	SCREW	1	-	ELECTRIC STARTER
7-1	DISCONTINUE SUB: 29404-93J10-000	CLAMP, RECTIFIER LEAD	1	-	?09404-06432
7-2	29404-93J21-000 SUB: 29404-93J20-000	CLAMP, RECTIFIER LEAD	1	Rp18.000	DF9.9R/15R
8	01550-06127-000	BOLT	1	Rp17.000
9	32890-94J00-000	HOLDER, ELECTRIC PARTS	1	Rp81.500
10	DISCONTINUE SUB: 09160-06054-000	WASHER	2	-
11	09320-12090-000 SUB: 09320-12011-000	CUSHION	2	Rp13.500
12	09321-06013-000	CUSHION	1	Rp8.000
13	02162-06167-000	SCREW	2	Rp7.500
14	36990-25G00-000 SUB: 09407-11401-000	CLAMP, SWITCH LEAD	1	Rp13.000	MANUAL STARTER
15	DISCONTINUE SUB: 37725-94302-000	ACTUATOR, NEUTRAL SW	1	-
16-1	37726-95D02-000	BRACKET, NEUTRAL SW	1	Rp36.500
16-2	37726-94J00-000	BRACKET, NEUTRAL SW	1	Rp18.500	DF9.9:681261%
17	01550-06167-000	BOLT	1	Rp16.500
18	37161-94J00-000	SWITCH, STARTING MOTOR	1	Rp401.000	ELECTRIC STARTER
19	DISCONTINUE SUB: 09159-14014-000	NUT	1	-	ELECTRIC STARTER
20	37721-94J01-000	SWITCH ASSY, NEUTRAL	1	Rp242.000
21	33833-91J00-000	TUBE, THROTTLE CABLE	1	Rp47.500	L:250!50
22	33833-94JL0-000	TUBE, SWITCH LEAD	1	Rp2.000	ELECTRIC STARTER
