DF9.9 15 P01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER HEAD (MODEL:05%)FIG 3 CYLINDER BLOCK FIG 4 CYLINDER BLOCK (MODEL:05%)FIG 5 CRANKSHAFT FIG 6 TIMING BELT FIG 7 TIMING BELT (MODEL:05%)FIG 8 CAMSHAFT FIG 9 INLET MANIFOLD FIG 10 INLET MANIFOLD (MODEL:05%)FIG 11 CARBURETOR FIG 12 CARBURETOR (MODEL:05%)FIG 13 FUEL PUMP FIG 14 FUEL PUMP (MODEL:05%)FIG 15 WATER PUMP FIG 15A WATER PUMP (MODEL:07%)FIG 16 THERMOSTAT FIG 17 RECOIL STARTER FIG 18 THROTTLE CONTROL FIG 19 THROTTLE CONTROL (DF9.9,DF15 MODEL:05%)FIG 20 THROTTLE CONTROL (DF9.9R/15R MODEL:05%)FIG 21 OIL PUMP FIG 22 OIL PAN FIG 23 CLUTCH FIG 24 TRANSMISSION FIG 25 STARTING MOTOR FIG 26 STARTING MOTOR (MODEL:05%)FIG 27 MAGNETO FIG 28 MAGNETO (MODEL:05%)FIG 29 IGNITION COIL FIG 30 IGNITION COIL (MODEL:05%)FIG 31 RECTIFIER FIG 32 RECTIFIER (MODEL:05%)FIG 33 ELECTRICAL FIG 34 ELECTRICAL (MODEL:05%)FIG 35 CLAMP BRACKET FIG 36 CLAMP BRACKET (MODEL:05%)FIG 37 SWIVEL BRACKET FIG 38 SWIVEL BRACKET (MODEL:05%)FIG 39 DRIVE SHAFT HOUSING FIG 40 GEAR CASE FIG 41 SIDE COVER FIG 42 ENGINE COVER (MODEL:04%09)FIG 42A ENGINE COVER (MODEL:10%)FIG 43 FUEL TANK (RESIN)FIG 44 TILLER HANDLE FIG 45 TILLER HANDLE (MODEL:05%)FIG 46 REMOTE CONTROL (TYPE:R)FIG 47 REMOTE CONTROL (TYPE:R)(MODEL:05%)FIG 48 REMOCON CABLE HOLDER (TYPE:R)FIG 49 DRAG LINK (TYPE:R)FIG 50 OPT:METER (TYPE:R)FIG 51 OPT:ELECTRICAL FIG 52 OPT:ELECTRICAL (MODEL:05%)FIG 53 OPT:STARTING MOTOR FIG 54 OPT:STARTING MOTOR (MODEL:05%)FIG 55 OPT:RECEPTACLE SET (MODEL:04)FIG 56 OPT:TILLER HANDLE FIG 57 OPT:TILLER HANDLE (MODEL:05%)FIG 58 OPT:FUEL TANK (RESIN 25L)FIG 59 OPT:REMOTE CONTROL PARTS FIG 60 OPT:REMOTE CONTROL PARTS (MODEL:05%)FIG 61 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 62 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 63 OPT:DRAG LINK

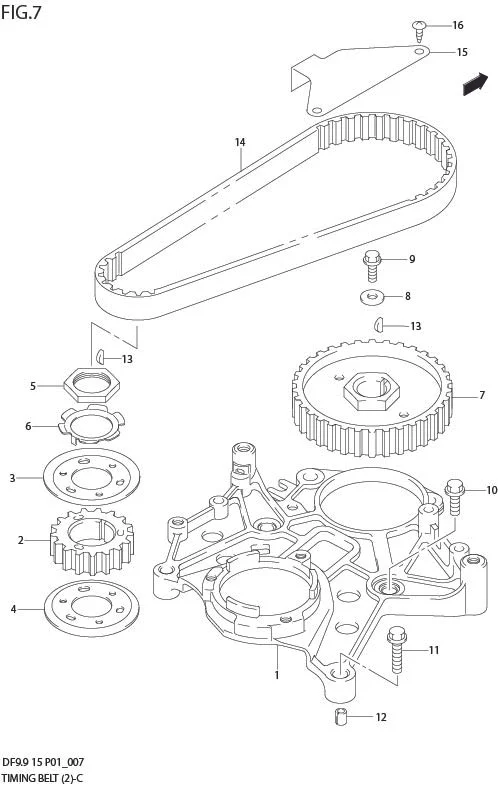

FIG 7 TIMING BELT (MODEL:05%)

FIG 7 TIMING BELT (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12625-94J01-000	BASE, STATOR	1	Rp200.500
2	12631-93E00-000	PULLEY, CRANKSHAFT	1	Rp287.500
3	12635-93E00-000	GUIDE, TIMING BELT (UPPER)	1	Rp58.500	?12635-94J00
4	12636-93E00-000	GUIDE, TIMING BELT (LOWER)	1	Rp48.500	?12636-94J00
5	12637-93E00-000	NUT, TIMING PULLEY	1	Rp96.500	?12637-94J00
6	12638-93E01-000	WASHER, PULLEY NUT LOCK	1	Rp43.500	?12638-94J00
7	12741-93E01-000	PULLEY, CAMSHAFT	1	Rp586.500
8	09160-06160-000	WASHER (6.5X24X4)	1	Rp42.500
9-2	01550-06167-000	BOLT (6X16)	1	Rp16.500	MODEL:06,07
9-3	09103-06267-000	BOLT (6X18)	1	Rp16.000	MODEL:08%
9-1	01550-0616C-000 SUB: 09103-06186-000	BOLT (6X16)	1	Rp3.500
10	01550-08307-000	BOLT	2	Rp24.000	FRONT
11	01550-06357-000	BOLT	2	Rp18.500	REAR
12	04211-09149-000 SUB: 04211B09149N000	DOWEL PIN	2	Rp3.000
13	08341-31039-000 SUB: 08341B31039N000	KEY	2	Rp9.500
14-1	12761-93EL0-000 SUB: 12761-93E00-000	BELT, TIMING	1	Rp352.000
14-2	12761-93EL0-000	BELT, TIMING	1	Rp352.000	DF15:110001%
15	12764-94J00-000	COVER, TIMING BELT	1	Rp29.000	MODEL:05,06
16	03542-05083-000	SCREW	2	Rp8.000	MODEL:05,06

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
