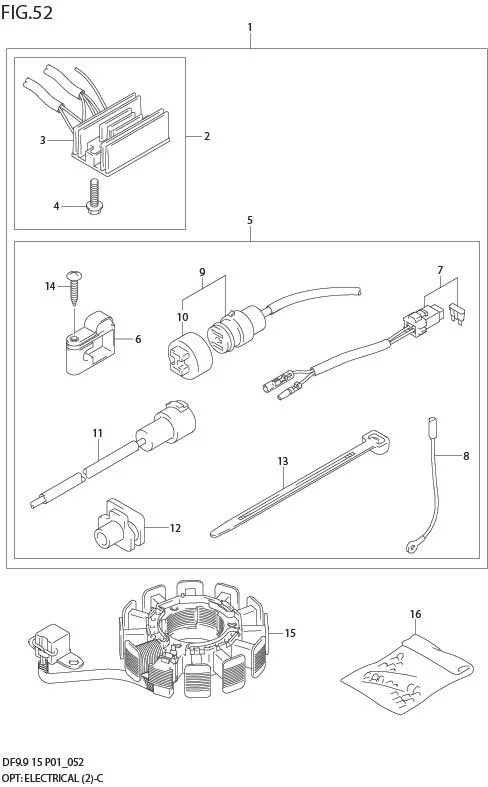

FIG 52 OPT:ELECTRICAL (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	32000-94J01-000	KIT, BATTERY CHARGING	1	Rp1.321.000	MODEL:10%
1-1	32000-94J01-000 SUB: 32000-94J00-000	KIT, BATTERY CHARGING	1	Rp1.321.000
2-1	32801-94J01-000 SUB: 32801-94J00-000	?RECTIFIER/REGULATOR SET	1	Rp1.450.000
2-2	32801-94J01-000	?RECTIFIER/REGULATOR SET	1	Rp1.450.000	MODEL:10%
3	32800-94J11-000	?RECTIFIER/REGULATOR ASSY	1	Rp1.470.000
4	01550-06257-000 SUB: 01550B06257N000	??BOLT	2	Rp3.500
5-1	39600-94J00-000	?RECEPTACLE SET	1	Rp474.000
5-2	39600-94J01-000	?RECEPTACLE SET	1	Rp685.500	MODEL:10%
6	33816-94J01-000	??CLAMP	1	Rp40.500
7	36740-94J00-000	??CASE ASSY, FUSE	1	Rp319.000
8	DISCONTINUE SUB: 37801-98300-000	??LEAD RECEPTACLE GROUND	1	-
9	39601-95D01-000 SUB: 39601-95D00-000	??RECEPTACLE ASSY, LIGHTING	1	Rp380.500
10	36634-93910-000	???CAP	1	Rp27.500
11	39602-93900-000	??PLUG, RECEPTACLE	1	Rp391.500
12	39603-94400-000	??GROMMET, RECEPTACLE	1	Rp54.500
13-1	09407-14407-000	??CLAMP, LEAD	1	Rp18.500
13-2	09407-19401-000 SUB: 09407-25402-000	??CLAMP, GROMMET	1	Rp31.500
14	DISCONTINUE SUB: 03241-0625A-000	??SCREW, CABLE CLAMP	1	-
15-1	32120-94J10-000	COIL, STATOR & PULSER	1	Rp2.177.000
15-2	32120-94J10-000	COIL, STATOR & PULSER	1	Rp2.177.000	MODEL:06%
16	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500
