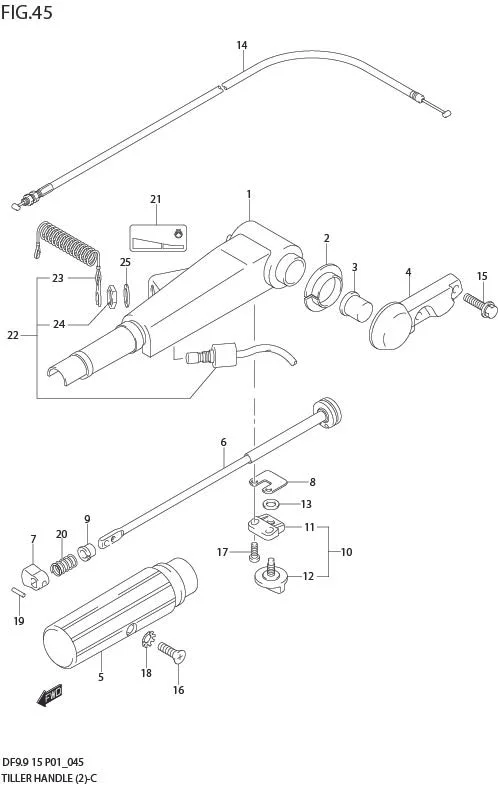

FIG 45 TILLER HANDLE (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	63111-94J20-0EP	HANDLE, TILLER	1	Rp460.000	MODEL:10%
1-1	63111-94J01-0EP	HANDLE, TILLER	1	Rp675.000
2	63115-94J00-000	BUSH, TILLER HANDLE	2	Rp13.000
3	63116-94J00-000	RUBBER, FRICTION	1	Rp9.000
4-1	63121-94J20-0EP SUB: 63121-94J00-0EP	COVER, TILLER HANDLE	1	Rp126.000
4-2	63121-94J20-0EP	COVER, TILLER HANDLE	1	Rp126.000	MODEL:10%
5	63210-93E30-000	GRIP, HANDLE	1	Rp293.000
6	63220-94J00-000	ROD, HANDLE	1	Rp240.000
7	63223-89J00-000	STOPPER, HANDLE ROD	1	Rp51.000
8	63225-94J00-000	PLATE, HANDLE ROD ADJUSTER	1	Rp5.500
9	63225-93200-000	BUSH, HANDLE ROD	1	Rp37.000
10	63240-94J20-000 SUB: 63240-94J00-000	ADJUSTER SET, HANDLE	1	Rp35.000
11	63241-986B0-000 SUB: 63241-98601-000	?SUPPORT, ROD	1	Rp25.500
12	63244-94J00-000	?KNOB, ADJUSTER	1	Rp81.000
13	09148-06008-000	NUT, ADJUSTER KNOB	1	Rp9.000
14	63610-94J00-000	CABLE ASSY, THROTTLE	2	Rp60.000
15	09116-08122-000	BOLT, HANDLE COVER	2	Rp29.000
16	09126-06015-000	SCREW, GRIP	1	Rp19.000
17	09136-05041-000	SCREW, ROD ADJUSTER	2	Rp12.500
18	09163-06001-000	WASHER, GRIP SCREW	1	Rp11.000
19	09205-03038-000	PIN, ROD	1	Rp10.500
20	09440-12027-000	SPRING, ROD	1	Rp13.000
21	69714-94J00-000	MARK, ENGINE START	1	Rp2.000
22	37830-94J03-000 SUB: 37830-94J02-000	SWITCH ASSY, EMERGENCY/STOP	1	Rp353.000
23	37823-92E02-000 SUB: 37823-92E01-000	?PLATE	1	Rp221.500
24	37826-92E00-000	?NUT	1	Rp65.500
25	09160-12067-000	WASHER, EMERGENCY SWITCH	1	Rp19.000
