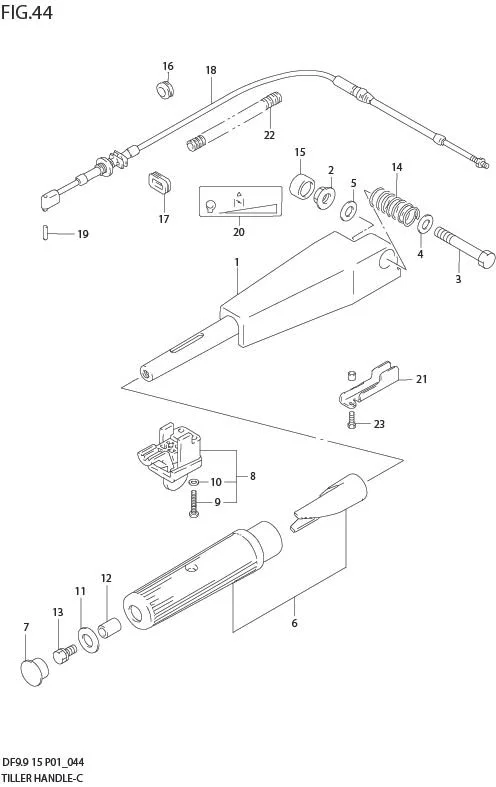

FIG 44 TILLER HANDLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	63111-93E10-0EP	HANDLE, TILLER (BLACK)	1	Rp1.068.000
2	09159-10050-000	NUT, TILLER HANDLE	1	Rp23.500
3	DISCONTINUE SUB: 09100-10208-000	BOLT, TILLER HANDLE (10X70)	1	-
4	09160-10097-000	WASHER (10.5X22X2.5)	1	Rp21.500
5	09161-10012-000	WASHER (10.5X32X1.5)	1	Rp12.500
6	63200-93E00-000	GRIP, HANDLE	1	Rp454.000
7	DISCONTINUE SUB: 63213-94400-000	CAP, STOP SWITCH	1	-
8	63240-93E00-000	ADJUSTER, HANDLE GRIP	1	Rp435.500
9	63247-93E00-000	?SCREW	2	Rp21.000
10	63248-93E10-000	?WASHER	2	Rp13.500
11	09160-08081-000	WASHER (8.5X23X1.5)	1	Rp17.500
12	09180-08173-000	SPACER, HANDLE GRIP END	1	Rp33.000
13	09117-08071-000	BOLT (8X35)	1	Rp52.000
14	DISCONTINUE SUB: 09440-22008-000	SPRING, HANDLE	1	-
15	09251-09002-000	CAP	1	Rp22.000
16	09308-08013-000	GROMMET, THROTTLE CABLE	1	Rp10.000
17	63625-94300-000	PLUG, SWITCH LEADS	1	Rp21.000	DF15R
18	63610-93E20-000	CABLE, THROTTLE	1	Rp728.500
19	63216-93E00-000	PIN, THROTTLE CABLE	1	Rp40.500
20	69714-93E11-000	MARK, ENGINE START	1	Rp34.000
21	63125-93E01-000	STOPPER, TILLER HANDLE	1	Rp63.000
22	63615-93E00-000	TUBE, THROTTLE CABLE	1	Rp21.000
23	09100-06131-000	BOLT (6X12)	1	Rp13.000
